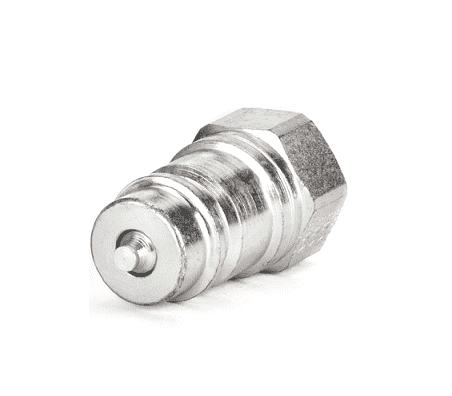

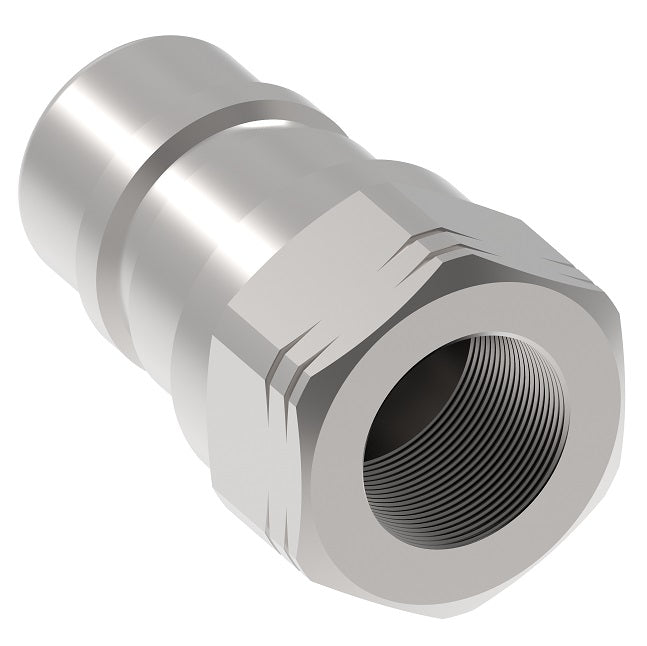

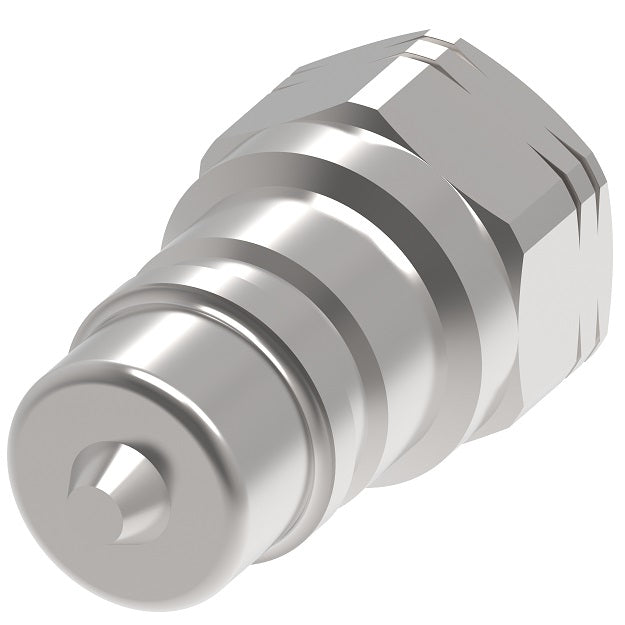

FD48-1002-04-04 Hansen® by Danfoss | Quick Disconnect Coupling | FD48 Series | 1/4" Female NPT x 1/4" Parker Bruning SM-250 Interchange | Plug | Buna-N Seal | Steel
FD48-1002-04-04 Hansen® by Danfoss | Quick Disconnect Coupling | FD48 Series | 1/4" Female NPT x 1/4" Parker Bruning SM-250 Interchange | Plug | Buna-N Seal | Steel
FD48-1002-04-04 Hansen® by Danfoss | Quick Disconnect Coupling | FD48 Series | 1/4" Female NPT x 1/4" Parker Bruning SM-250 Interchange | Plug | Buna-N Seal | Steel
FD48-1002-04-04 Hansen® by Danfoss | Quick Disconnect Coupling | FD48 Series | 1/4" Female NPT x 1/4" Parker Bruning SM-250 Interchange | Plug | Buna-N Seal | Steel

FD48-1002-04-04 Hansen® by Danfoss | Quick Disconnect Coupling | FD48 Series | 1/4" Female NPT x 1/4" Parker Bruning SM-250 Interchange | Plug | Buna-N Seal | Steel

Sale price$42.66

Hansen® by Danfoss
FD48 Series | Parker Bruning SM-250 Interchange

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD48 Series coupling is poppet style quick disconnect coupling designed to interchange with Parker Bruning SM-250 couplings where excellent high and low pressure sealing is required.

The FD48 operates with pressures up to 3,000 psi.
Buy More, Save More!
Quantity Price Each
10–39 $40.10
40–79 $36.26
80+ $32.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FD48 Series
Shape:

Straight
Product Features:
  • Self-sealing poppet valves provide excellent high and low pressure sealing.
  • PUSH-PULL™ ball latch design allows quick and easy connection and disconnection of fluid lines.
Applications & Markets:
  • Hydraulic and fluid transfer
  • Agricultural equipment
Materials:
  • Heat-treated and plated steel for wear and corrosion resistance.
  • Standard seal material: Buna-N.
  • Standard body material: High resistance carbon steel with zinc trivalent plating.
Body Size Max. Operating
Pressure		 Min. Burst
Pressure
Connected		 Vacuum
Connected Only		 Rated
Flow		 Air Inclusion Fluid
Loss
bar psi bar psi
1/4 210 bar 3.000 psi 840 bar 12,000 psi 28 in./Hg 11 lpm 3 gpm .50 cc. Max 1.10 cc. Max
Plugs (Male) (Figure 1)
Socket/Female (Figure 2)
FD48 Series | Female NPT Threaded Ends, Valved
Part Number Body Size Type Port Size Female
Thread		 Figure Dimensions
Buna-N Seal A B Hex
FD48-1002-04-04 1/4" Plug/Male 1/4" 1/4-18 Female NPT 1 1.45"
(36.8mm)		 - 0.75"
(19.0mm)
FD48-1001-04-04 1/4" Socket/Female 1/4" 1/4-18 Female NPT 2 2.01"
(51.1mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)
FD48 Series | Dust Cap/Plug
Part Number Body Size Description
FD48-1042-04 1/4" Dust Cap/Plug Combo fits both plug/male and socket/female halves.
