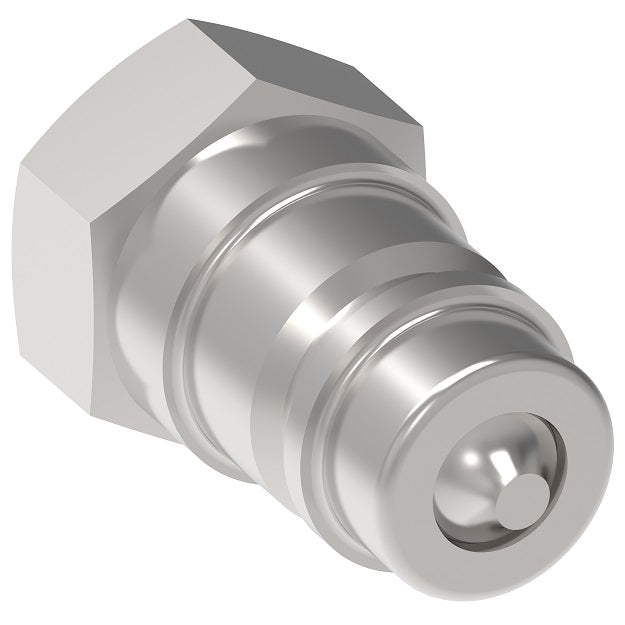

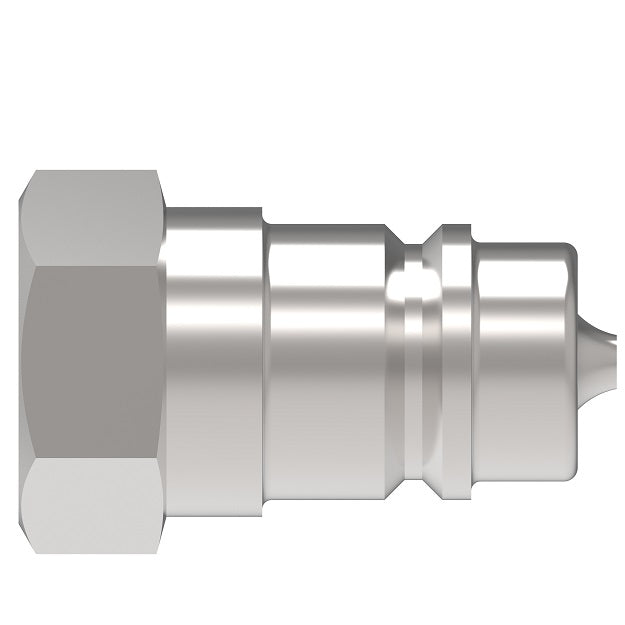

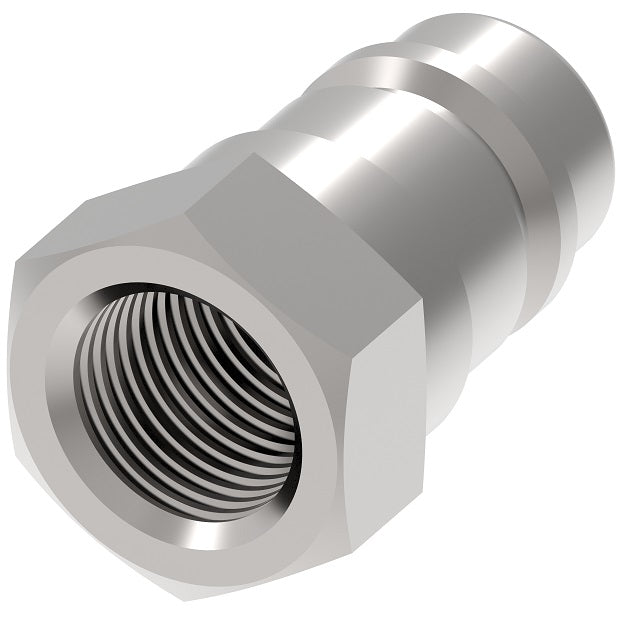

FD35-1052-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female SAE O-Ring x 3/8" High Pressure Ball Latch (125 PSI Bleed Valve) | Plug | FKM Seal | Valved | Steel
FD35-1052-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female SAE O-Ring x 3/8" High Pressure Ball Latch (125 PSI Bleed Valve) | Plug | FKM Seal | Valved | Steel
FD35-1052-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female SAE O-Ring x 3/8" High Pressure Ball Latch (125 PSI Bleed Valve) | Plug | FKM Seal | Valved | Steel

FD35-1052-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female SAE O-Ring x 3/8" High Pressure Ball Latch (125 PSI Bleed Valve) | Plug | FKM Seal | Valved | Steel

Sale price$76.12

Hansen® by Danfoss
FD35 Series | High Pressure 10,000 psi Ball Latch

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD35 Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.

Note: Incorporates a special relief valve set at 125 psi, preventing disconnected pressure build-up.
Buy More, Save More!
Quantity Price Each
10–39 $71.55
40–79 $64.70
80+ $57.09
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FD35 Series
Shape:

Straight
Product Features:
  • Safety sleeve lock prevents accidental disconnection.
  • Heavy duty back-up ring prevents O-Ring extrusion.
  • Self-sealing poppet valves provide excellent high-and low-pressure sealing.
Applications & Markets:
  • 10,000 psi Hydraulic Applications
  • Hydraulic Tool
  • Hydraulic Ram and Work Loading
Materials:
  • Standard body material: High-resistance carbon steel with zinc trivalent plating.
  • Standard seal materials: FKM
  • Heat-treated and plated steel for greater wear and corrosion resistance.
Body Size Max. Operating Pressure Min. Burst Pressure Vacuum
Connected Only		 Rated Flow Air Inclusion Fluid Loss
3/8" 700 bar 10,000 psi 2,800 bar 40,000 psi 28 in.Hg 8 lmp 2 gpm 0.50 cc. max 0.50 cc. max
Socket/Female (Figure 1)
Plug/Male (Figure 2)
Complete (Figure 3)
Dimensions (Female SAE O-Ring, 125 PSI Bleed Valve)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Figure Dimensions
FKM A B Hex
FD35-1052-06-06 Plug/Male 3/8" 9/16" 9/16-18 Female SAE O-Ring Boss 1 2.12"
(53.8mm)		 - 0.94"
(23.9mm)
Dust Cap & Dust Plug Combo
FD35-1042-06 Dust Cap/Plug 3/8"
