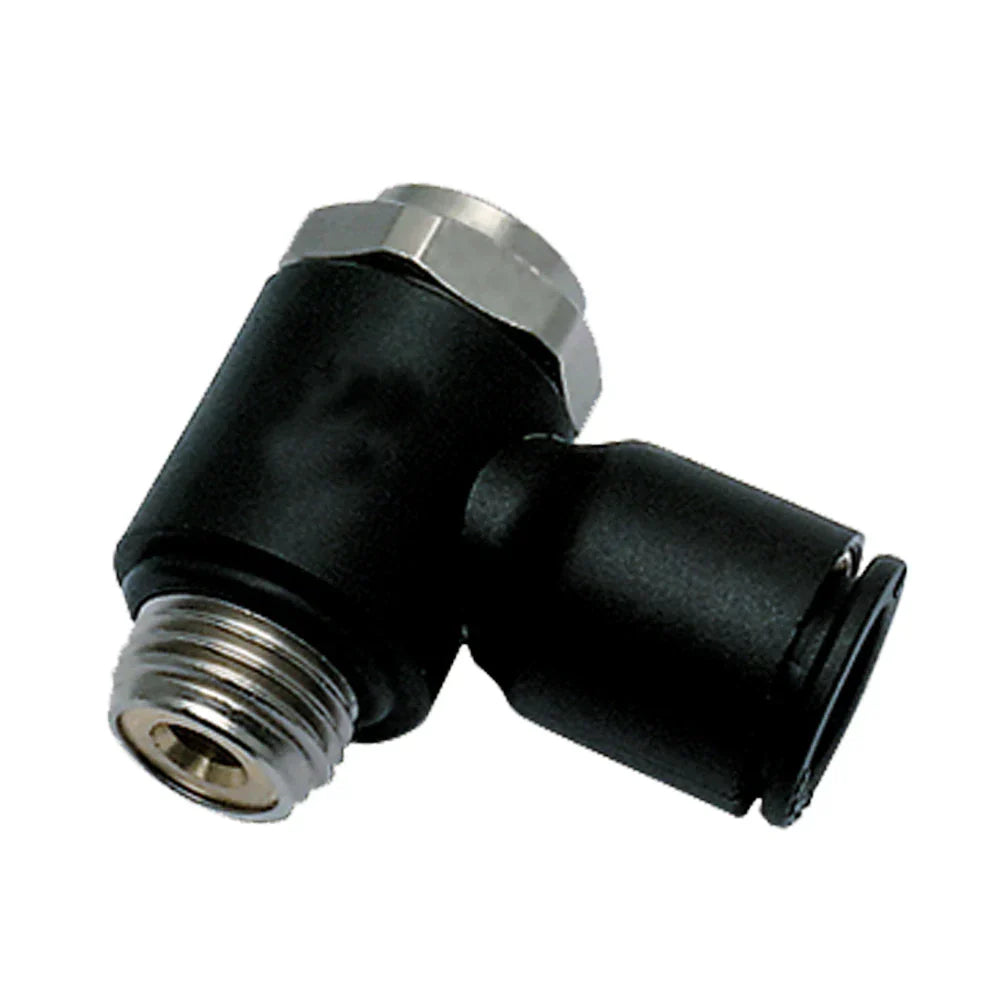

FCKCB731-8M-6G by Parker | Compact Flow Controls | 8 mm Push-to-Connect x 3/8" Male BSPP Thread | 20 mm Hex | 90° Elbow | Composite Polymer | Pack of 10
by Parker Hannifin
Compact Flow Controls:FCKCB731 Knobless Bi-directional Flow Control - BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $210.09 |
| 30–59 | $189.98 |
| 60+ | $167.63 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | +32° to +158° F (0 to +70° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP / M5 | Hex 1 | H | L |
| FCKCB731-4M-M5 | 4 mm | M5X0.8 | 8 mm | 17.5 mm | 17 mm |
| FCKCB731-4M-2G | 4 mm | 1/8" | 13 mm | 25.0 mm | 19 mm |
| FCKCB731-6M-M5 | 6 mm | M5X0.8 | 8 mm | 17.5 mm | 19 mm |
| FCKCB731-6M-2G | 6 mm | 1/8" | 13 mm | 25.0 mm | 21 mm |
| FCKCB731-6M-4G | 6 mm | 1/4" | 17 mm | 26.5 mm | 22 mm |
| FCKCB731-8M-2G | 8 mm | 1/8" | 13 mm | 25.0 mm | 26 mm |
| FCKCB731-8M-4G | 8 mm | 1/4" | 17 mm | 26.5 mm | 27 mm |
| FCKCB731-8M-6G | 8 mm | 3/8" | 20 mm | 37.5 mm | 29 mm |
