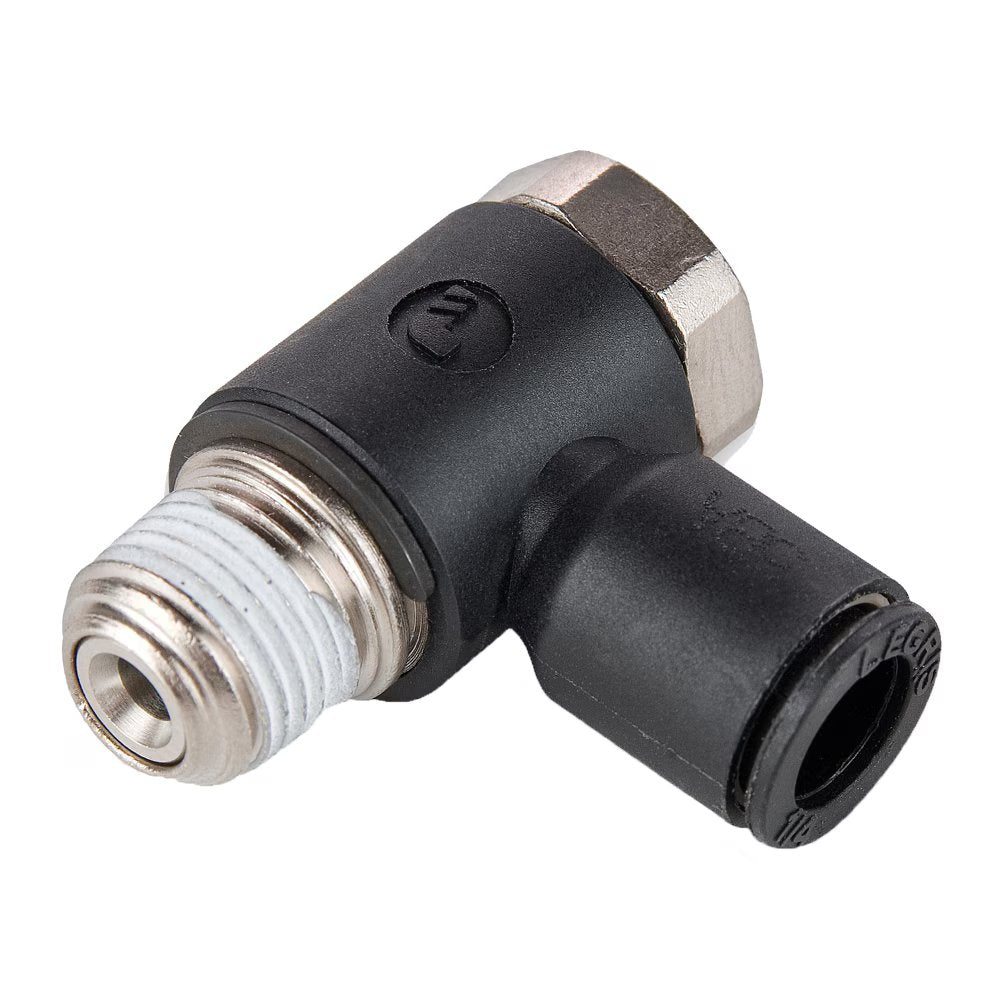

FCKC731-6-4 by Parker | Compact Flow Controls | 3/8" Push-to-Connect x 1/4" Male NPT Threat | 17 mm Hex | 90° Elbow | Composite Polymer | Pack of 5
by Parker Hannifin
Compact Flow Controls:FCKC731 Knobless Meter Out Flow Control
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $175.88 |
| 30–59 | $159.04 |
| 60+ | $140.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | +32° to +158° F (0 to +70° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | NPT / UNF | Hex 1 | H | L |
| FCKC731-2-0 | 1/8" | 10-32" | - | .69" | .65" |
| FCKC731-2-2 | 1/8" | 1/8" | 13 mm | .79" | .75" |
| FCKC731-4M-0 | 5/32" | 10-32" | - | .69" | .65" |
| FCKC731-4M-2 | 5/32" | 1/8" | 13 mm | .79" | .75" |
| FCKC731-4-0 | 1/4" | 10-32" | - | .69" | .77" |
| FCKC731-4-2 | 1/4" | 1/8" | 13 mm | .79" | .85" |
| FCKC731-4-4 | 1/4" | 1/4" | 17 mm | 1.04" | .89" |
| FCKC731-8M-2 | 5/16" | 1/8" | 13 mm | .79" | 1.02" |
| FCKC731-8M-4 | 5/16" | 1/4" | 17 mm | 1.04" | 1.06" |
| FCKC731-6-4 | 3/8" | 1/4" | 17 mm | 1.04" | 1.14" |
| FCKC731-6-6 | 3/8" | 3/8" | 20 mm | 1.14" | 1.36" |
