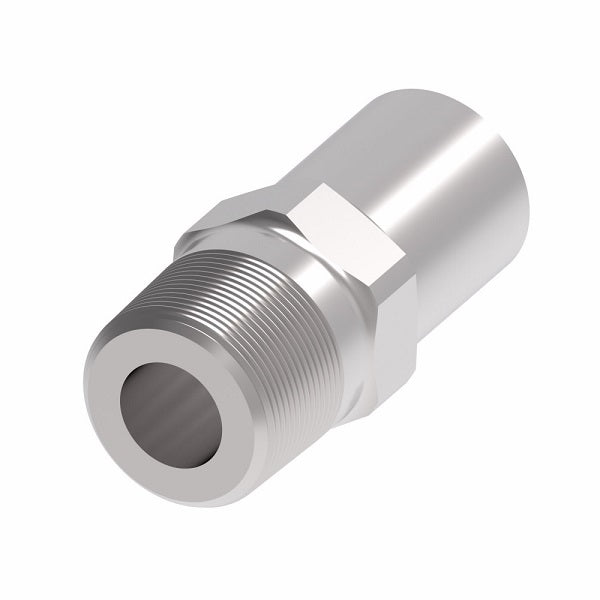

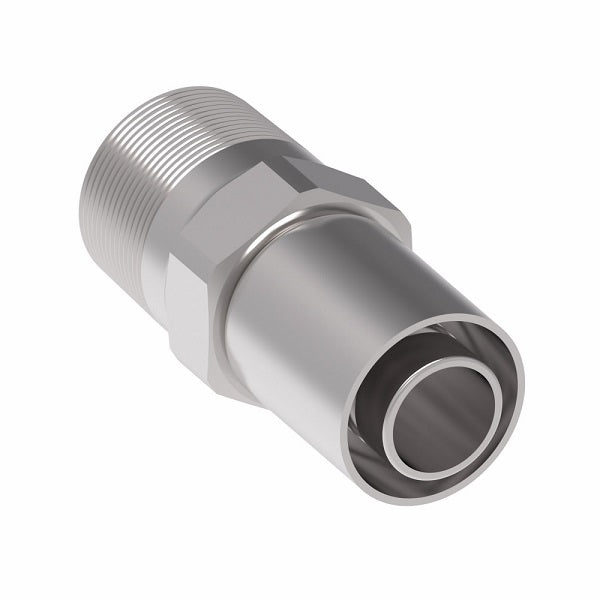

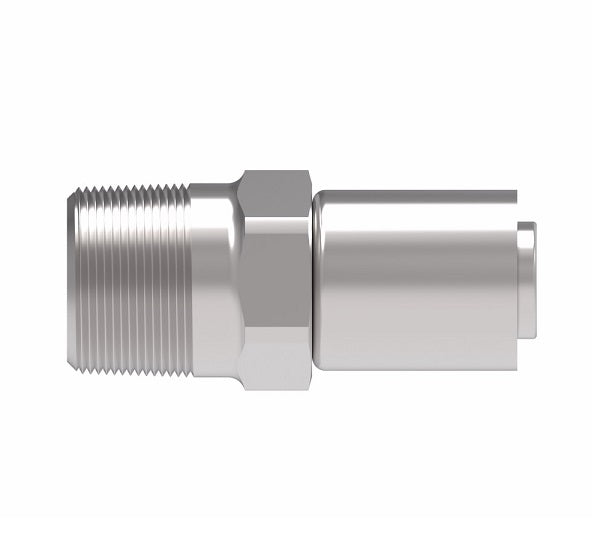

FC9846-0606-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Male Pipe x -06 Hose Barb | Stainless Steel
Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Stainless Steel
FC Series
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $64.52 |
| 40–79 | $58.34 |
| 80+ | $51.48 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Component Part Numbers |
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number |
Socket Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
|
| - | - | FC3596-04C | 1/8-27 | -04 | 1.25" | 0.66" | 0.12" | 7/16" | |
| FC9846-0404-333 | FC3680-0404-329 | FC3596-04C | 1/4-18 | -04 | 1.50" | 0.91" | 0.12" | 9/16" | |
| - | - | FC3443-04C | 1/4-18 | -05 | 1.40" | 0.91" | 0.19" | 9/16" | |
| FC9846-0406-333 | FC3680-0406-329 | FC3443-05C | 1/4-18 | -06 | 1.40" | 0.91" | 0.25" | 9/16" | |
| FC9846-0606-333 | FC3680-0606-329 | FC3443-05C | 3/8-18 | -06 | 1.40" | 0.91" | 0.25" | 11/16" | |
| - | - | FC3596-08C | 3/8-18 | -08 | 1.80" | 0.91" | 0.34" | 11/16" | |
| - | FC3680-0810-329 | FC3443-08C | 1-1/2-14 | -10 | 2.04" | 1.16" | 0.44" | 7/8" | |
| FC9846-1212-333 | FC3680-1212-329 | FC3596-12C | 3/4-14 | -12 | 2.04" | 1.16" | 0.56" | 1-1/16" | |
| FC9846-1616-333 | FC3680-1616-329 | FC3596-16C | 1-11-1/2 | -16 | 2.32" | 1.44" | 0.80" | 1-3/8" | |
* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
