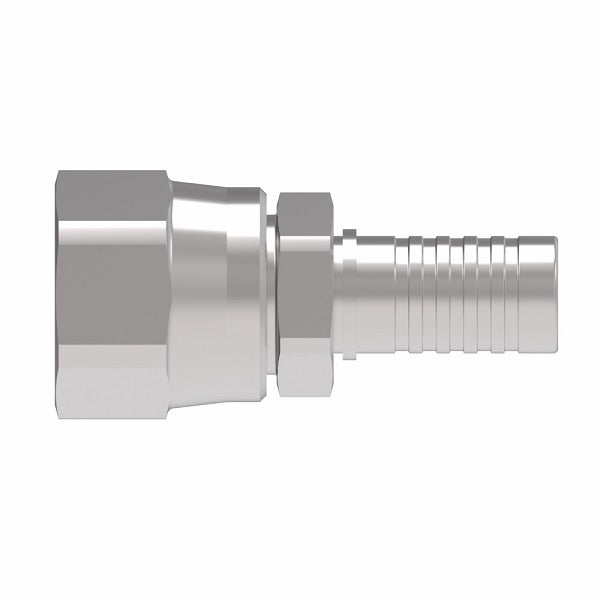

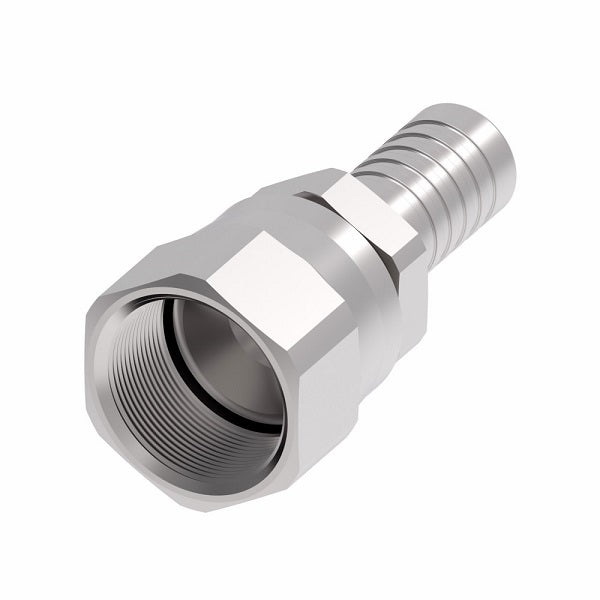

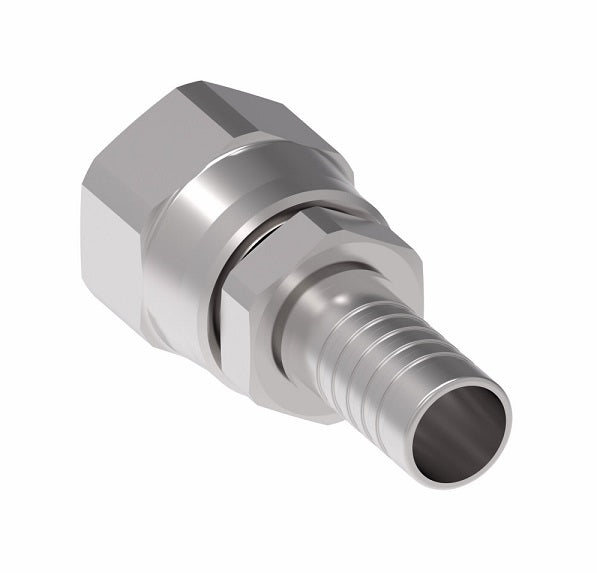

FC8779-1212-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -12 Female 37° JIC Swivel x -12 Hose Barb | Stainless Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Component Part Numbers
|
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number |
Socket Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| FC9779-0404-333 | FC8779-0404-333 | FC3596-04C | 7/16-20 | -04 | 1.55" | 0.96" | 0.12" | 9/16" | 7/16" |
| - | FC8779-0505-333 | FC3443-04C | 1/2-20 | -05 | 1.50" | 1.01" | 0.19" | 5/8" | 1/2" |
| FC9779-0606-333 | FC8779-0606-333 | FC3443-05C | 9/16-18 | -06 | 1.60" | 1.11" | 0.25" | 11/16" | 9/16" |
| FC9779-0808-333 | FC8779-0808-333 | FC3596-08C | 3/4-16 | -08 | 2.10" | 1.21" | 0.34" | 7/8" | 11/16" |
| FC9779-1010-333 | FC8779-1010-333 | FC3443-08C | 7/8-14 | -10 | 2.21" | 1.32" | 0.44" | 1" | 13/16" |
| FC9779-1212-333 | FC8779-1212-333 | FC3596-12C | 1-5/16-12 | -12 | 2.29" | 1.41" | 0.56" | 1-1/4" | 1" |
| FC9779-1616-333 | FC8779-1616-333 | FC3596-16C | 1-5/16-12 | -16" | 2.52" | 1.64" | 0.80" | 1-1/2" | 1-1/4" |
* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
