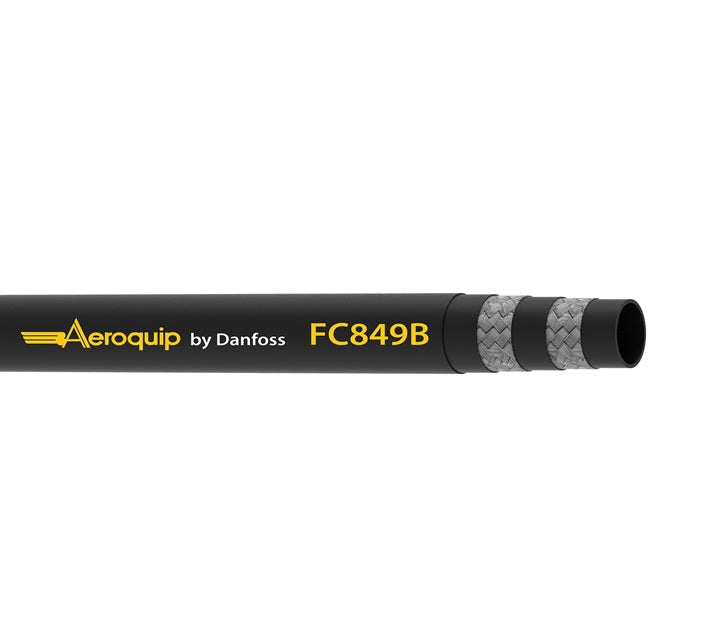

FC849B-12 Aeroquip by Danfoss | BRUISER 4000 PSI Constant Pressure Ultra Abrasion Resistant Double-Wire Braid Hydraulic Hose | SAE 100R19 | 0.75" ID
Minimum Order Quantity: 250 Units
Aeroquip® by Danfoss
FC849B Series | BRUISER 4000 PSI Constant Pressure Ultra Abrasion Resistant Double-Wire Braid Hydraulic Hose
Recommended for use on critical applications in construction, forestry, and other off-highway vehicles.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $22.49 |
| 40–79 | $20.34 |
| 80+ | $17.95 |
Product Data:
4000
| Hose Properties: | |||
|---|---|---|---|
| Application: | High abrasion industrial and hydraulic system applications with petroleum and water-based fluids. | SAE Rating: | Meets or exceeds: SAE 100R19 |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Double-Wire Braid | Cover: | Synthetic Rubber Intermediate Cover and BRUISER Outer |
| Temperature Range: | -40°F to +212°F (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC849B-04 | 6 | 6,4mm | 0.25" | 15,2mm | 0.60" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 50,8mm | 2.00" | 0,36 kg/m | 0.24 lbs/ft |
| FC849B-06 | 10 | 9,7mm | 0.38" | 19,3mm | 0.76" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 63,5mm | 2.50" | 0,54 kg/m | 0.36 lbs/ft |
| FC849B-08 | 12 | 12,7mm | 0.50" | 22,6mm | 0.89" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 88,9mm | 3.50" | 0,64 kg/m | 0.43 lbs/ft |
| FC849B-10 | 16 | 16,0mm | 0.63" | 25,7mm | 1.01" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 101,6mm | 4.00" | 0,90 kg/m | 0.60 lbs/ft |
| FC849B-12 | 19 | 19,1mm | 0.75" | 30,0mm | 1.18" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 120,7mm | 4.75" | 1,07 kg/m | 0.72 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
