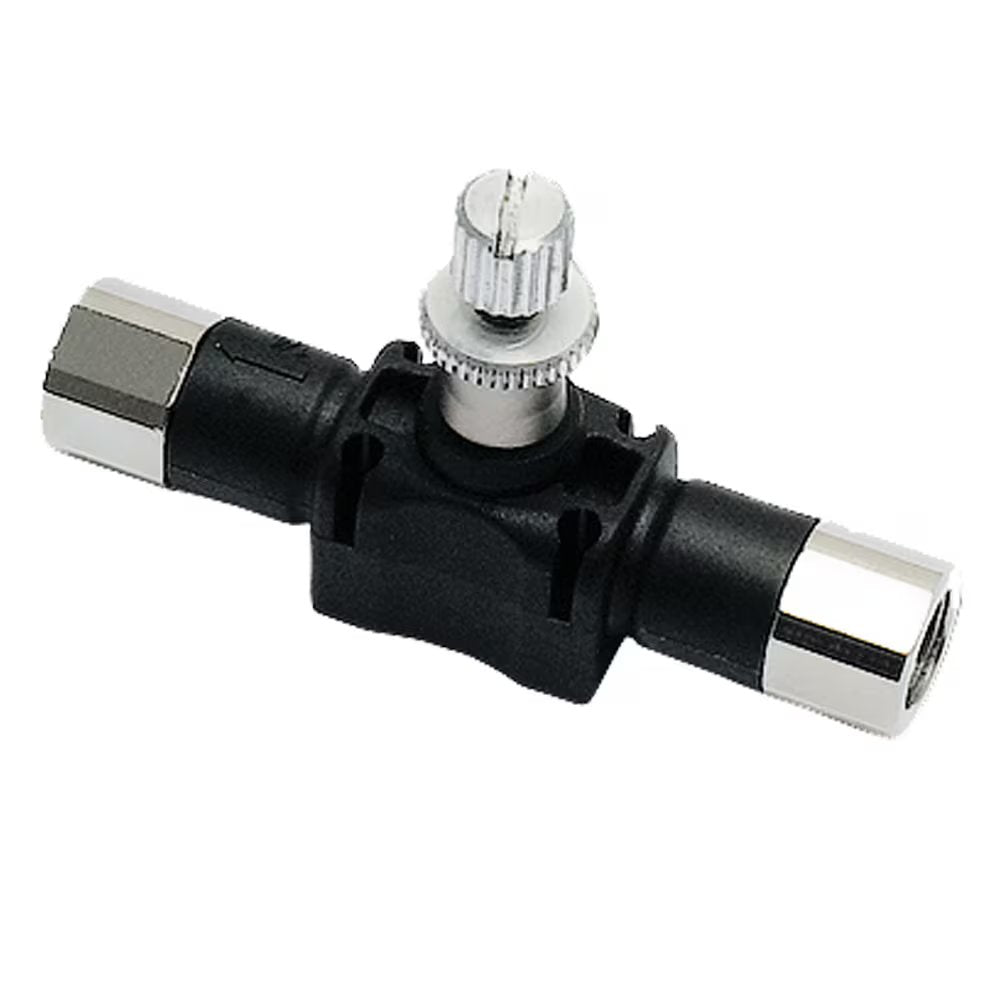

FC836-2 by Parker | Threaded In-Line Flow Control | 1/8" Female NPT Thread x 1/8" Female NPT Thread | 2.70" Length | 1.75" Width | Straight | Glass-Reinforced Nylon | Pack of 5
by Parker Hannifin
In-Line Flow Controls:FC836 Threaded In-Line Flow Control
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $209.73 |
| 30–59 | $189.65 |
| 60+ | $167.34 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | +32° to +158° F (0 to +70° C) |
| Compatible Tubing: |
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | NPT | Hex 1 | Hex 2 | H Closed | H Open | K | L | L1 | N1 | N2 | T |
| FC836-2 | 1/8" | 13 mm | 8.00 mm | 1.56" | 1.75" | .67" | 2.70" | .91" | .43 | .67 | .12 |
| FC836-4 | 1/4" | 16 mm | 11.00 mm | 1.73" | 1.97" | .73" | 3.27" | 1.02" | .49 | .79 | .12 |
| FC836-6 | 3/8" | 22 mm | 14.00 mm | 2.05" | 2.40" | .94" | 3.82" | 1.30" | .63 | 1.02 | .16 |
| FC836-8 | 1/2" | 24 mm | 14.00 mm | 2.26" | 2.66" | 1.10" | 4.76" | 1.38" | .79 | 1.08 | .16 |
