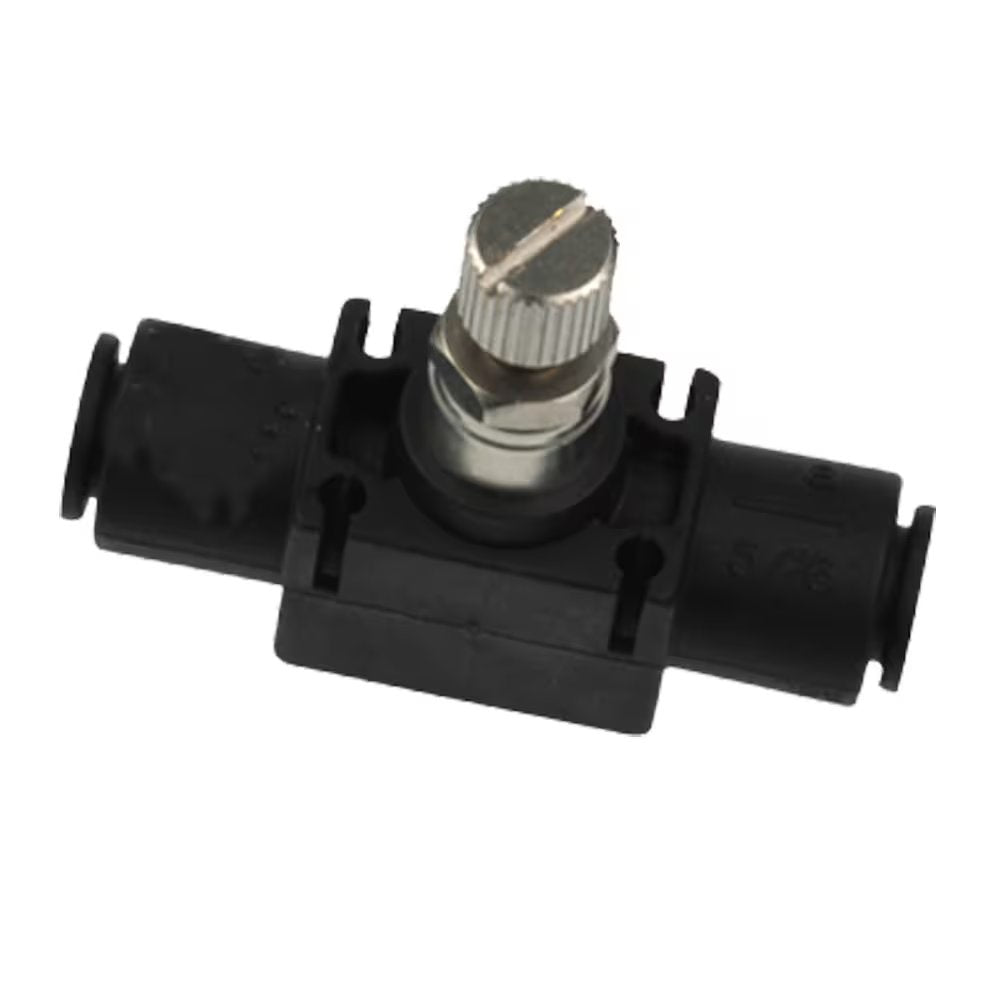

FC832-4 by Parker | In-Line Flow Controls | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 2.00" Length | 1.74" Width | Straight | Glass-Reinforced Nylon | Pack of 5

FC832-4 by Parker | In-Line Flow Controls | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 2.00" Length | 1.74" Width | Straight | Glass-Reinforced Nylon | Pack of 5

Sale price$197.53

by Parker Hannifin
In-Line Flow Controls:FC832 In-Line Flow Control

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $185.68
30–59 $167.90
60+ $148.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC832 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size Hex H Closed H Open K L L1 N1 N2 T
FC832-4 1/4" 8 mm 1.54" 1.74" .66" 2.00" .90" .43" .66" .12"
FC832-6 3/8" 14 mm 2.03" 2.38" .94" 2.87" 1.29" .62" 1.01" .16"
FC832-8 1/2" 14 mm 2.24" 2.63" 1.09" 3.35" 1.37" .78" 1.07" .16"
