Sale price$155.40

Aeroquip® by Danfoss

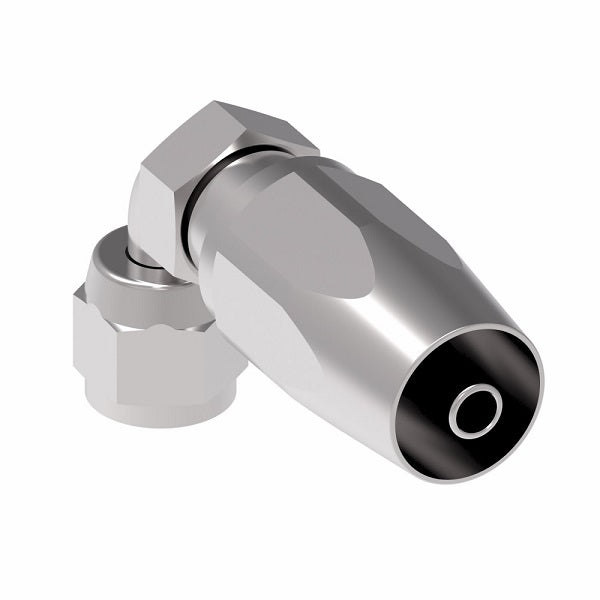

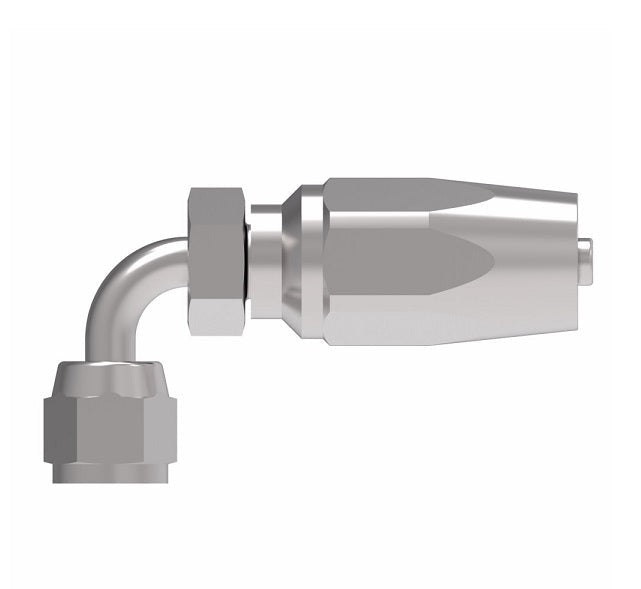

1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $146.08
20–59 $132.09
60+ $116.55
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Female JIC
  • 3/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ HØ
FC7992-0404S -04 7/16-20 2.26" 1.22" 0.17" 0.68"
FC7992-0606S -06 9/16-18 2.65" 1.52" 0.31" 0.85"
FC7992-0808S -08 3/4-16 3.00" 1.54" 0.39" 1.09"
FC7992-1212S -12 1-1/16-12 4.05" 2.45" 0.61" 1.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
