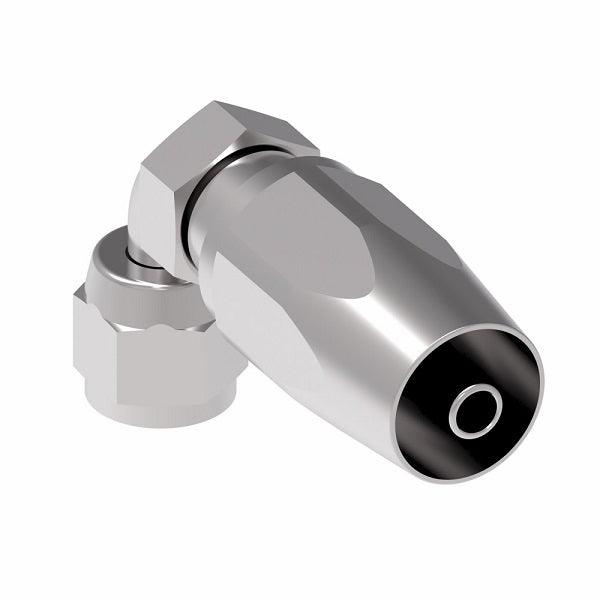

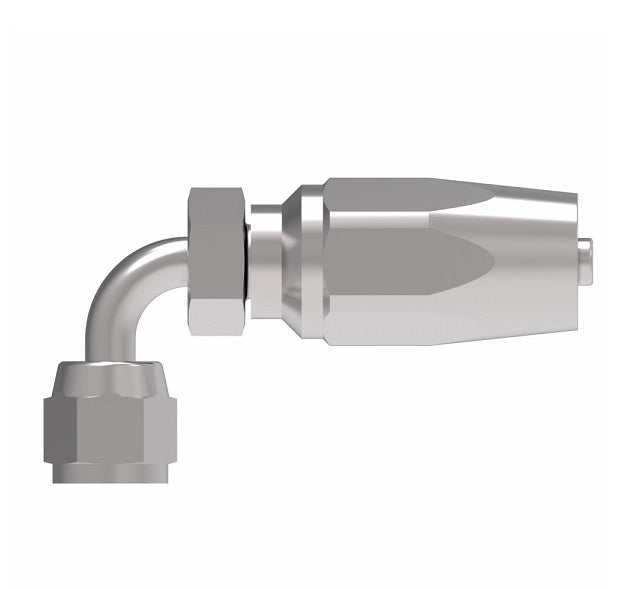

FC7992-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10
FC7992-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10
FC7992-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

FC7992-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

Sale price$1,588.60

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ HØ
FC7992-0404S -04 7/16-20 2.26" 1.22" 0.17" 0.68"
FC7992-0606S -06 9/16-18 2.65" 1.52" 0.31" 0.85"
FC7992-0808S -08 3/4-16 3.00" 1.54" 0.39" 1.09"
FC7992-1212S -12 1-1/16-12 4.05" 2.45" 0.61" 1.82"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
