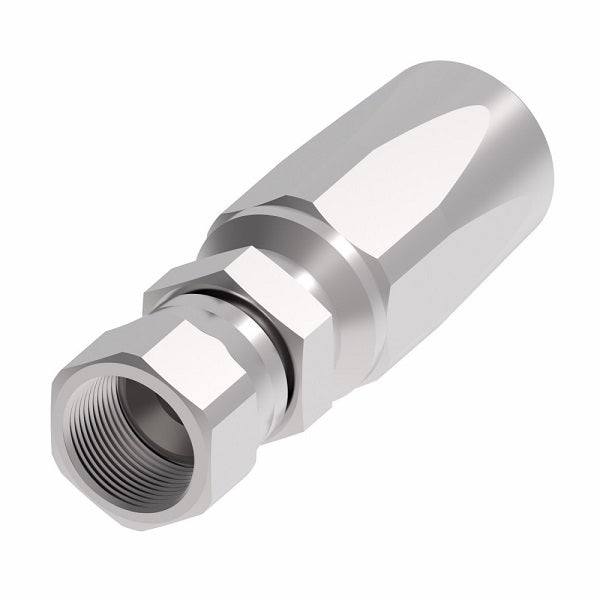

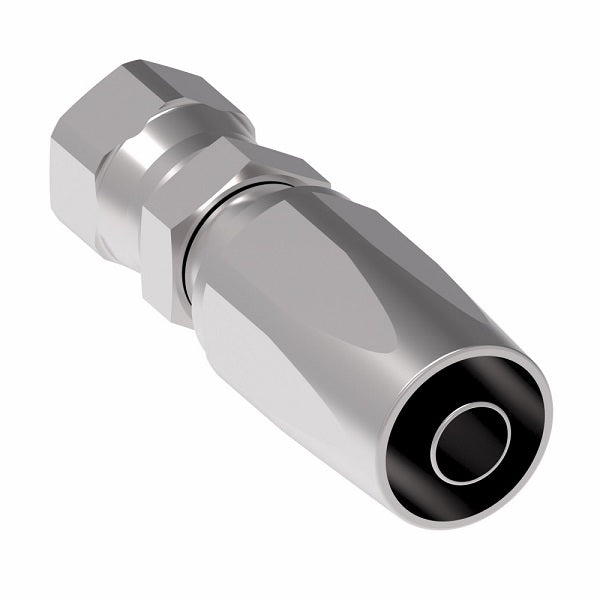

FC7988-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $58.13 |
| 40–79 | $52.56 |
| 80+ | $46.38 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | |
| FC7988-0404S | -04 | 7/16-20 | 2.50" | 1.46" | 0.17" | |
| FC7988-0604S | -04 | 9/16-18 | 2.64" | 1.60" | 0.17" | |
| FC7988-0606S | -06 | 9/16-18 | 2.91" | 1.78" | 0.31" | |
| FC7988-0806S | -06 | 3/4-16 | 3.04" | 1.9" | 0.31" | |
| FC7988-0808S | -08 | 3/4-16 | 3.18" | 1.70" | 0.39" | |
| FC7988-1008S | -08 | 7/8-14 | 3.30" | 1.82" | 0.39" | |
| FC7988-1212S | -12 | 1-1/16-12 | 3.80" | 2.20" | 0.61" | |
| FC7988-1616S | -16 | 1-5/16-12 | 4.33" | 2.21" | 0.82" | |
