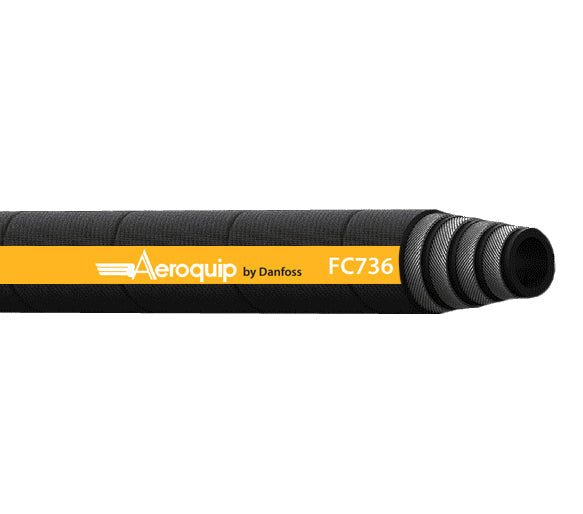

FC736-06 Aeroquip by Danfoss | BRUISER 4S Ultra Abrasion Resistant 4-Spiral Wire Hydraulic Hose | SAE 100R12 | 0.38" ID
Minimum Order Quantity: 400 Units
Aeroquip® by Danfoss
FC736 Series | BRUISER 4S Ultra Abrasion Resistant 4-Spiral Wire Hydraulic Hose
Recommended for critical applications in construction, forestry, and other off-highway vehicles.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $22.96 |
| 40–79 | $20.77 |
| 80+ | $18.32 |
Product Data:
5500
| Hose Properties: | |||
|---|---|---|---|
| Application: | High abrasion industrial and hydraulic system applications with petroleum and water-based fluids. | SAE Rating: | Meets or exceeds: SAE 100R12, ISO 18752, EN 856 Type R12 performance. |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire | Cover: | Synthetic rubber intermediate cover and BRUISER™ outer cover. BRUISER™ outer cover offers unmatched abrasion, chemical and environmental protection. |
| Temperature Range: | -40°F to +250°F (-40°C to +121°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC736-06 | 10 | 9,5mm | 0.38" | 20,2mm | 0.80" | 380 bar | 5500 psi | 1520 bar | 22000 psi | 125mm | 4.92" | 0,71 kg/m | 0.48 lbs/ft |
| FC736-08 | 12 | 12,7mm | 0.50" | 23,6mm | 0.93" | 345 bar | 5000 psi | 1380 bar | 20000 psi | 180mm | 7.09" | 0,83 kg/m | 0.56 lbs/ft |
| FC736-10 | 16 | 15,9mm | 0.62" | 27,4mm | 1.08" | 345 bar | 5000 psi | 1380 bar | 20000 psi | 200mm | 7.87" | 0,98 kg/m | 0.66 lbs/ft |
| FC736-12 | 19 | 19,0mm | 0.75" | 30,7mm | 1.21" | 280 bar | 4050 psi | 1120 bar | 16200 psi | 240mm | 9.45" | 1,32 kg/m | 0.89 lbs/ft |
| FC736-16 | 25 | 25,4mm | 1.00" | 37,9mm | 1.49" | 280 bar | 4050 psi | 1120 bar | 16200 psi | 300mm | 11.81" | 1,75 kg/m | 1.18 lbs/ft |
| FC736-20 | 31 | 31,8mm | 1.25" | 46,6mm | 1.84" | 210 bar | 3050 psi | 840 bar | 12200 psi | 420mm | 16.54" | 2,36 kg/m | 1.59 lbs/ft |
| FC736-24 | 38 | 38,1mm | 1.50" | 53,9mm | 2.12" | 175 bar | 2550 psi | 700 bar | 10200 psi | 500mm | 19.68" | 3,00 kg/m | 2.01 lbs/ft |
| FC736-32 | 51 | 50,8mm | 2.00" | 66,8mm | 2.63" | 175 bar | 2550 psi | 700 bar | 10200 psi | 640mm | 25.2" | 4,37 kg/m | 2.94 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
