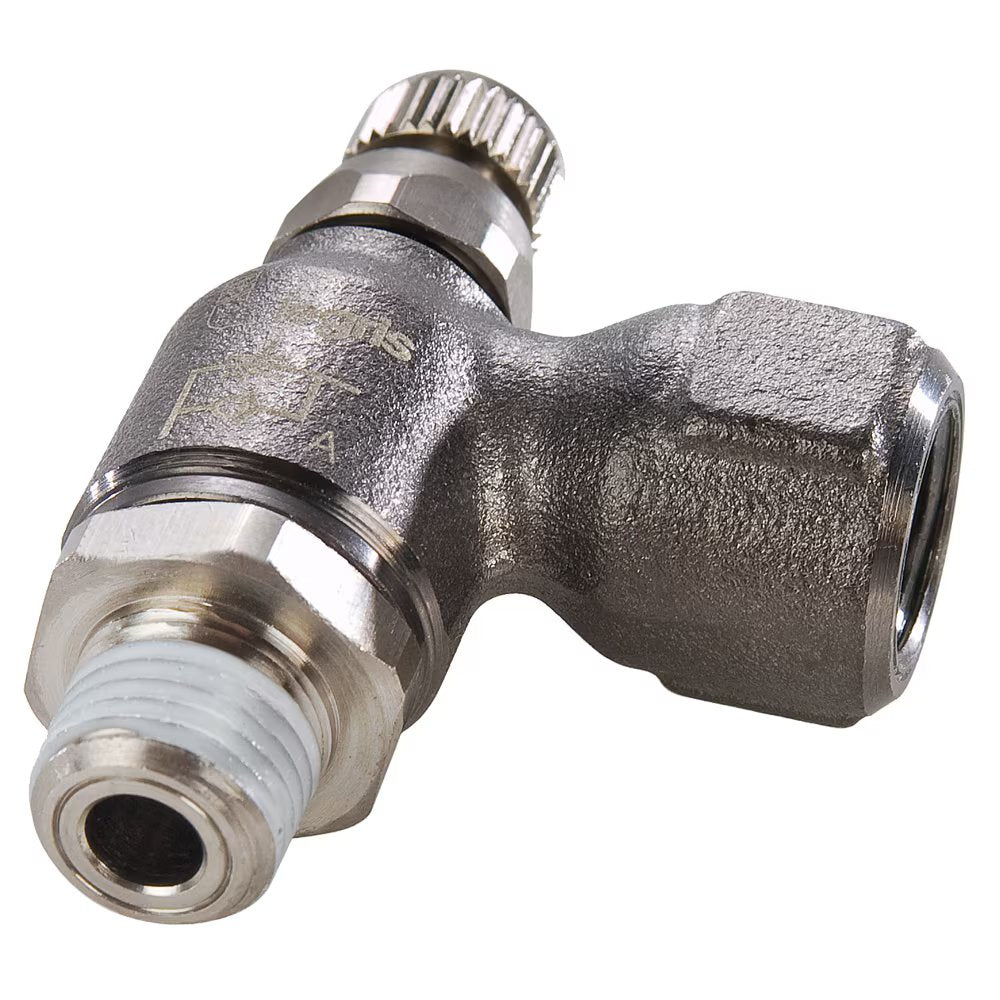

FC708-2 by Parker | Threaded Port Meter Out Flow Control | 1/8" Female NPT x 1/8" Male NPT Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

FC708-2 by Parker | Threaded Port Meter Out Flow Control | 1/8" Female NPT x 1/8" Male NPT Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

Sale price$223.58

by Parker Hannifin
Metal Flow Controls:FC708 Threaded Port Meter Out Flow Control

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $210.17
30–59 $190.04
60+ $167.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC708 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/8in Female NPT
  • 1/8in Male NPT
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number NPT Hex 1 Hex 2 H Closed H Open L
FC708-2 1/8" 19 mm 10 mm 1.79" 2.01" .89"
FC708-4 1/4" 19 mm 14 mm 1.91" 2.11" 1.28"
FC708-8 1/2" 25 mm 17 mm 2.15" 2.40" 1.50"
