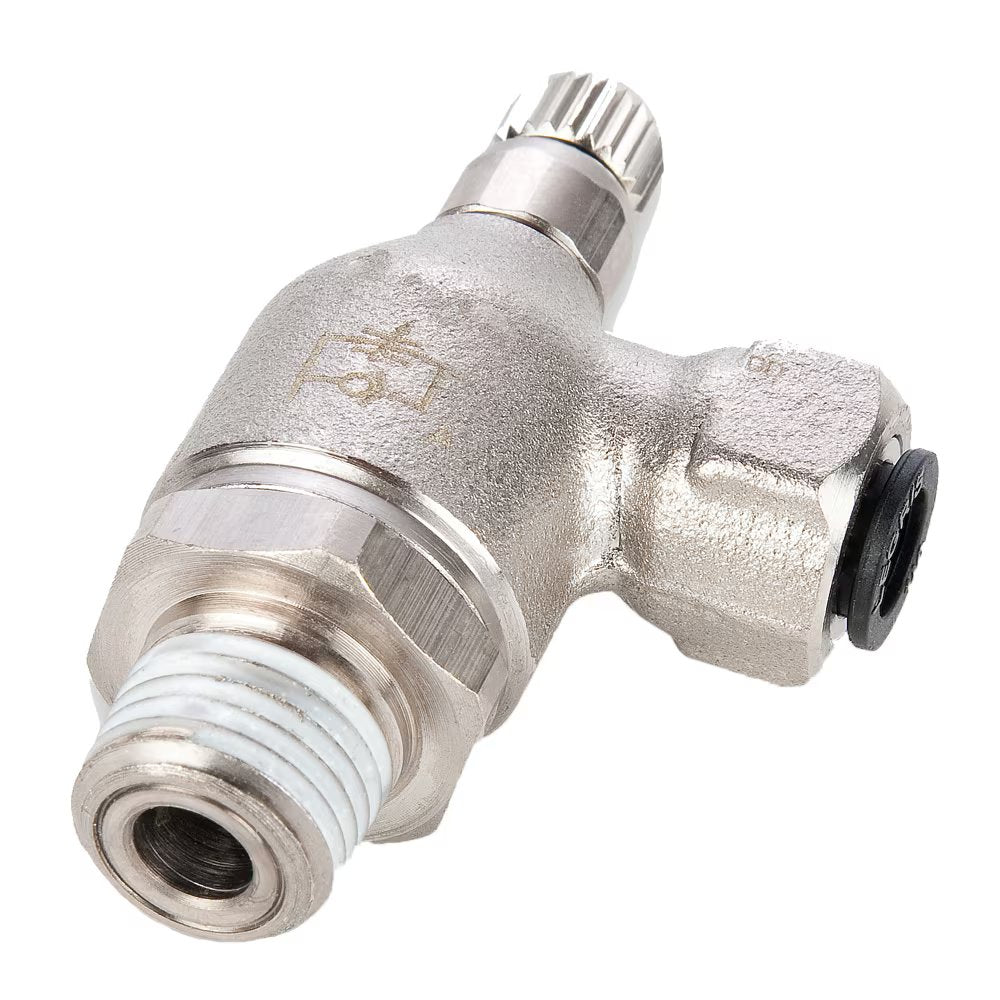

FC705-6-4 by Parker | Push-to-Connect Meter Out Metal Flow Control | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 19mm Height | 90° Elbow | Nickel Plated Brass

FC705-6-4 by Parker | Push-to-Connect Meter Out Metal Flow Control | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 19mm Height | 90° Elbow | Nickel Plated Brass

Sale price$58.70

by Parker Hannifin
Metal Flow Controls:FC705 Push-to-Connect Meter Out Metal Flow Control
Buy More, Save More!
Quantity Price Each
20–39 $55.18
40–79 $49.90
80+ $44.03
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC705 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Push-to-Connect
  • 1/4in Male NPT
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size NPT Hex 1 Hex 2 H Closed H Open L
FC705-4-2 1/4" 1/8" 19 mm 10 mm 1.79" 2.01" .97"
FC705-4-4 1/4" 1/4" 19 mm 10 mm 1.79" 2.01" .97"
FC705-6-4 3/8" 1/4" 19 mm 14 mm 1.91" 2.11" 1.14"
FC705-6-6 3/8" 3/8" 25 mm 17 mm 2.15" 2.40" 1.40"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
