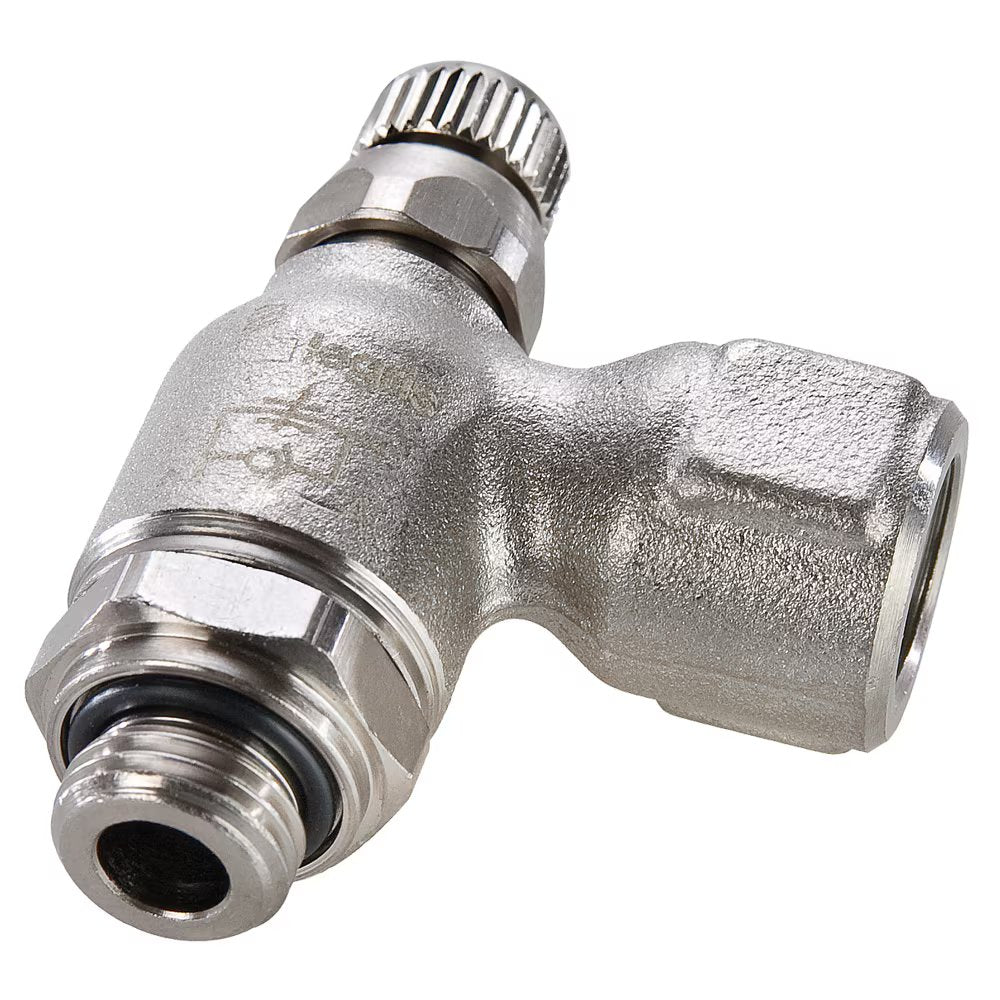

FC702-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female BSPP x 1/2" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

FC702-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female BSPP x 1/2" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

Sale price$72.31

by Parker Hannifin
Metal Flow Controls:FC702 Threaded Port Meter Out Metal Flow Control - BSPP
Buy More, Save More!
Quantity Price Each
20–39 $67.97
40–79 $61.46
80+ $54.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC702 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Male BSPP
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number BSPP Hex 1 Hex 2 H Closed H Open L
FC702-2G 1/8" 10 mm 19 mm 47.0 mm 52.5 mm 22.5 mm
FC702-4G 1/4" 14 mm 19 mm 50.5 mm 55.5 mm 32.0 mm
FC702-6G 3/8" 17 mm 25 mm 56.0 mm 62.0 mm 34.5 mm
FC702-8G 1/2" 17 mm 25 mm 55.0 mm 62.0 mm 37.5 mm
