FC693-06 Aeroquip by Danfoss | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | 0.38" ID
Aeroquip® by Danfoss

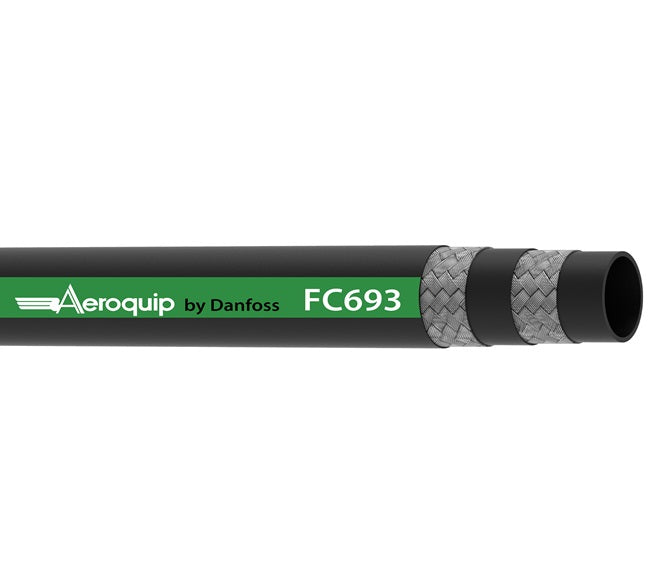

FC693 Series | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.73 |
| 40–79 | $18.74 |
| 80+ | $16.54 |
Product Data:
4000
| Hose Properties: | |||
|---|---|---|---|
| Application: | Ground support equipment (GSE), industrial phosphate ester-based fluids, water glycol systems. | SAE Rating: | N/A |
| Other Ratings: | N/A | Tube: | EPDM Rubber |
| Reinforcement: | Double Wire Braid | Cover: | Green EPDM Rubber |
| Temperature Range: | -40°F to +175°F (-40°C to +75°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC693-04 | 6 | 6,4mm | 0.25" | 15,2mm | 0.60" | 350,0 bar | 5000 psi | 1400,0 bar | 20000 psi | 101,6mm | 4.00" | 0,37 kg/m | 0.25 lbs/ft |
| FC693-06 | 10 | 9,7mm | 0.38" | 19,1mm | 0.75" | 280,0 bar | 4000 psi | 1120,0 bar | 16000 psi | 127,0mm | 5.00" | 0,54 kg/m | 0.36 lbs/ft |
| FC693-08 | 12 | 12,7mm | 0.50" | 22,1mm | 0.87" | 245,0 bar | 3500 psi | 980,0 bar | 14000 psi | 177,8mm | 7.00" | 0,60 kg/m | 0.40 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
