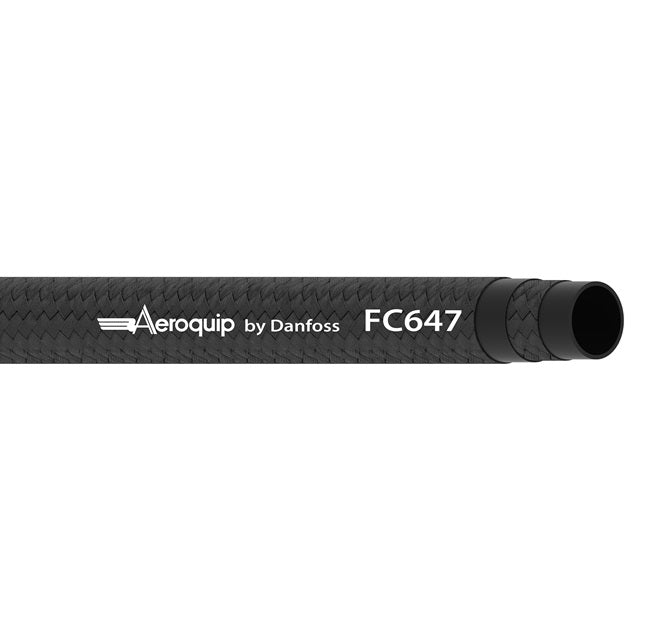

FC647-10BLK Aeroquip by Danfoss | Low Pressure SOCKETLESS™ Textile Braided Hose | 0.63" ID | Black
Aeroquip® by Danfoss
FC647 Series | Low Pressure SOCKETLESS™ Textile Braided General Purpose Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.22 |
| 40–79 | $11.05 |
| 80+ | $9.75 |
Product Data:
250
| Hose Properties: | |||
|---|---|---|---|
| Application: | For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications. Not approved for air brake applications. |
Other Ratings: | N/A |
| Tube: | Synthetic Rubber | Cover: | Polyester Braided |
| Reinforcement: | Textile Braid | Temperature Range: | -40°F to +212°F (-40°C to +100°C) Water not to exceed +150°F (+66°C). Air not to exceed +165°F (+74°C). |
| Part Number Black |
Part Number Green |
Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | ft | in/Hg | ||
| FC647-04BLK | - | 6 | 6,4mm | 0.25" | 13,2mm | 0.52" | 25,0 bar | 360 psi | 99,0 bar | 1440 psi | 76,2mm | 3.00" | 94,8 kPa | 28 in/Hg | 0,09 kg/m | 0.06 lbs/ft |
| FC647-06BLK | FC647-06GRN | 10 | 9,7mm | 0.38" | 16,8mm | 0.66" | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 76,2mm | 3.00" | 94,8 kPa | 28 in/Hg | 0,15 kg/m | 0.09 lbs/ft |
| FC647-08BLK | FC647-08GRN | 13 | 12,7mm | 0.50" | 20,1mm | 0.79" | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 127,0mm | 5.00" | 94,8 kPa | 28 in/Hg | 0,18 kg/m | 0.12 lbs/ft |
| FC647-10BLK | FC647-10GRN | 16 | 16,0mm | 0.63" | 23,4mm | 0.92" | 17,0 bar | 250 psi | 70,0 bar | 1000 psi | 152,4mm | 6.00" | 60,9 kPa | 18 in/Hg | 0,24 kg/m | 0.16 lbs/ft |
| FC647-12BLK | FC647-12GRN | 19 | 19,1mm | 0.75" | 26,7mm | 1.05" | 17,0 bar | 250 psi | 70,0 bar | 1000 psi | 177,8mm | 7.00" | 60,9 kPa | 18 in/Hg | 0,27 kg/m | 0.18 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
