FC606-24 Aeroquip by Danfoss | High Pressure 6S 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 1.50" ID
Aeroquip® by Danfoss

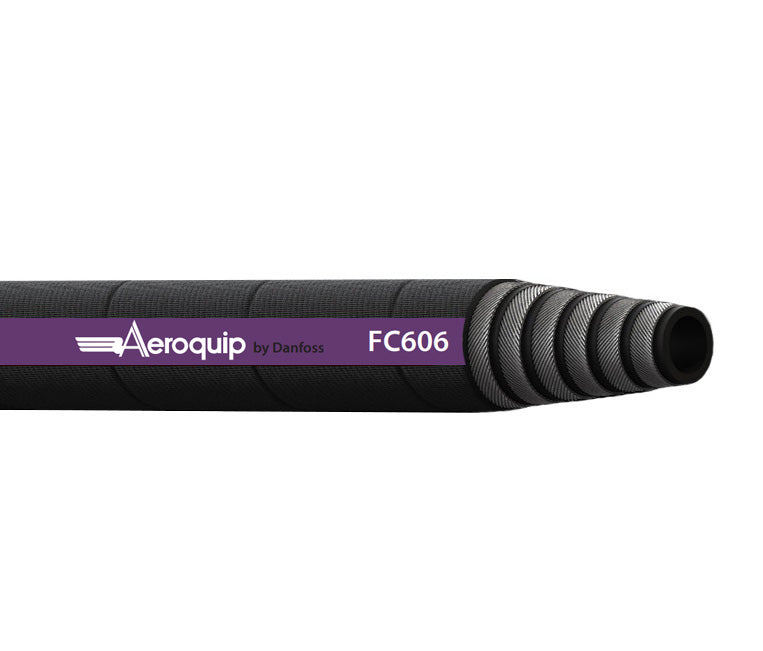

FC606 Series | High Pressure 6S 6-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $141.37 |
| 20–59 | $127.83 |
| 60+ | $112.79 |
Product Data:
6000
| Hose Properties: | |||
|---|---|---|---|
| Application: | High-pressure hydraulics, hydrostatic transmissions. Hydraulic system service with petroleum and waterbased fluids for general industrial use. |
SAE Rating: | Meets or exceeds: SAE 100R15, ISO 3862 Type R15 |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 6-Spiral Wire | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | -40°F to +250°F (-40°C to +121°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC606-24 | 38 | 38,1mm | 1.50" | 58,4mm | 2.30" | 420,0 bar | 6100 psi | 1680,0 bar | 24400 psi | 508,0mm | 20.00" | 4,72 kg/m | 3.17 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
