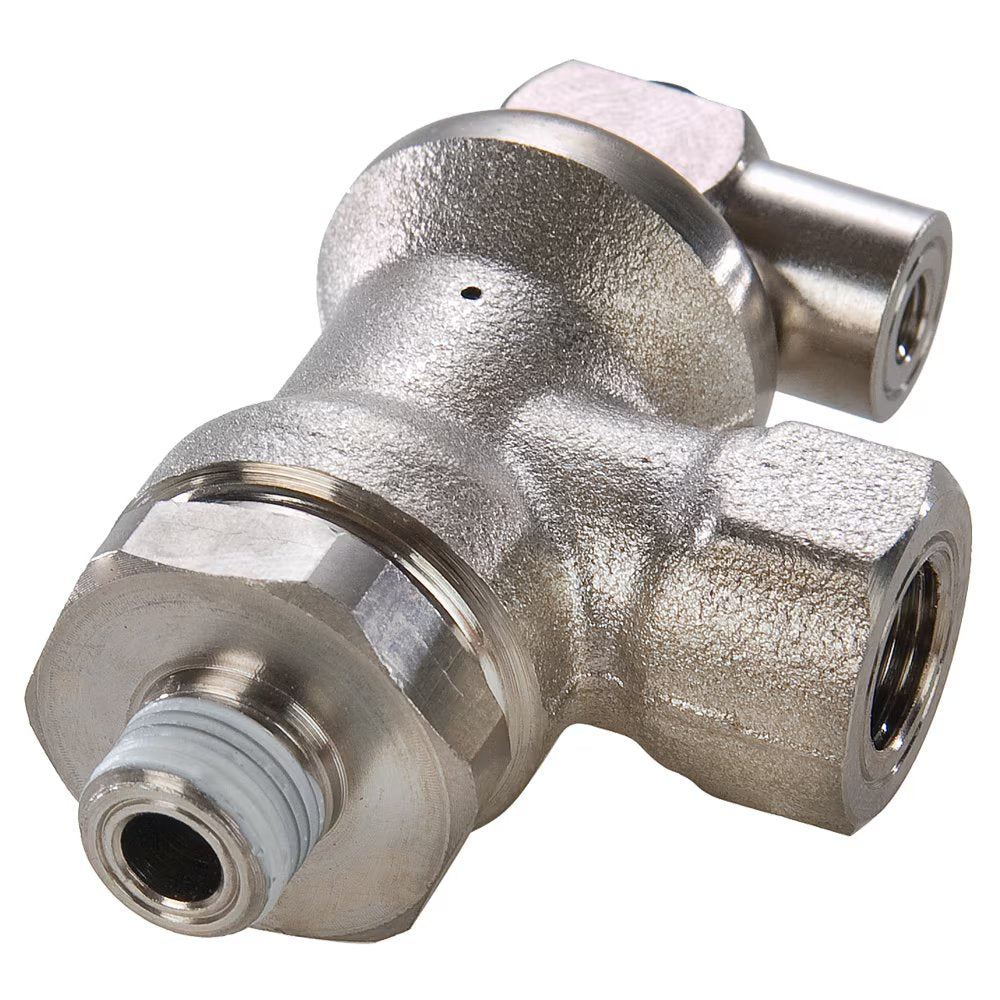

FC602-6 by Parker | Threaded Port Lock Out Valve | 3/8" Male NPT Thread x 3/8" Female NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass

FC602-6 by Parker | Threaded Port Lock Out Valve | 3/8" Male NPT Thread x 3/8" Female NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass

Sale price$107.58

by Parker Hannifin
Blocking Valves:FC602 Threaded Port Lock Out Valves
Buy More, Save More!
Quantity Price Each
20–29 $101.13
30–59 $91.44
60+ $80.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC602 Series
Shape:

Multi-Plane Swivel

Ends Configuration:
  • 3/8in Male NPT
  • 3/8in Female NPT
  • 10-32 Female BSPP
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number NPT NPT Hex H H1 H2 L
FC602-2 1/8" 1/8" 21 mm 2.03" 1.24" .79" 1.04"
FC602-4 1/4" 1/4" 21 mm 2.03" 1.24" .79" 1.04"
FC602-6 3/8" 3/8" 24 mm 2.19" 1.14" 1.04" 1.34"
FC602-8 1/2" 1/2" 24 mm 2.19" 1.14" 1.04" 1.57"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
