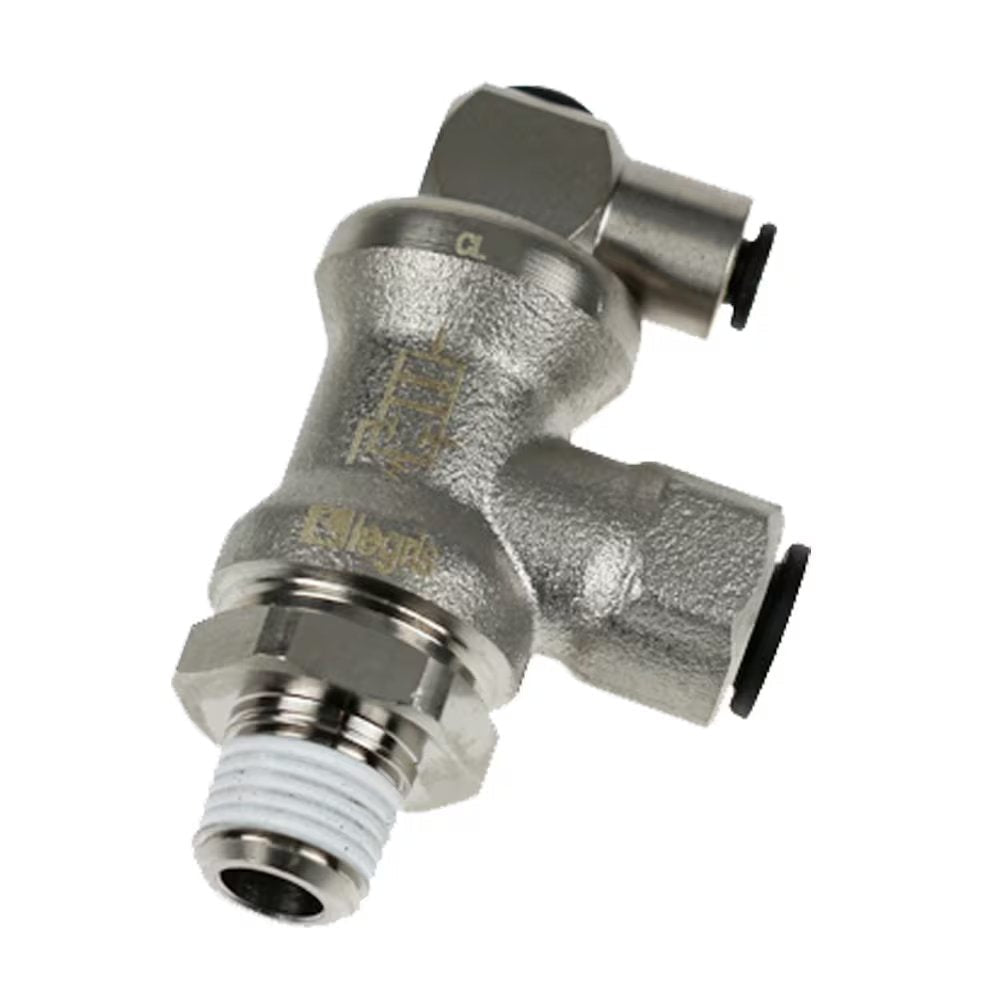

FC601-10M-6R by Parker | Push-to-Connect Lock Out Valve | 10 mm Push-to-Connect x 3/8" Male BSPT Thread | 56 mm Length | Multi-Plane Swivel | Brass

FC601-10M-6R by Parker | Push-to-Connect Lock Out Valve | 10 mm Push-to-Connect x 3/8" Male BSPT Thread | 56 mm Length | Multi-Plane Swivel | Brass

Sale price$306.96

by Parker Hannifin
Blocking Valves:FC601 Push-to-Connect Lock-Out Valve - BSPT
Buy More, Save More!
Quantity Price Each
5–14 $288.54
15–29 $260.92
30+ $230.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC601 Series
Shape:

Multi-Plane Swivel

Ends Configuration:
  • 10mm Push-to-Connect
  • 3/8in Male BSPT
  • 4mm Push-to-Connect
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPT Hex H H1 H2 L
FC601-6M-2R 6 mm 1/8" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC601-6M-4R 6 mm 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC601-8M-4R 8 mm 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC601-8M-6R 8 mm 3/8" 24 mm 56 mm 25.0 mm 23.0 mm 34.5 mm
FC601-10M-6R 10 mm 3/8" 24 mm 56 mm 25.0 mm 23.0 mm 35.0 mm
FC601-12M-8R 12 mm 1/2" 24 mm 56 mm 25.0 mm 23.0 mm 37.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
