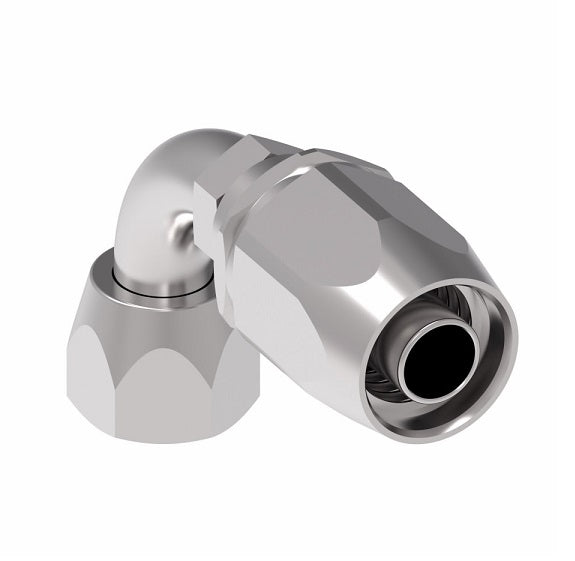

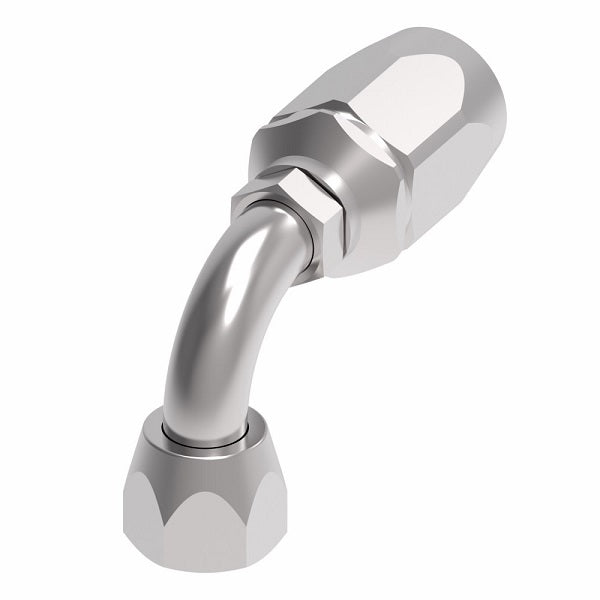

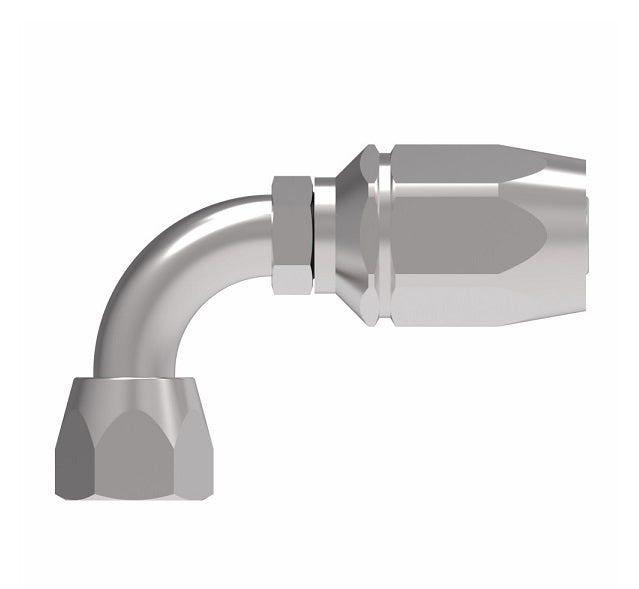

FC5992-0808S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| FC5992-0404S | -04 | 7/16-20 | 2.40" | 1.23" | 0.17" | 0.68" |
| FC5992-0606S | -06 | 9/16-18 | 2.72" | 1.38" | 0.31" | 0.85" |
| FC5992-0808S | -08 | 3/4-16 | 3.02" | 1.52" | 0.39" | 1.09" |
| FC5992-1008S | -08 | - | - | - | - | - |
| FC5992-1212S | -12 | 1-1/16-12 | 4.11" | 2.24" | 0.61" | 1.82" |
| FC5992-1616S | -16 | 1-5/16-12 | 4.84" | 2.79" | 0.82" | 2.39" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
