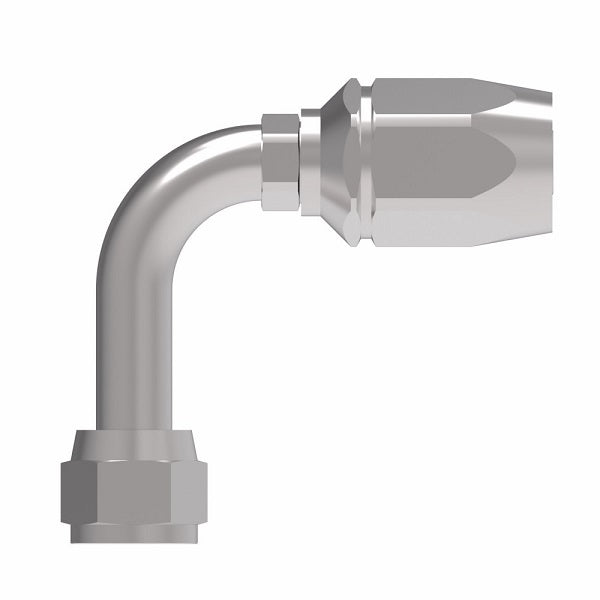

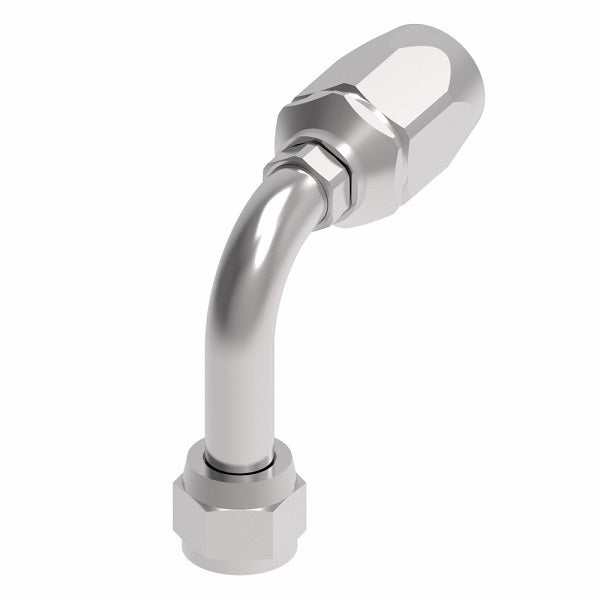

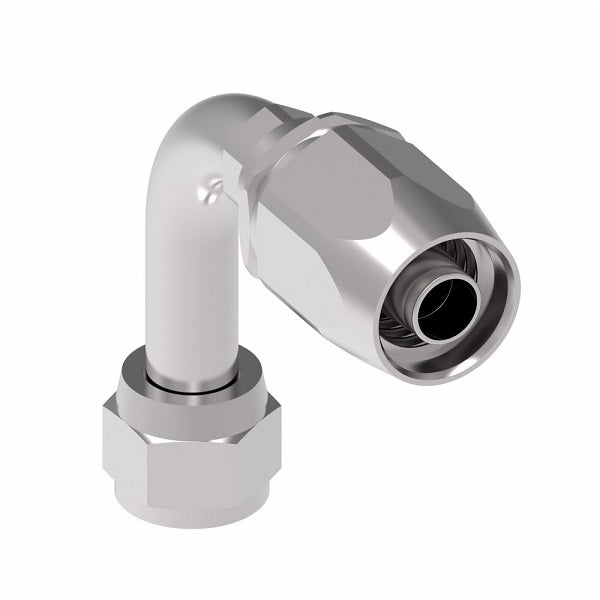

FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

FC5991-0404S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

Sale price$56.12
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
FC5991-0404S -04 7/16-20 2.40" 1.23" 0.17" 1.80"
FC5991-0606S -06 9/16-18 2.72" 1.38" 0.31" 2.18"
FC5991-0808S -08 3/4-16 3.15" 1.64" 0.39" 2.43"
FC5991-1212S -12 1-1/16-12 4.11" 2.24" 0.61" 3.73"
FC5991-1616S -16 1-5/16-12 4.84" 2.79" 0.82" 4.58"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
