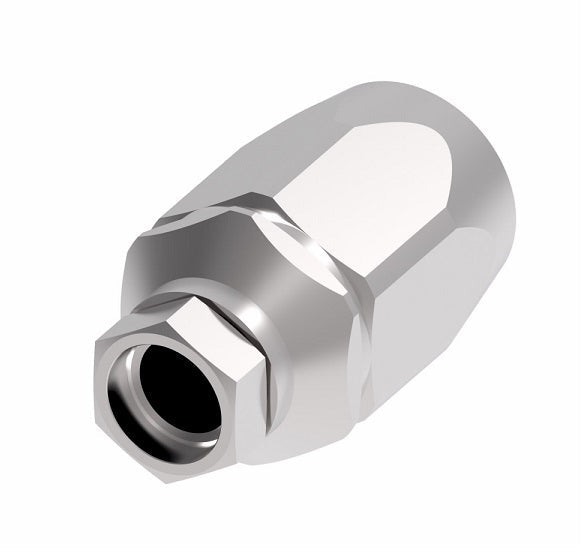

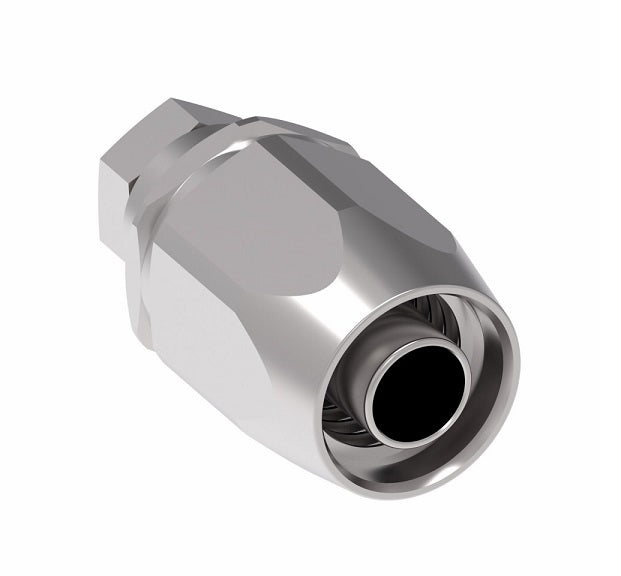

FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel
FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel
FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel

FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel

Sale price$31.44

AeroquipĀ® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Lifesaver - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10ā€“39 $29.55
40ā€“79 $26.72
80+ $23.58
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Braze End
  • 1/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Tube Size A B D EƘ
FC5989-0404S -04 1/4" 2.03" 0.25" 0.86" 0.17"
FC5989-0606S -06 3/8" 2.22" 0.38" 0.88" 0.31"
FC5989-0808S -08 1/2" 2.40" 0.50" 0.89" 0.39"

*B dimension is counterbore diameter for mating tubing.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
