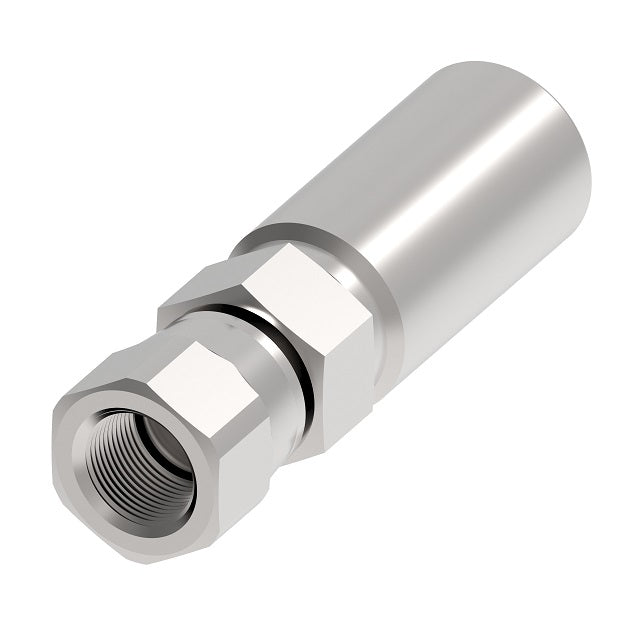

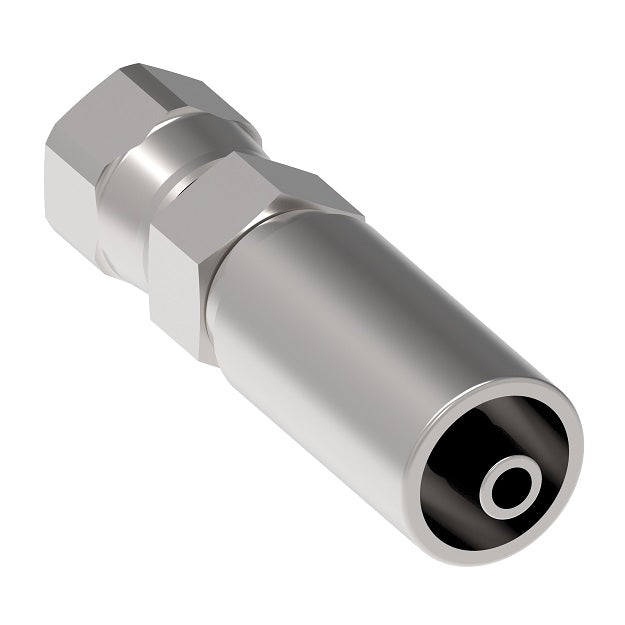

FC5810-1616S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -16 Female 37° JIC x -16 Hose Barb | Carbon Steel
Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $69.13 |
| 40–79 | $62.51 |
| 80+ | $55.16 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Ends Configuration:
Material(s):
Compatible Series:
| Part Number Carbon Steel |
Part Number Stainless Steel |
Compatible Hose ID |
Hose Dash Size |
Inside Diameter |
Outside Diameter |
|---|---|---|---|---|---|
| FC5810-0302S | - | 0.1875" | -03 | 0.08" | - |
| FC5810-0303S | - | - | -03 | - | - |
| FC5810-0402S | - | 0.25" | -04 | 0.08" | 0.625" |
| FC5810-0403S | - | 0.25" | -04 | 0.1" | 0.625" |
| FC5810-0404S | FC5810-0404-259 | 0.25" | -04 | 0.15" | 0.6875" |
| FC5810-0503S | - | - | -05 | - | - |
| FC5810-0504S | - | 0.3125" | -05 | 0.15" | 0.6875" |
| FC5810-0505S | - | 0.3125" | -05 | 0.22" | - |
| FC5810-0604S | - | 0.25" | -04 | 0.15" | 0.6875" |
| FC5810-0605S | - | 0.375" | -06 | 0.22" | - |
| FC5810-0606S | FC5810-0606-259 | 0.375" | -06 | 0.28" | 0.8125" |
| FC5810-0806S | FC5810-0808-259 | 0.5" | -08 | 0.38" | 1" |
| FC5810-0808S | - | 0.5" | -08 | 0.38" | 1" |
| FC5810-1006S | - | 0.375" | -06 | 0.28" | - |
| FC5810-1008S | FC5810-1008-259 | 0.5" | -08 | 0.38" | - |
| FC5810-1010S | - | 0.625" | -10 | 0.5" | - |
| FC5810-1012S | - | 0.625" | -10 | 0.59" | - |
| FC5810-1208S | - | 0.5" | -08 | 0.38" | - |
| FC5810-1212S | FC5810-1212-259 | 0.75" | -12 | 0.59" | - |
| FC5810-1616S | FC5810-1616-259 | 1" | -16 | 0.78" | - |
