FC555-12 Aeroquip by Danfoss | Multi-Refrigerant A/C & Refrigeration Hose | SAE J2064 | 0.62" ID
Aeroquip® by Danfoss

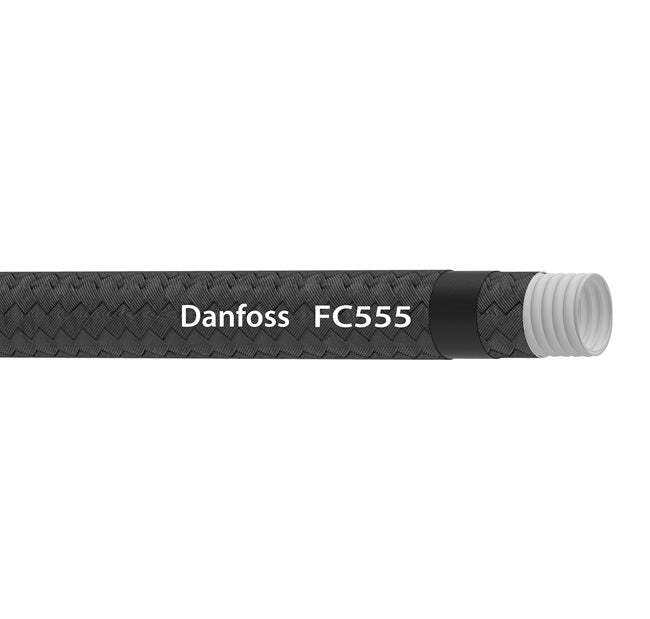

FC555 Series | Multi-Refrigerant A/C & Refrigeration Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $33.30 |
| 40–79 | $30.12 |
| 80+ | $26.57 |
Product Data:
500
| Hose Properties: | |||
|---|---|---|---|
| Application: | Large and medium buses. Rail. Applications where extreme flexibility is required for a large-size hose. |
SAE Rating: | Meets: SAE J2064 |
| Other Ratings: | N/A | Tube: | Corrugated Polyamide |
| Cover: | Abrasion resistant polyester braided cover. | Reinforcement: | Polyester Braid |
| Operating Parameters: | -40°C to +125°C (-40°F to +257°F) R134a effusion: .97 kg/m2/yr at 80°C (.20 lbs/ft2/yr at 180°F) Moisture ingression: Class I |
||
| Features: | Machined hose nipple with two o-rings. O-ring material - HNBR One-piece fitting design, factory crimp. Abrasion resistant |
||
| Benefits: | Optimum sealing at the hose nipple interface. Multi-refrigerant compatible. Significantly exceeds industry standards for refrigerant loss. Simplifies inventory |
||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | kPa | in/Hg | |
| FC555-12 | 12 | 15.9mm | 0.62" | 28,5mm | 1.20" | 35 bar | 500 psi | 175 bar | 2500 psi | 63.5mm | 2.50" | 0,30 kg/m | 0.20 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC555-16 | 16 | 22,4mm | 0.88" | 35,1mm | 1.38" | 35 bar | 500 psi | 175 bar | 2500 psi | 76.2mm | 3.00" | 0,40 kg/m | 0.27 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC555-20 | 25 | 28.4mm | 1.20" | 41,9mm | 1.65" | 35 bar | 500 psi | 175 bar | 2500 psi | 101.6mm | 4.00" | 0,49 kg/m | 0.33 lbs/ft | 94,8 kPa | 28 in/Hg |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
