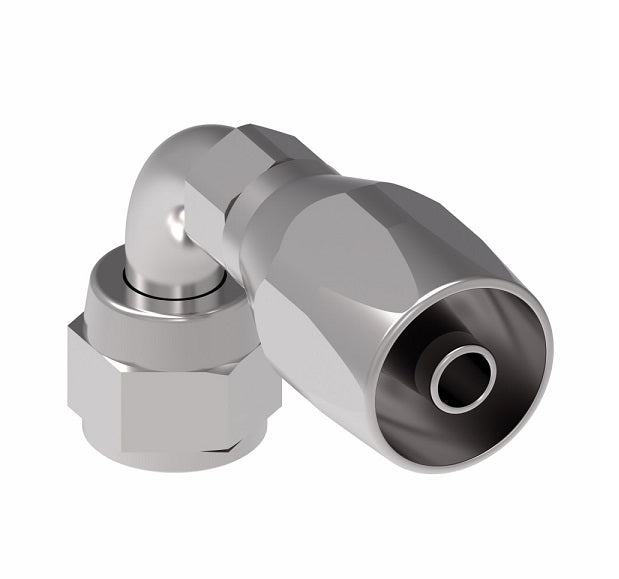

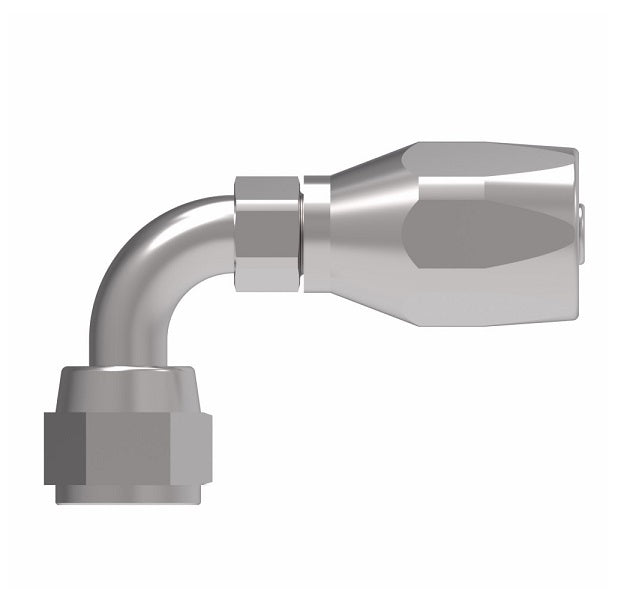

FC5143-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel -08 Reusable Hose End | Steel
Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $54.10 |
| 40–79 | $48.92 |
| 80+ | $43.16 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| FC5143-0404S | -04 | 7/16-20 | 2.36" | 1.15" | 0.17" | 0.68" |
| FC5143-0606S | -06 | 9/16-18 | 2.72" | 1.25" | 0.31" | 0.85" |
| FC5143-0808S | -08 | 3/4-16 | 3.02" | 1.38" | 0.39" | 1.09" |
| FC5143-1010S | -10 | 7/8-14 | 3.28" | 1.67" | 0.50" | 1.23" |
| FC5143-1212S | -12 | 1-1/16-12 | 4.11" | 2.24" | 0.61" | 1.82" |
| FC5143-1616S | -16 | 1-5/16-12 | 4.84" | 2.73" | 0.82" | 2.39" |
