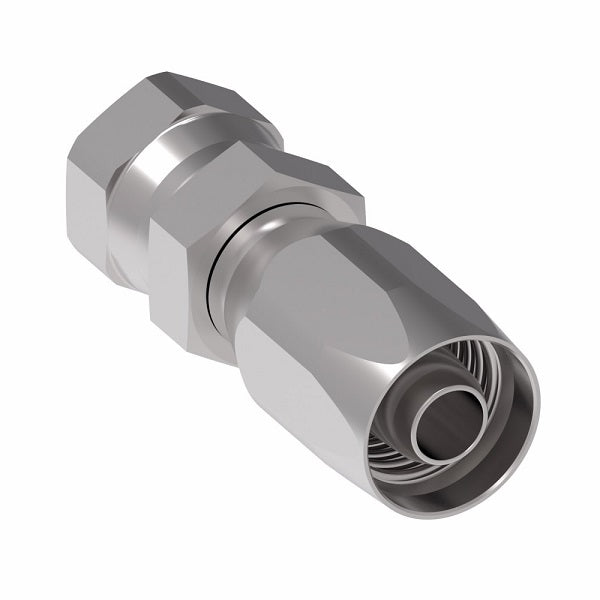

FC5130-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ |
| FC5130-0404S | -04 | 7/16-20 | 2.60" | 1.38" | 0.17" |
| FC5130-0604S | -04 | 9/16-18 | 2.70" | - | - |
| FC5130-0606S | -06 | 9/16-18 | 2.98" | 1.51" | 0.31" |
| FC5130-0806S | -06 | 3/4-16 | 3.11" | 1.64" | 0.31" |
| FC5130-0808S | -08 | 3/4-16 | 3.20" | 1.61" | 0.39" |
| FC5130-1008S | -08 | 7/8-14 | 3.31" | 1.80" | 0.39" |
| FC5130-1010S | -10 | 7/8-14 | 3.44" | 1.83" | 0.50" |
| FC5130-1212S | -12 | 1-1/16-12 | 3.86" | 1.99" | 0.61" |
| FC5130-1616S | -16 | 1-5/16-12 | 4.48" | 2.37" | 0.82" |
| FC5130-2020S* | -20 | 1-5/8-12 | 5.10" | 2.47" | 1.05" |
* FC310 only
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
