FC500-12 Aeroquip by Danfoss | X-FLEX Spiral 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose | SAE 100R13 | 0.75" ID
Aeroquip® by Danfoss

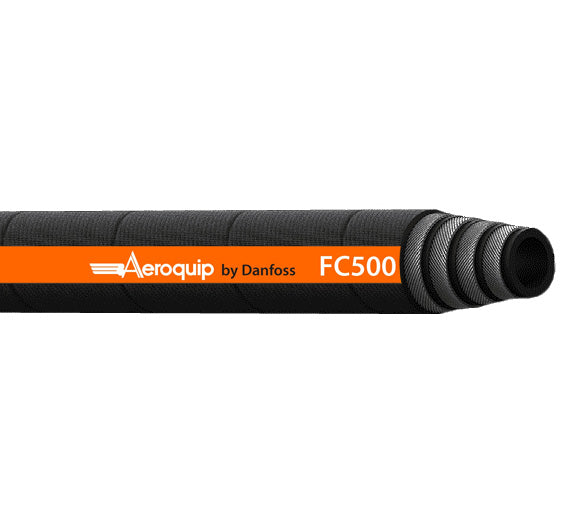

FC500Series | X-FLEX Spiral 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $34.54 |
| 40–79 | $31.23 |
| 80+ | $27.56 |
Product Data:
5100
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic system service with petroleum, and water-based fluids. For low temperature applications. |
SAE Rating: | Meets or exceeds: SAE 100R13, EN 856 Type R13, ISO 18752, ISO 3862 Type R13 performance. |
| Other Ratings: | MSHA Accepted, ABS Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire in -12 to -24 6-Spiral Wire in -32 |
Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -40°F to +260°F (-40°C to +127°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC500-12 | 19 | 19,0mm | 0.75" | 31,0mm | 1.22" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 121,0mm | 4.75" | 1,28 kg/m | 0.86 lbs/ft |
| FC500-16 | 25 | 25,4mm | 1.00" | 38,4mm | 1.51" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 152,0mm | 6.00" | 1,85 kg/m | 1.24 lbs/ft |
| FC500-20 | 31 | 31,8mm | 1.25" | 45,5mm | 1.79" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 210,0mm | 8.25" | 2,50 kg/m | 1.68 lbs/ft |
| FC500-24 | 38 | 38,1mm | 1.50" | 53,5mm | 2.11" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 254,0mm | 10.00" | 3,38 kg/m | 2.27 lbs/ft |
| FC500-32 | 51 | 50,8mm | 2.00" | 71,8mm | 2.83" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 476,0mm | 18.75" | 6,07 kg/m | 4.08 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
