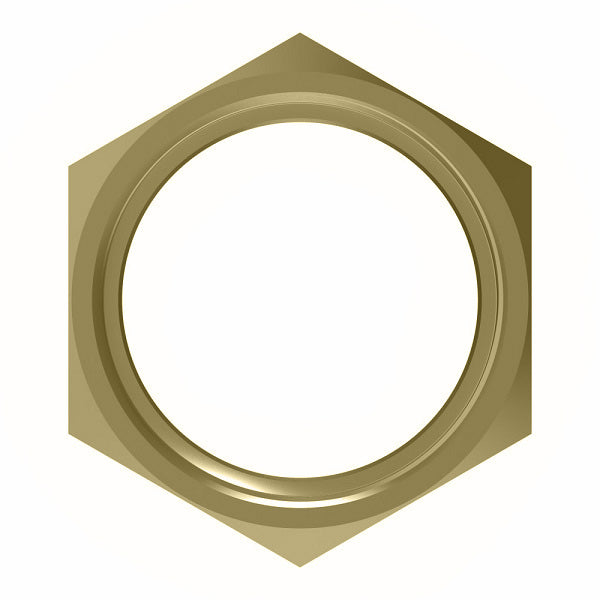

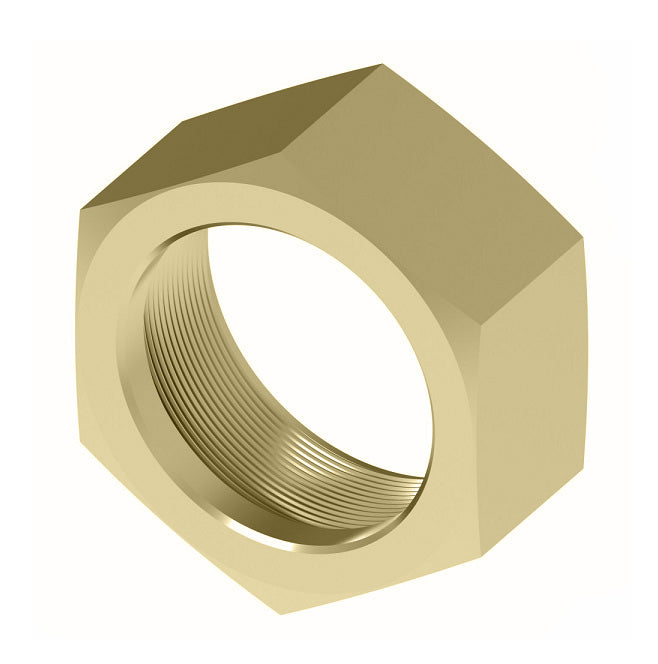

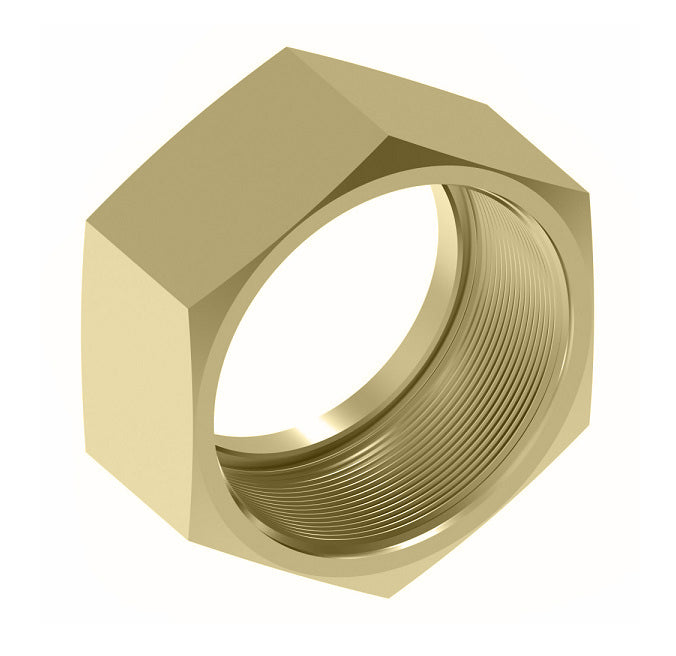

FC2326-08B Aeroquip by Danfoss | ORS/BR Nut Adapter | -08 Female O-Ring Face Seal x -08 Braze End | Brass
FC2326-08B Aeroquip by Danfoss | ORS/BR Nut Adapter | -08 Female O-Ring Face Seal x -08 Braze End | Brass
FC2326-08B Aeroquip by Danfoss | ORS/BR Nut Adapter | -08 Female O-Ring Face Seal x -08 Braze End | Brass

FC2326-08B Aeroquip by Danfoss | ORS/BR Nut Adapter | -08 Female O-Ring Face Seal x -08 Braze End | Brass

Minimum Order Quantity: 5 Units

Sale price$7.45
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520110
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel
Part Number 		Brass
Part Number 		Stainless Steel
Part Number 		Tube OD Thread T A E Hex 1
FC2326-04S - - 0.25" 9/16-18 0.58" 0.41" 0.69"
FC2326-06S FC2326-06B FC2326-06-259 0.38" 11/16-16 0.67" 0.53" 0.81"
FC2326-08S FC2326-08B FC2326-08-259 0.50" 13/16-16 0.83" 0.65" 0.94"
FC2326-10S - - 0.63" 1-14 0.92" 0.83" 1.12"
FC2326-12S - - 0.75" 1-3/16-12 1.02" 0.95" 1.38"
- FC2326-1214B - 0.88" 1-3/16-12 1.22" 0.99" 1.38"
FC2326-16S FC2326-16B FC2326-16-259 1.00" 1-7/16-12 1.10" 1.14" 1.62"
FC2326-20S - - 1.25" 1-11/16-12 1.10" 1.42" 1.88"
FC2326-24S - - 1.50" 2-12 1.10" 1.73" 2.25"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Braze End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
