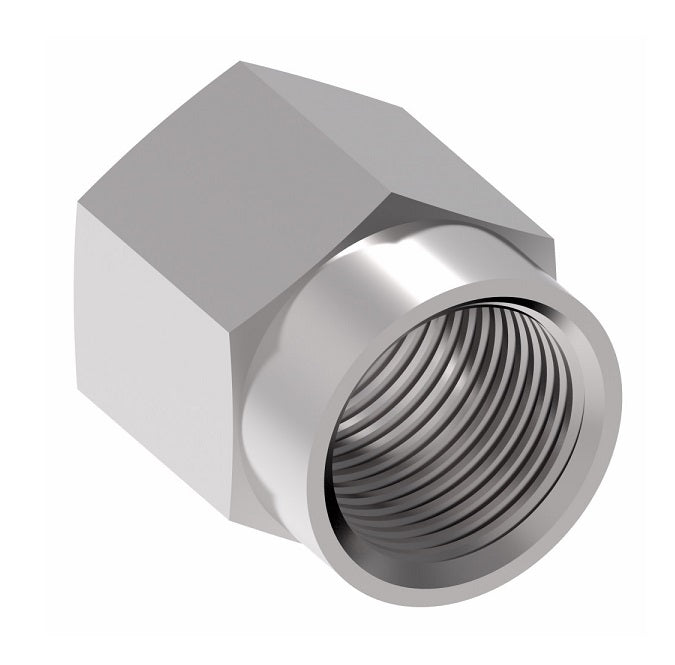

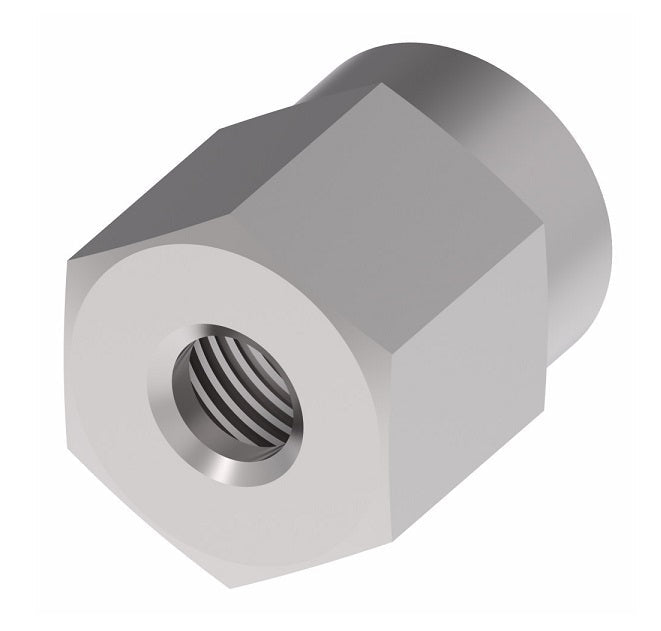

FC1851-24S Aeroquip by Danfoss | ORS-TF Nut Adapter | -24 O-Ring Face Seal | Steel
FC1851-24S Aeroquip by Danfoss | ORS-TF Nut Adapter | -24 O-Ring Face Seal | Steel
FC1851-24S Aeroquip by Danfoss | ORS-TF Nut Adapter | -24 O-Ring Face Seal | Steel

FC1851-24S Aeroquip by Danfoss | ORS-TF Nut Adapter | -24 O-Ring Face Seal | Steel

Sale price$34.66
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Material: Steel
  • Buna-N O-Rings are standard.
Part Number Tube OD Thread A E Hex 1
FC1851-04S 0.25" 9/16-18 0.84" 0.26" 0.69"
FC1851-06S 0.38" 11/16-16 0.93" 0.38" 0.81"
FC1851-08S 0.50" 13/16-16 1.06" 0.51" 0.94"
FC1851-10S 0.63" 1-14 1.13" 0.63" 1.12"
FC1851-12S 0.75" 1-3/16-12 1.28" 0.76" 1.38"
FC1851-16S 1.00" 1-7/16-12 1.35" 1.01" 1.62"
FC1851-20S 1.25" 1-11/16-12 1.41" 1.26" 1.88"
FC1851-24S 1.50" 2-12 1.47" 1.51" 2.25"

Additional Product Data:

Shape:

No Orientation

Ends Configuration:
  • 1-1/2in O-Ring Face Seal
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
