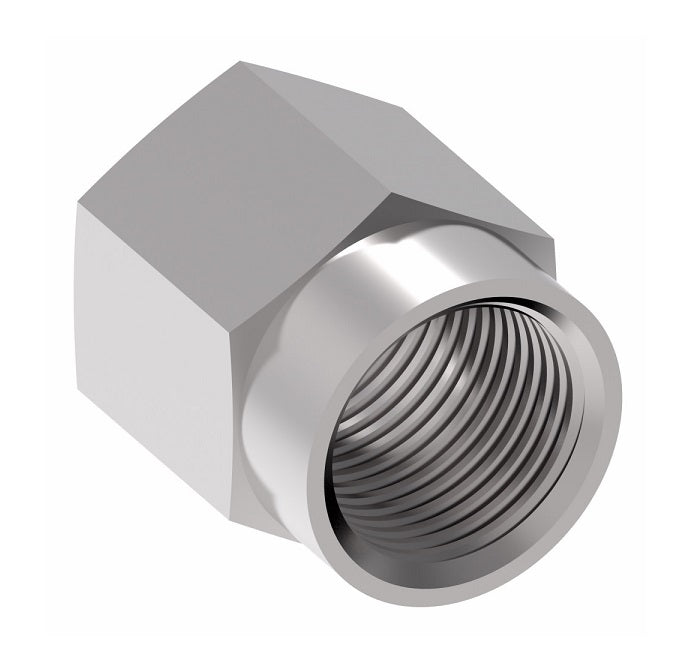

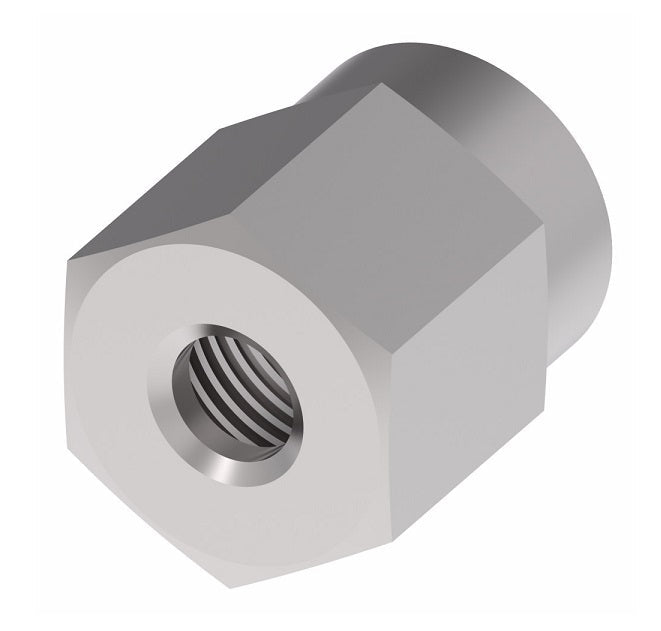

FC1851-16S Aeroquip by Danfoss | ORS-TF Nut Adapter | -16 O-Ring Face Seal | Steel
Aeroquip® by Danfoss
ORS-TF Nut Adapter - O-Ring Face Seal
(Formerly Eaton Aeroquip)
The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.11 |
| 40–79 | $16.38 |
| 80+ | $14.45 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Construction: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube OD | Thread | A | E | Hex 1 |
| FC1851-04S | 0.25" | 9/16-18 | 0.84" | 0.26" | 0.69" |
| FC1851-06S | 0.38" | 11/16-16 | 0.93" | 0.38" | 0.81" |
| FC1851-08S | 0.50" | 13/16-16 | 1.06" | 0.51" | 0.94" |
| FC1851-10S | 0.63" | 1-14 | 1.13" | 0.63" | 1.12" |
| FC1851-12S | 0.75" | 1-3/16-12 | 1.28" | 0.76" | 1.38" |
| FC1851-16S | 1.00" | 1-7/16-12 | 1.35" | 1.01" | 1.62" |
| FC1851-20S | 1.25" | 1-11/16-12 | 1.41" | 1.26" | 1.88" |
| FC1851-24S | 1.50" | 2-12 | 1.47" | 1.51" | 2.25" |
