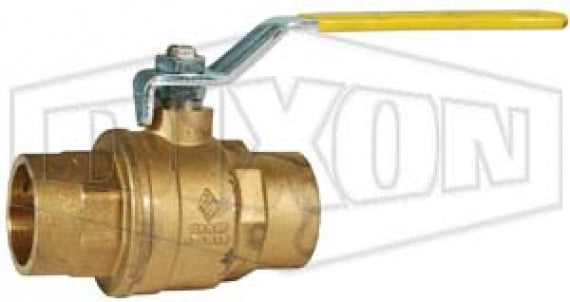

FBV75SE by Dixon Valve | Solder End Ball Valve | Full Port | 3/4" Female NPT x 3/4" Female NPT | Brass

FBV75SE by Dixon Valve | Solder End Ball Valve | Full Port | 3/4" Female NPT x 3/4" Female NPT | Brass

Sale price$39.86

Dixon Valve & Coupling
Solder End Ball Valve | Brass

Provides protection against potential gas leakage under extreme duty or low pressure applications.
Buy More, Save More!
Quantity Price Each
10–39 $37.47
40–79 $33.88
80+ $29.90
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female NPT
  • 3/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Blow-out proof stem.
  • Adjustable stem packing nut.
Materials:
  • Body: Forged Brass.
  • Chrome-plated brass ball.
  • PTFE seat, seal, and thrust washer.
Specifications:
  • Pressure rating: 600 PSI WOG; 150 PSI working steam pressure.
  • Maximum temperature: 366°F (186°C).
Part Number Female NPT x Female NPT Port
FBV50SE 1/2" Full
FBV75SE 3/4" Full
FBV100SE 1" Full
FBV125SE 1-1/4" Full
FBV150SE 1-1/2" Full
FBV200SE 2" Full
