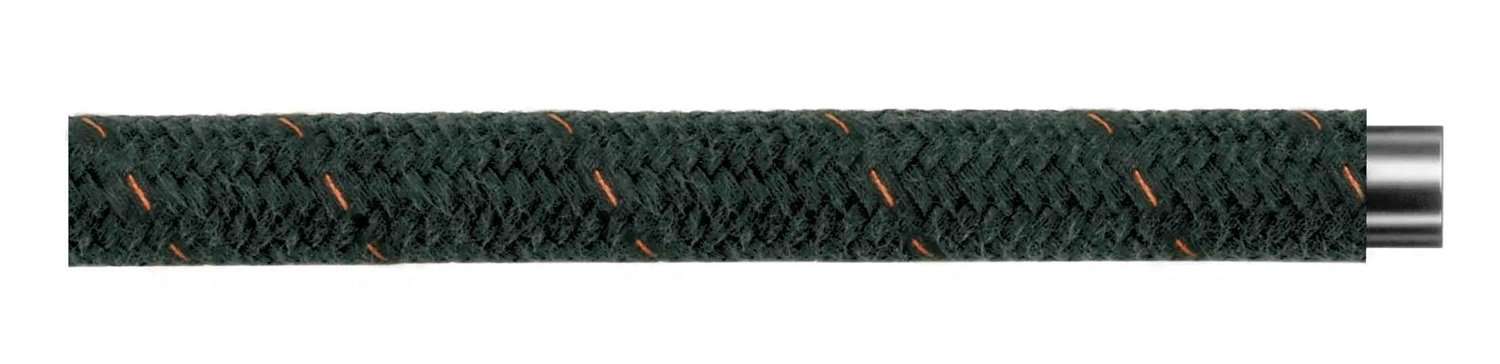

FBU0400 Eaton Aeroquip® -04 StartLite® Racing Hose
Eaton Aeroquip® High Performance
StartLite® Racing Hose
The Professional's Choice. - 45% lighter than AQP® Racing Hose - made in the U.S.A.
Features:
- Up to 45% lighter than stainless steel braided hose. For ultimate weight savings, select AQP lightweight crimp fittings.
- Flame retardant Nomex* and Kevlar cover
- AQP smooth bore inner tube
- Flexible band radius
- Race proven - approved by NASCAR, NHRA, IHRA, ADRL and other sanctioning bodies
- Three to five times better abrasion protection
- Fastest and easiest crimp machine on the market (FT1380)
- Non-swivel and swivel crimp fittings (no phase angles to calculate)
- Rated to 20 in/Hg or 28 in/Hg with stainless steel support coil
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.33 |
| 40–79 | $13.86 |
| 80+ | $12.23 |
Discounts applied in cart/checkout.
FBU0400 Eaton Aeroquip® -04 StartLite® Racing Hose
Sale price$16.31
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
500
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Fuel, lube, coolant, air lines | SAE Rating: | N/A | ||||
|---|---|---|---|---|---|---|---|
| Other Ratings: | N/A | Tube: | AQP elastomer | ||||
| Reinforcement: | N/A | Cover: | Nomex* and Kevlar cover | ||||
| Temperature Range: | -45°F to +300°F (-43°C to +150°C). | Crimp Fittings: | StartLite® Racing Hose Crimp Fittings | ||||
| Reusable Fittings: | StartLite® Racing Hose Reusable Fittings-1 |
| Bulk Part Number | Hose Dash Size | Hose ID (in) |
Hose OD (in) |
Max. Operating Pressure (PSI) |
Min. Bend Radius (in) |
Weight Per Foot (lbs) |
Vacuum Service (in/Hg) |
|---|---|---|---|---|---|---|---|
| FBU0400 | -04 | 0.22" | 0.43" | 500 PSI | 2.00" | 0.05 lbs | 20 in/Hg |
| FBU0600 | -06 | 0.34" | 0.55" | 500 PSI | 2.50" | 0.08 lbs | 20 in/Hg |
| FBU0800 | -08 | 0.44" | 0.64" | 500 PSI | 3.50" | 0.09 lbs | 20 in/Hg |
| FBU1000 | -10 | 0.56" | 0.80" | 500 PSI | 4.00" | 0.14 lbs | 20 in/Hg |
| FBU1200 | -12 | 0.69" | 0.93" | 350 PSI | 4.50" | 0.16 lbs | 20 in/Hg |
| FBU1600 | -16 | 0.88" | 1.15" | 350 PSI | 5.50" | 0.19 lbs | 20 in/Hg |
| FBU2000 | -20 | 1.13" | 1.41" | 350 PSI | 5.50" | 0.25 lbs | 20 in/Hg |
*Nomex is a Dupont trademark.
Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
