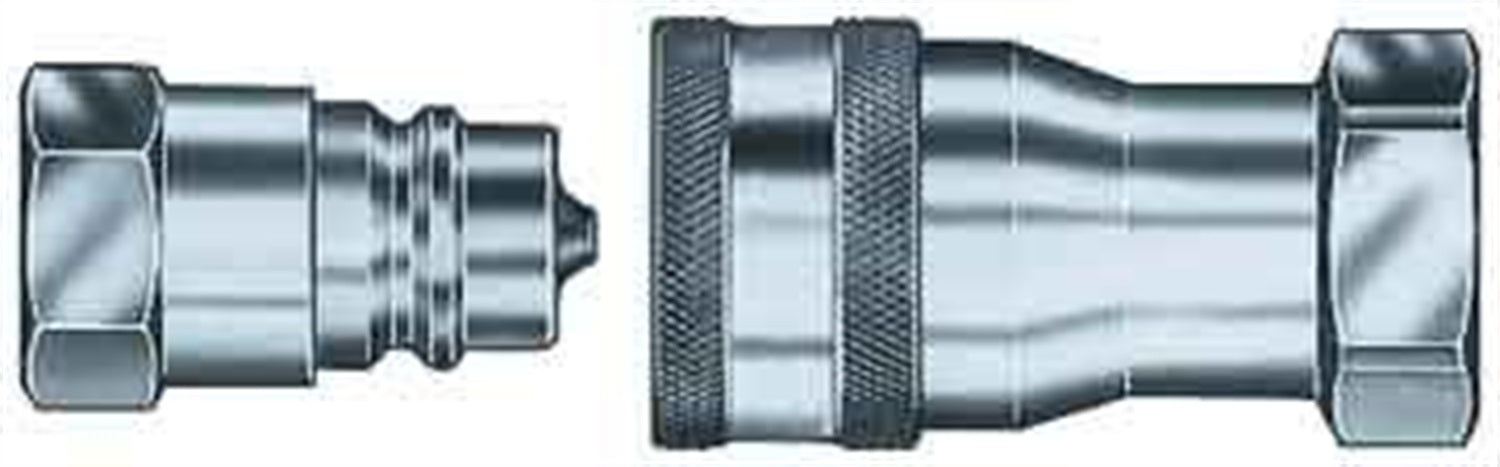

FBM3016 Eaton Aeroquip® PUSH-PULL™ Quick-Disconnect Hydraulic Coupling - 1-11-1/2 Female NPT x Female NPT - Steel
Eaton Aeroquip® High Performance
PUSH-PULL™ Quick-Disconnect Hydraulic Coupling
PUSH-PULL™ Self-Sealing Couplings are ideal for most hydraulic and fluid applications requiring a quick connect/disconnect coupling.
The coupling bodies are constructed of high quality plated steel.
Coupling uses Buna-N seals.
Product Data:
Shape:
Straight
Material(s):
Seal Material(s):
PUSH-PULL™ Quick-Disconnect Hydraulic Couplings |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Pipe Thread Size | Max. Operating Pressure |
Air Inclusion (C.C. Max) |
Fluid Loss (C.C. Max) |
Rated Flow | Coupled Length |
Vacuum Service |
| FBM3011 | 1/4-18 | 5000 PSI | 0.50 | 0.50 | 1 GPM | 2.53" | 28 in/Hg. |
| FBM3012 | 3/8-18 | 4000 PSI | 1.50 | 1.30 | 6 GPM | 2.80" | 28 in/Hg. |
| FBM3015 | 3/4-14 | 4000 PSI | 10.0 | 8.2 | 28 GPM | 4.56" | 28 in/Hg. |
| FBM3016 | 1-11-1/2 | 4000 PSI | 14.2 | 14.2 | 50 GPM | 5.54" | 28 in/Hg. |
Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
