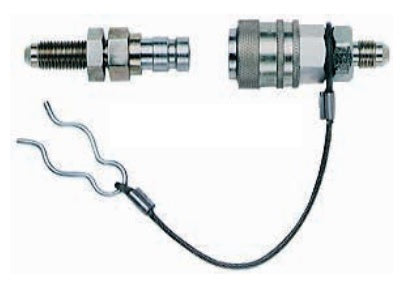

FBM1073 Eaton Aeroquip® -03 Quick-Disconnect Hydraulic Brake and Clutch Coupling - Steel

FBM1073 Eaton Aeroquip® -03 Quick-Disconnect Hydraulic Brake and Clutch Coupling - Steel

Sale price$200.06
Buy more, save moreDiscounts applied in cart/checkout.
Quick-Disconnect Hydraulic Brake and Clutch Couplings & Replacement Parts
Steel
Part Number		 Description Hose Fitting
Dash Size		 Max. Operating
Pressure		 Air Inclusion
(C.C. Max.)		 Fluid Loss
(C.C. Max)		 Length Connector Total Weight
FBM1073 Complete Coupling -03 3000 PSI 0.02 0.10 4.10" 0.34 lbs
FBM1074 Complete Coupling -04 3000 PSI 0.02 0.10 4.25" 0.36 lbs
Replacement Parts
FBM1115 Male Half (Bulkhead Mount) -03
FBM1117 Female Half -03

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Additional Product Data:

Shape:

Straight

Material(s):
  • Steel

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
