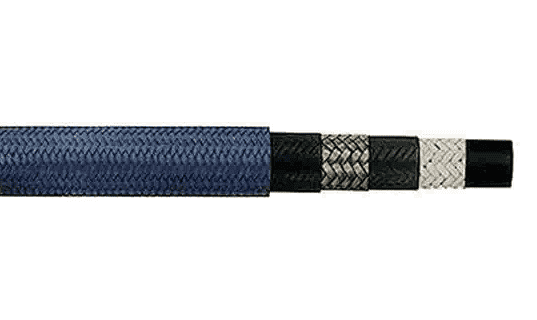

FBG0800 Eaton Aeroquip® -08 AQP® High Pressure / Power Steering Hose - Blue Cover
Eaton Aeroquip® High Performance
AQP® High Pressure / Power Steering Hose
Abrasion resistant fabric cover for longer life.
AQP High Pressure Hose is ideal for power steering, hydraulics, air, fuel and lubricating oil applications. It has a blue abrasion resistant fabric cover and an AQP synthetic rubber inner tube. It uses standard steel and brass reusable fittings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.02 |
| 40–79 | $16.29 |
| 80+ | $14.38 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
2000
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Power steering lines, hydraulics, air, gasoline, fuel and lubricating oils, over-thewall air tools and DOT-approved air brake. | SAE Rating: | N/A | |||
|---|---|---|---|---|---|---|
| Other Ratings: | N/A | Tube: | AQP elastomer smooth bore inner tube | |||
| Reinforcement: | Polyester inner braid, single wire-braid reinforcement | Cover: | Abrasion resistant fabric cover | |||
| Temperature Range: | -55°F to +300°F (-49°C to +150°C), except air +250F (+121°C). | Reusable Fittings: | AQP® High Pressure / Power Steering Hose Fittings |
| Bulk Part Number | Hose Dash Size | Hose ID (in) |
Hose OD (in) |
Max. Operating Pressure (PSI) |
Min. Bend Radius (in) |
Vacuum Service (in. Hg) |
|---|---|---|---|---|---|---|
| FBG0600 | -06 | 0.31" | 0.67" | 2250 PSI | 4.00" | 28 in. Hg |
| FBG0800 | -08 | 0.41" | 0.77" | 2000 PSI | 4.62" | 28 in. Hg |
| FBG1000 | -10 | 0.50" | 0.92" | 1750 PSI | 5.50" | 28 in. Hg |
| FBG1200 | -12 | 0.62" | 1.08" | 1500 PSI | 6.50" | 28 in. Hg |
Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
