FBC0600 Eaton Aeroquip® -06 Teflon™ Racing Hose - Stainless Steel Cover
Eaton Aeroquip® High Performance

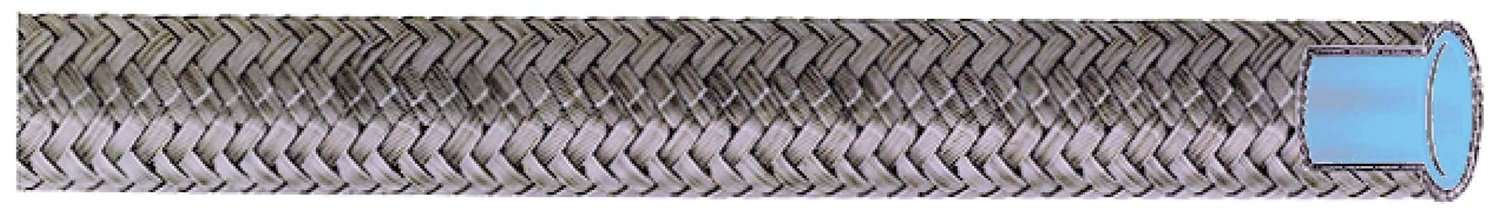

Teflon™ Racing Hose with Stainless Steel Cover
For the most extreme applications - superior fluid compatibility, abrasion and corrosion resistance for reliable service.
Made with an extruded Teflon™ inner tube that's compatible with a wide range of fluids, including hydraulic brake fluids. The hose has a bright stainless steel wire-braid cover that resists abrasion and corrosion, providing optimum dependability.
- Functions smoothly at extreme temperatures
- Withstands constant flexing and vibration
- Resists fatigue and failure under high pressure
- Carries fluids of all kinds without contamination
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.45 |
| 40–79 | $13.06 |
| 80+ | $11.53 |
Product Data:
2500
SPECIFICATIONS
| Application: | Off-road brake, transmission, clutch, gauge, N2O, power steering, hydraulic | SAE Rating: | N/A | |||
|---|---|---|---|---|---|---|
| Other Ratings: | N/A | Tube: | Extruded Teflon™ smooth bore inner tube | |||
| Reinforcement: | Stainless Steel outerbraid | Cover: | Stainless steel outer cover for excellent abrasion resistance | |||
| Temperature Range: | -100°F to +450°F (-73°C to +232°C) | Crimp Fittings: | Teflon™ Racing Hose Crimp Fittings | |||
| Reusable Fittings: | Teflon™ Racing Hose Reusable Fittings |
| Bulk Part Number | Hose Dash Size | Hose ID (in) |
Hose OD (in) |
Max. Operating Pressure (PSI) |
Min. Bend Radius (in) |
Vacuum Service (in. Hg) |
|---|---|---|---|---|---|---|
| FBC0300 | -03 | 0.14" | 0.25" | 3000 PSI | 1.50" | 28 in. Hg |
| FBC0400 | -04 | 0.19" | 0.30" | 3000 PSI | 2.00" | 28 in. Hg |
| FBC0600 | -06 | 0.32" | 0.43" | 2500 PSI | 4.00" | 28 in. Hg |
| FBC0800 | -08 | 0.42" | 0.54" | 2000 PSI | 5.25" | 28 in. Hg |
Note: After cutting Teflon™ and A/C hose, be sure to clean all burrs or debris from the end of the hose. This helps to ensure a secure and leak free seal between the tube and sleeve.
Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
