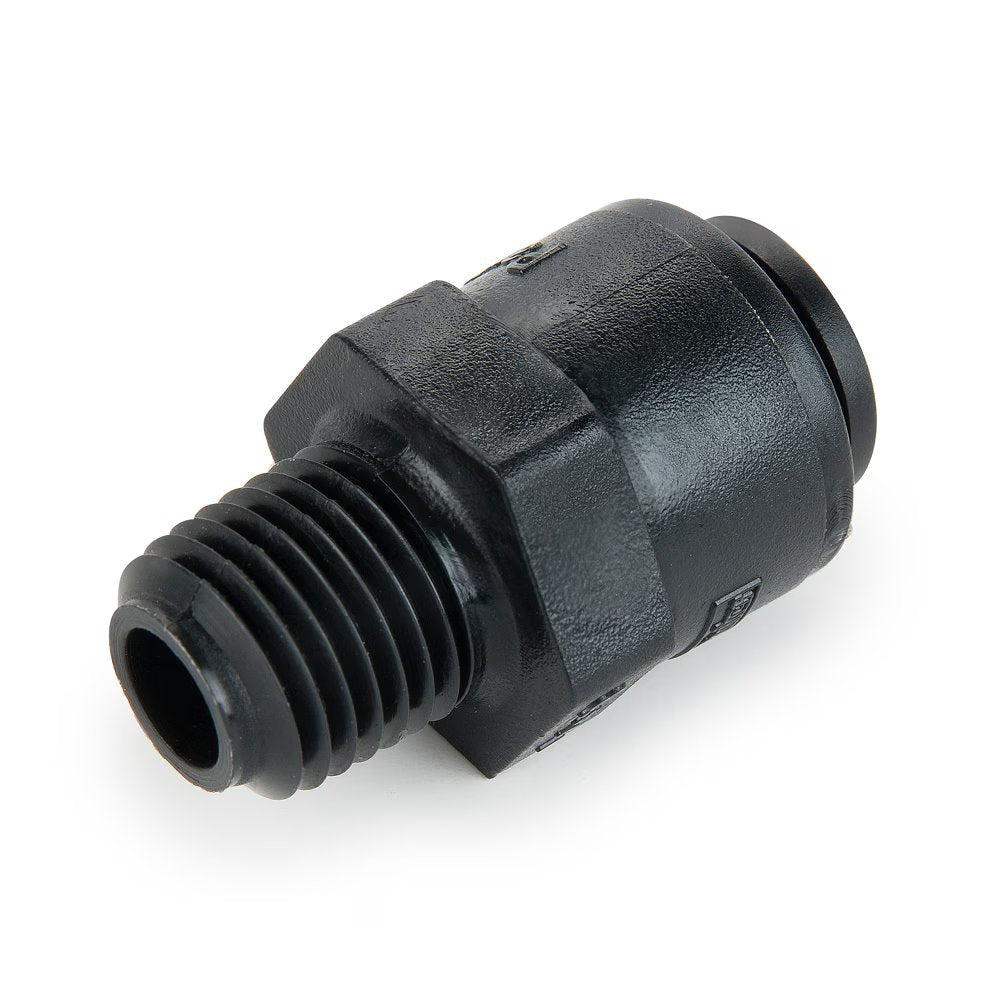

FB6MCVC4-HBLK-05 by Parker | Check Valve | 3/8" Tube OD x 1/4" Male NPTF Thread | Straight | Black | Kynar®

FB6MCVC4-HBLK-05 by Parker | Check Valve | 3/8" Tube OD x 1/4" Male NPTF Thread | Straight | Black | Kynar®

Sale price$17.50

by Parker Hannifin
TrueSeal™ Check Valves:MCVC Kynar® Check Valves
Buy More, Save More!
Quantity Price Each
20–39 $16.45
40–79 $14.88
80+ $13.13
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Shape:

Straight

Ends Configuration:
  • 3/8in Push-to-Connect
  • 1/4in Male NPTF
Product Overview
Push-to-Connect check valves ensure protection against reversal of flow. The valves have an arrow molded into the body to indicate flow direction. Designed for use with thermoplastic or soft metal tubing and intended for liquid applications only.
Materials of Construction
Body Acetal
O-Ring EPDM
Metal Grip Edge 300 Stainless
Specifications
Working Pressure Up to 150 PSI (10.3 bar) depending on tubing used
Temperature Range +34° to +150°F (+1° to +65°C)
Cracking Pressure 1/3 PSI (0.02 bar)
Part Number Tube O.D. NPTF Thread L C Hex Cracking Pressure PSI
FB6MCVC4-HBLK-05 3/8" 1/4" 1.40" 13/16" 0.5

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
