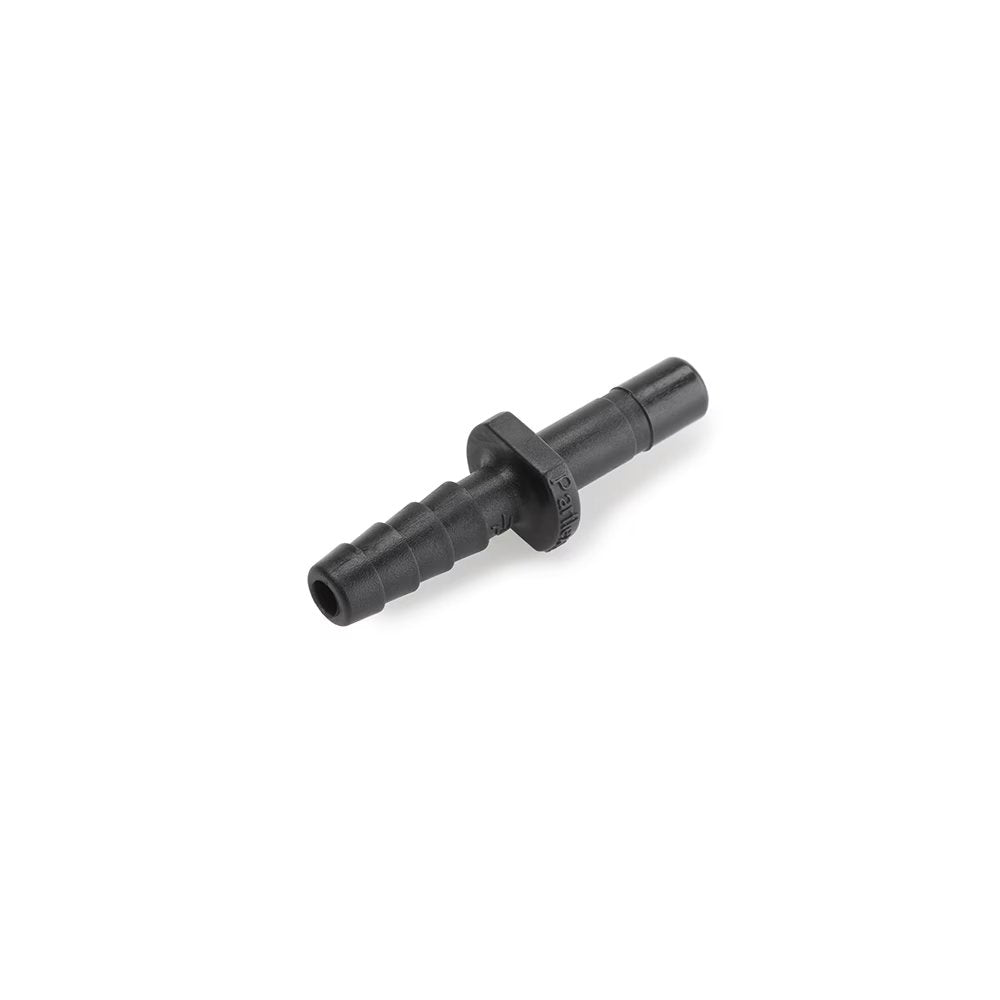

FB4TCB4 by Parker | TrueSeal™ Accessories | 1/4" Tube Stem Connector x 1/4" Barb | 1.67" Length | Straight | Black | Kynar®

FB4TCB4 by Parker | TrueSeal™ Accessories | 1/4" Tube Stem Connector x 1/4" Barb | 1.67" Length | Straight | Black | Kynar®

Sale price$2.18

by Parker Hannifin
TrueSeal™ Fittings:TCB - Tube-to-Barb Connector
Buy More, Save More!
Quantity Price Each
20–39 $2.05
40–79 $1.85
80+ $1.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • TCB Series
Shape:

Straight
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Tube Stem O.D. Tube I.D. Overall Length (L) Flow Diameter (D)
A4TCB4 PPB4TCB4 PP4TCB4 FB4TCB4 1/4" 1/4" 1.67" .140"
A6TCB4 - - FB6TCB4 3/8" 1/4" 1.82" .140"
A6TCB6 PPB6TCB6 PP6TCB6 FB6TCB6 3/8" 3/8" 1.98" .250"
A8TCB6 - - - 1/2" 3/8" 2.10" .250"
A8TCB8 - - FB8TCB8 1/2" 1/2" 2.10" .375"
