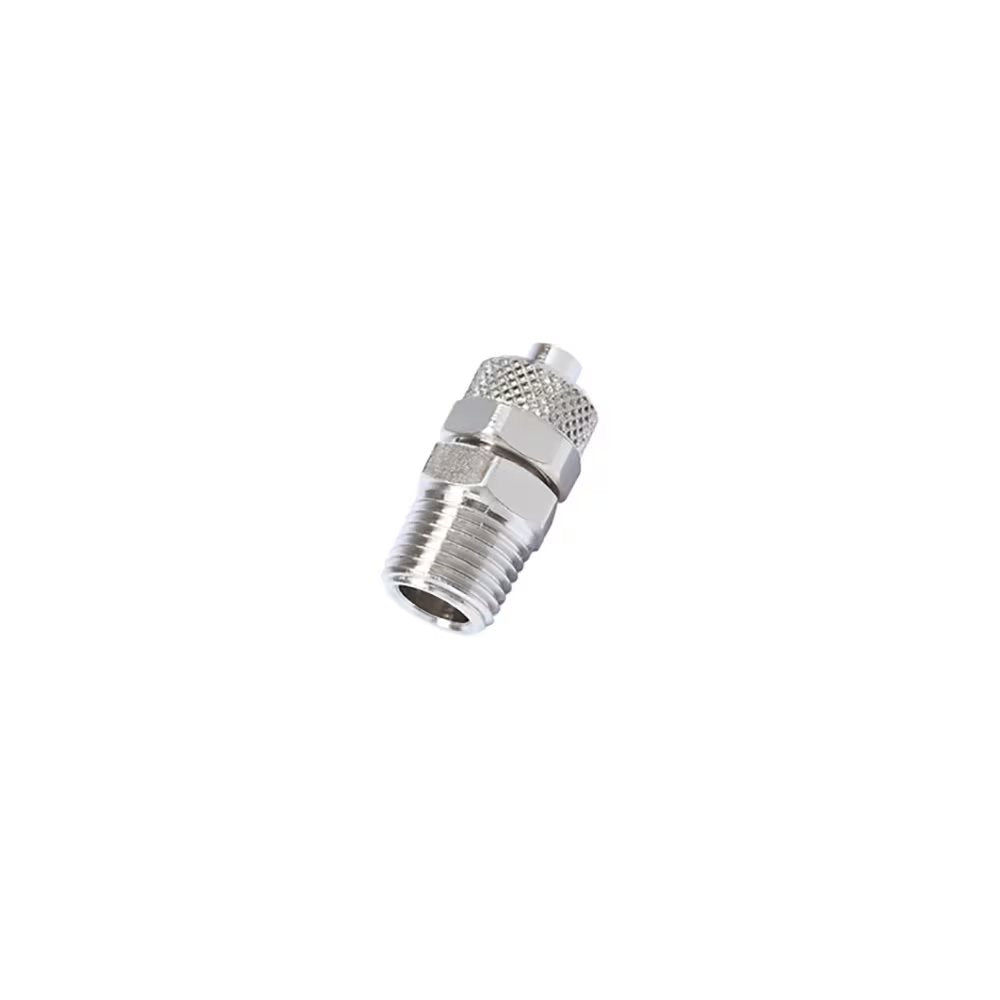

F3BPL8/10-3/8 by Parker | Legris Stud Fitting | 8x10 mm Tube OD x 3/8" Male BSPT Thread | 17 mm Hex (F) | 16 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 20

F3BPL8/10-3/8 by Parker | Legris Stud Fitting | 8x10 mm Tube OD x 3/8" Male BSPT Thread | 17 mm Hex (F) | 16 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 20

Sale price$407.44

by Parker Hannifin
Nickel-Plated Brass Spigot Fitting:F3BPL Stud Fitting, Male BSPT Thread

Package Quantity: 20 Units

Buy More, Save More!
Quantity Price Each
5–14 $382.99
15–29 $346.32
30+ $305.58
Discounts applied in cart/checkout.

Product Data:

Series:
  • F3BPL Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 18 bar BPLM-M nut
    Vacuum to40 bar with BPLM nut
  • Working Temperature: -40°C to +100°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (99% vacuum).
Advantages:
  • Full flow sealing system
  • Compatible with flexible and semi-rigid tubes (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
  • Reliable direct sealing system without the use of a seal or olive
  • Nickel-plated for increased corrosion resistance
Component Materials:
  • Body: Nickel-plated brass
  • Nut: Nickel-plated brass
Part Number ØD C F F1 H Kg
F3BPL4/6-1/8 4x6 mm 1/8" 12 mm 12 mm 19.5 mm .016 Kg
F3BPL4/6-1/4 4x6 mm 1/4" 14 mm 12 mm 20 mm .025 Kg
F3BPL6/8-1/8 6x8 mm 1/8" 12 mm 14 mm 19.5 mm .019 Kg
F3BPL6/8-1/4 6x8 mm 1/4" 14 mm 14 mm 20 mm .026 Kg
F3BPL8/10-1/4 8x10 mm 1/4" 14 mm 16 mm 21.5 mm .031 Kg
F3BPL8/10-3/8 8x10 mm 3/8" 17 mm 16 mm 21.5 mm .043 Kg

Compatible with BPLM-M nut only
