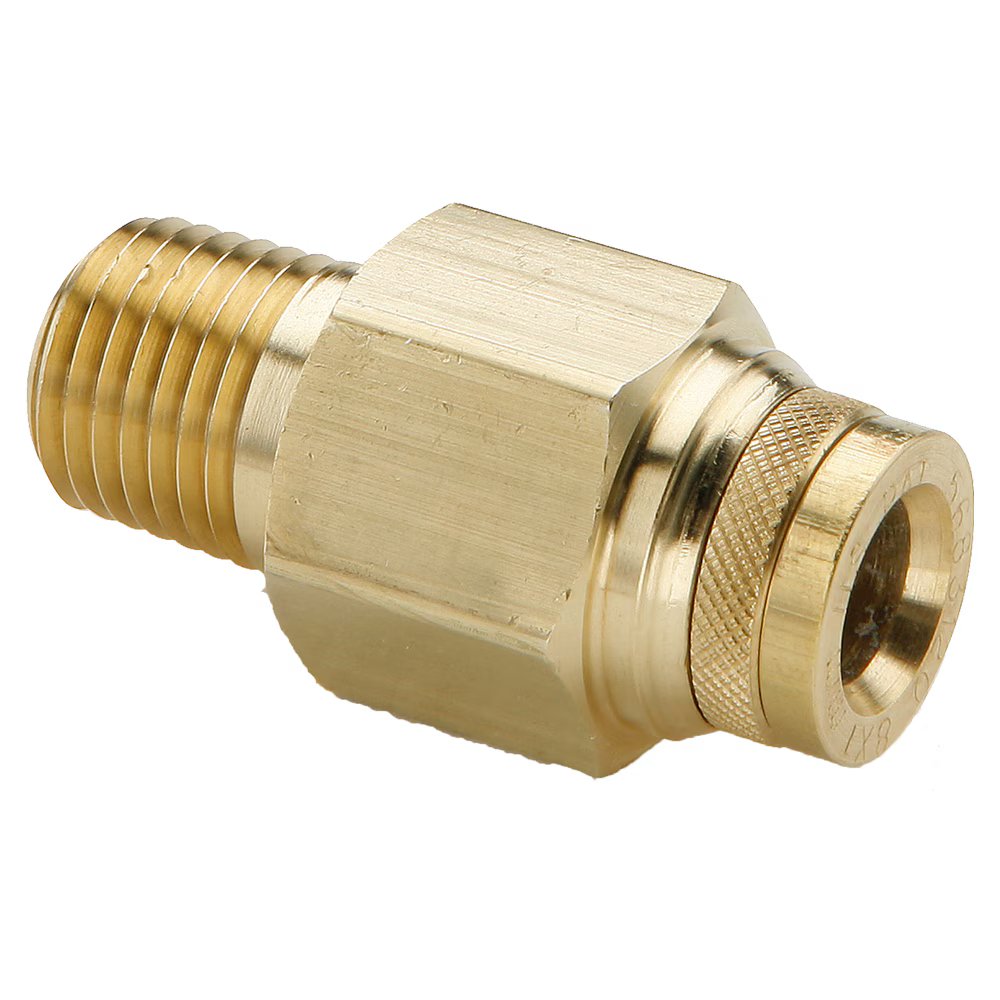

F2PMTB8-1/8 by Parker | Threaded Fitting | 8mm Push-to-Connect Connector x 1/8" Male Pipe Thread | 33.79mm Length | Straight | Brass | Pack of 10

F2PMTB8-1/8 by Parker | Threaded Fitting | 8mm Push-to-Connect Connector x 1/8" Male Pipe Thread | 33.79mm Length | Straight | Brass | Pack of 10

Sale price$373.89

by Parker Hannifin
Metric Prestomatic Fittings:Male Connector F2PMTB

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $351.46
15–29 $317.81
30+ $280.42
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Prestomatic
Series:
  • F2PMTB Series
Shape:

Straight
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets DIN 74324
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • DIN 73378 Virgin Nylon
  • SAE J844 Type A & B nylon tubing
Part Number Tube Pipe Thread L Hex Flow Diameter (D)
F2PMTB8-1/8 8 mm 1/8" 33.79 mm 19 mm 4.90 mm
F2PMTB10-1/4 8 mm 1/4" 33.79 mm 19 mm 4.90 mm
