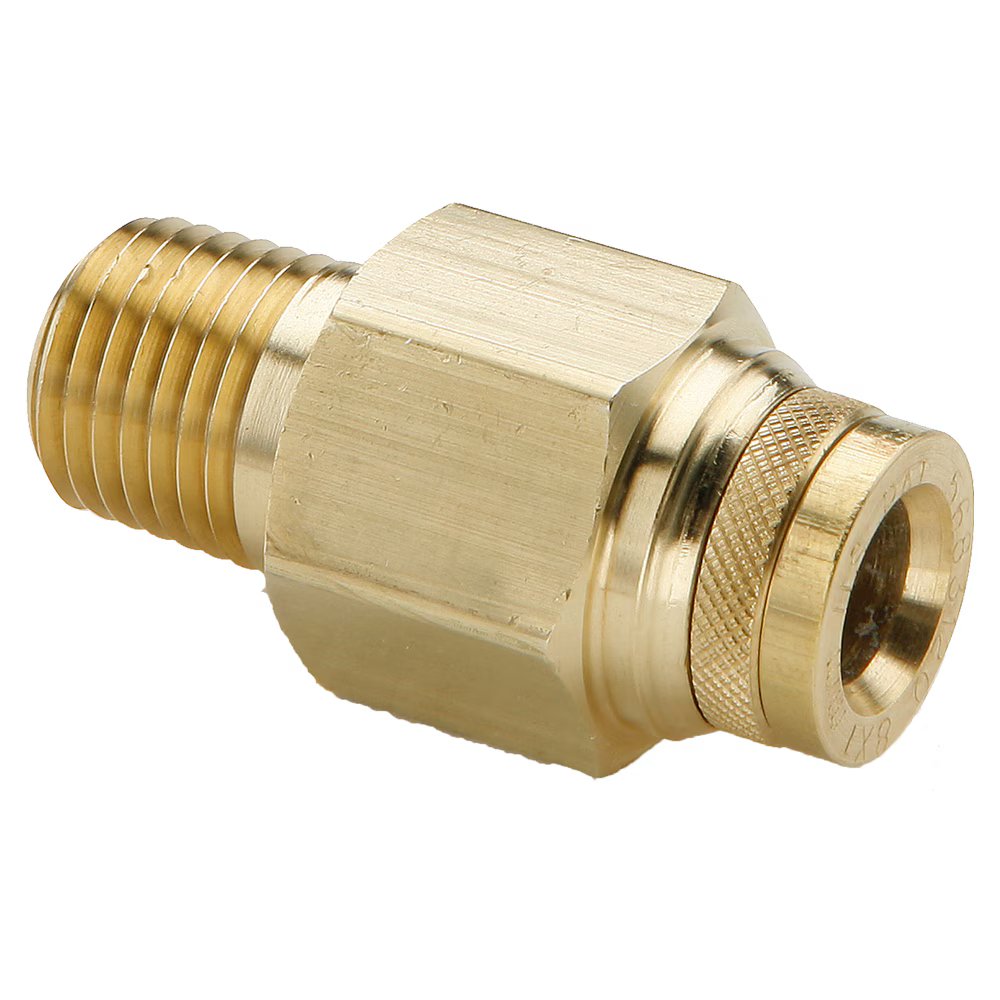

F2PMTB10-1/4 by Parker | Threaded Fitting | 10mm Push-to-Connect Connector x 1/4" Male Pipe Thread | 36.83mm Length | Straight | Brass

F2PMTB10-1/4 by Parker | Threaded Fitting | 10mm Push-to-Connect Connector x 1/4" Male Pipe Thread | 36.83mm Length | Straight | Brass

Sale price$82.22

by Parker Hannifin
Metric Prestomatic Fittings:Male Connector F2PMTB
Buy More, Save More!
Quantity Price Each
5–19 $77.29
20–59 $69.89
60+ $61.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Prestomatic
Series:
  • F2PMTB Series
Shape:

Straight
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets DIN 74324
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • DIN 73378 Virgin Nylon
  • SAE J844 Type A & B nylon tubing
Part Number Tube Pipe Thread L Hex Flow Diameter (D)
F2PMTB8-1/8 8 mm 1/8" 33.79 mm 19 mm 4.90 mm
F2PMTB10-1/4 8 mm 1/4" 33.79 mm 19 mm 4.90 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
