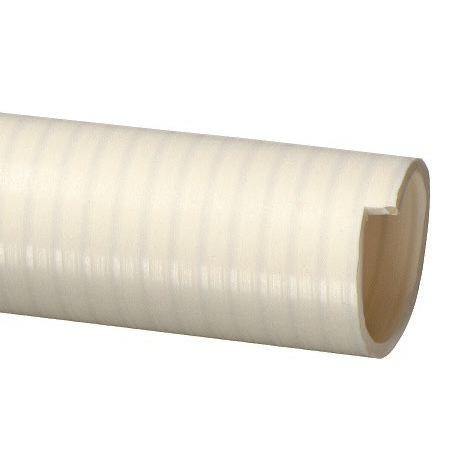

F16MCRX100 Tigerflex by Kuriyama | FMCR Series | Spa Hose | Suction Hose | 1/2" ID | PVC | 100ft Length

F16MCRX100 Tigerflex by Kuriyama | FMCR Series | Spa Hose | Suction Hose | 1/2" ID | PVC | 100ft Length

Sale price$171.41

Kuriyama Tigerflex FMCR™ Series Spa Hose - PVC Suction Hose

Package Quantity: 100 FT

In stock
Buy More, Save More!
Quantity Price Each
5–19 $161.13
20–59 $145.70
60+ $128.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • FMCR Series
Color(s):
  • White/Off-White

SPECIFICATIONS

Application: Commonly referred to as "flex pipe", Drain lines, Spa, Pool and hot tub plumbing SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications IAPMO(07), RoHS(10)
Other Features:
  • Precision Controlled OD - Designed to be glued into Schedule 40 PVC fittings.
  • IAPMO(07) Approved - Approved for use piping spas, hot tubs and swimming pools.
  • Easy Installation - Ideal for working in confi ned areas. Permits installers to make smooth, tight turns. Requires fewer fittings than rigid pipe when plumbing a normal spa or hot tub application.
  • Product Warning: Like other materials, Spa Hoses can be damaged by rodents or insects, including termites. Kuriyama's warranty does not cover damages caused by them. Spa Hose should not be used underground in areas infested by termites. This product warning shall be given to every purchaser of Spa Hose. (Rev. 7/98)
Part Number IPS Size OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
F16MCRX100 1/2" 0.850" 21.50mm 100 PSI 70 PSI 28 in.Hg 26 in.Hg 2" 100ft 0.14 lbs
F16MCRX50 1/2" 0.850" 21.50mm 100 PSI 70 PSI 28 in.Hg 26 in.Hg 2" 50ft 0.14 lbs
F20MCRX100 3/4" 1.053" 26.75mm 100 PSI 70 PSI 28 in .Hg 26 in .Hg 2" 100ft 0.21 lbs
F20MCRX50 3/4" 1.053" 26.75mm 100 PSI 70 PSI 28 in .Hg 26 in .Hg 2" 50ft 0.21 lbs
F27MCRX100 1" 1.320" 33.52mm 100 PSI 70 PSI 28 in .Hg 24 in .Hg 3" 100ft 0.28 lbs
F27MCRX50 1" 1.320" 33.52mm 100 PSI 70 PSI 28 in .Hg 24 in .Hg 3" 50ft 0.28 lbs
F36MCRX100 1-1/4" 1.663" 42.25mm 80 PSI 55 PSI 28 in .Hg 24 in .Hg 4" 100ft 0.37 lbs
F36MCRX50 1-1/4" 1.663" 42.25mm 80 PSI 55 PSI 28 in .Hg 24 in .Hg 4" 50ft 0.37 lbs
F42MCRX100 1-1/2" 1.904" 48.35mm 70 PSI 50 PSI 28 in .Hg 24 in .Hg 4" 100ft 0.44 lbs
F42MCRX50 1-1/2" 1.904" 48.35mm 70 PSI 50 PSI 28 in .Hg 24 in .Hg 4" 50ft 0.44 lbs
F52MCRX100 2" 2.381" 60.48mm 70 PSI 50 PSI 28 in .Hg 24 in .Hg 6" 100ft 0.58 lbs
F52MCRX50 2" 2.381" 60.48mm 70 PSI 50 PSI 28 in .Hg 24 in .Hg 6" 50ft 0.58 lbs
F78MCRX50* 3" 3.500" 89.00mm 65 PSI 40 PSI 28 in .Hg 22 in .Hg 8" 50ft 1.20 lbs
*This item is not IAMPO listed Actual service temperature range is application dependent. NOTE: Service life may vary depending on operating conditions and type of material being conveyed. NOTE: Use with recommended primers and PVC cements; consult with glue supplier for recommendations. Coils of Tigerflex® Spa Hose should not be stacked more than five coils high. Hose which has been stacked high may be damaged over time.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
