F-DINHX-08-24 by Kurt Hydraulics | Female DIN Heavy Universal Seat | Swivel | for 1/2" Hose ID

F-DINHX-08-24 by Kurt Hydraulics | Female DIN Heavy Universal Seat | Swivel | for 1/2" Hose ID

Sale price$15.69

by Kurt Hydraulics
F-DINHX - Din Heavy Universal Seat Female Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $14.75
40–79 $13.34
80+ $11.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • S24 Female DIN

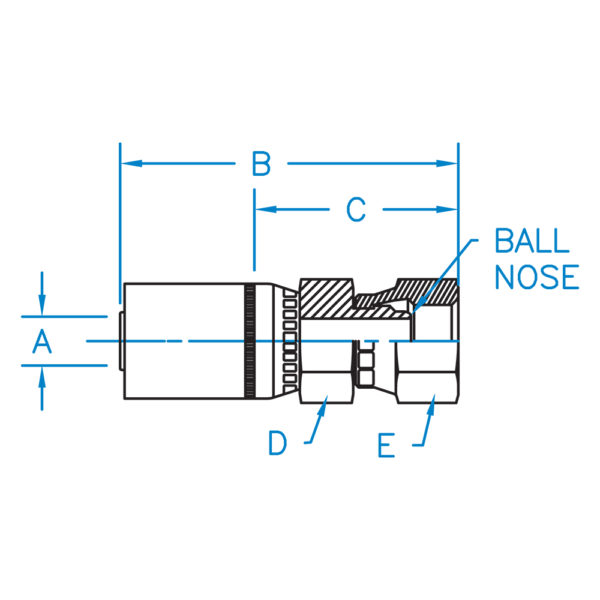

Part Number A B C D E Hose ID
(In)		 Thread
F-DINHX-04-16 0.250 N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DINHX-04-18 0.250 2.481 1.226 5/8 15/16 1/4" M18 X 1.5
F-DINHX-06-16 0.375 N/A N/A N/A 7/8 3/8" M16 X 1.5
F-DINHX-06-20 0.375 N/A N/A N/A 15/16 3/8" M20 X 1.5
F-DINHX-06-22 0.375 2.772 1.272 3/4 1-1/16 3/8" M22 X 1.5
F-DINHX-08-20 0.500 N/A N/A N/A 15/16 1/2" M20 X 1.5
F-DINHX-08-24 0.500 2.842 1.340 7/8 1-3/16 1/2" M24 X 1.5
F-DINHX-10-30 0.625 3.335 1.835 1-1/8 1-7/16 5/8" M30 X 2.0
F-DINHX-12-30 N/A N/A N/A N/A N/A N/A N/A
F-DINHX-12-36 0.750 3.433 1.840 1-5/16 1.3/4 3/4" M36 X 2.0
F-DINHX-16-42 1.000 3.670 1.936 1-1/2 2.000 1.000" M42 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
