F-BSPX90-0608-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Female BSPP Swivel | 90° Elbow | Carbon Steel
Kurt Hydraulics
Female British Pipe 90° Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $56.39 |
| 40–79 | $50.99 |
| 80+ | $44.99 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):

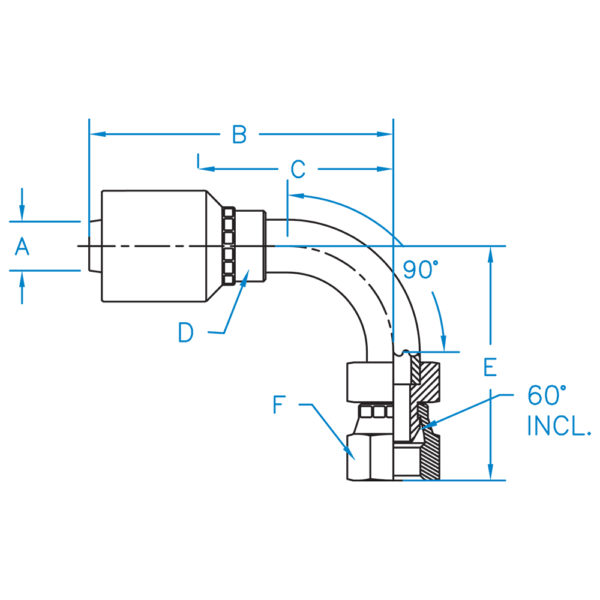

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-BSPX90-0404-K2 | 1/4" | 2.70" | 1.64" | 5/8" | 1.33" | 3/4" | 1/4 – 19 |
| F-BSPX90-0406-K2 | 1/4" | 2.84" | 1.78" | 5/8" | 1.79" | 3/4" | 3/8 – 19 |
| F-BSPX90-0606-K2 | 3/8" | 3.17" | 1.80" | 3/4" | 1.79" | 7/8" | 3/8 – 19 |
| F-BSPX90-0608-K2 | 3/8" | 3.32" | 2.09" | 3/4" | 1.95" | 1" | 1/2 – 14 |
| F-BSPX90-0808-K2 | 1/2" | 3.49" | 2.15" | 7/8" | 1.95" | 1" | 1/2 – 14 |
