F-BSPX-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Female BSPP | Carbon Steel
Kurt Hydraulics
Female British Pipe Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.85 |
| 40–79 | $34.23 |
| 80+ | $30.20 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

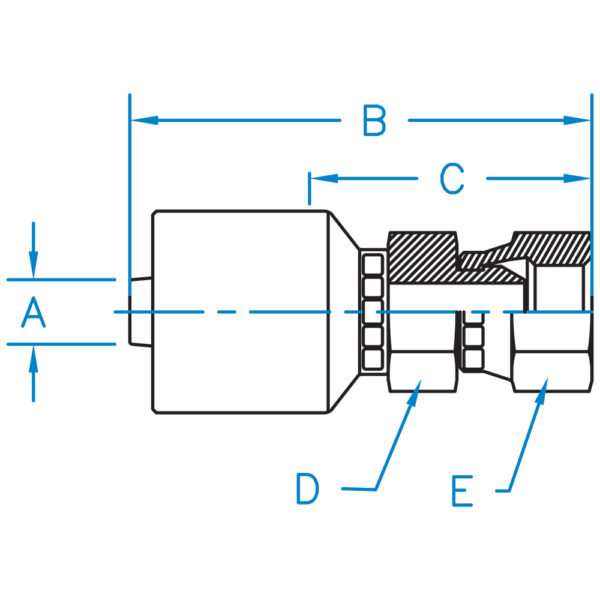

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| F-BSPX-04-02-K2 | 1/4" | 2.03" | 0.97" | 9/16" | 9/16" | 1/8 – 28 |
| F-BSPX-04-04-K2 | 1/4" | 2.06" | 0.98" | 9/16" | 3/4" | 1/4 – 19 |
| F-BSPX-04-06-K2 | 1/4" | 2.16" | 1.10" | 5/8" | 7/8" | 3/8 – 19 |
| F-BSPX-06-04-K2 | 3/8" | 2.54" | 1.17" | 11/16" | 3/4" | 1/4 – 19 |
| F-BSPX-06-06-K2 | 3/8" | 2.33" | 1.10" | 3/4" | 7/8" | 3/8 – 19 |
| F-BSPX-06-08-K2 | 3/8" | 2.65" | 1.28" | 3/4" | 1" | 1/2 – 14 |
| F-BSPX-08-06-K2 | 1/2" | 2.68" | 1.34" | 7/8" | 7/8" | 3/8 – 19 |
| F-BSPX-08-08-K2 | 1/2" | 2.66" | 1.32" | 7/8" | 1" | 1/2 – 14 |
| F-BSPX-08-10-K2 | 1/2" | 2.94" | 1.60" | 7/8" | 1-1/8" | 5/8 – 14 |
