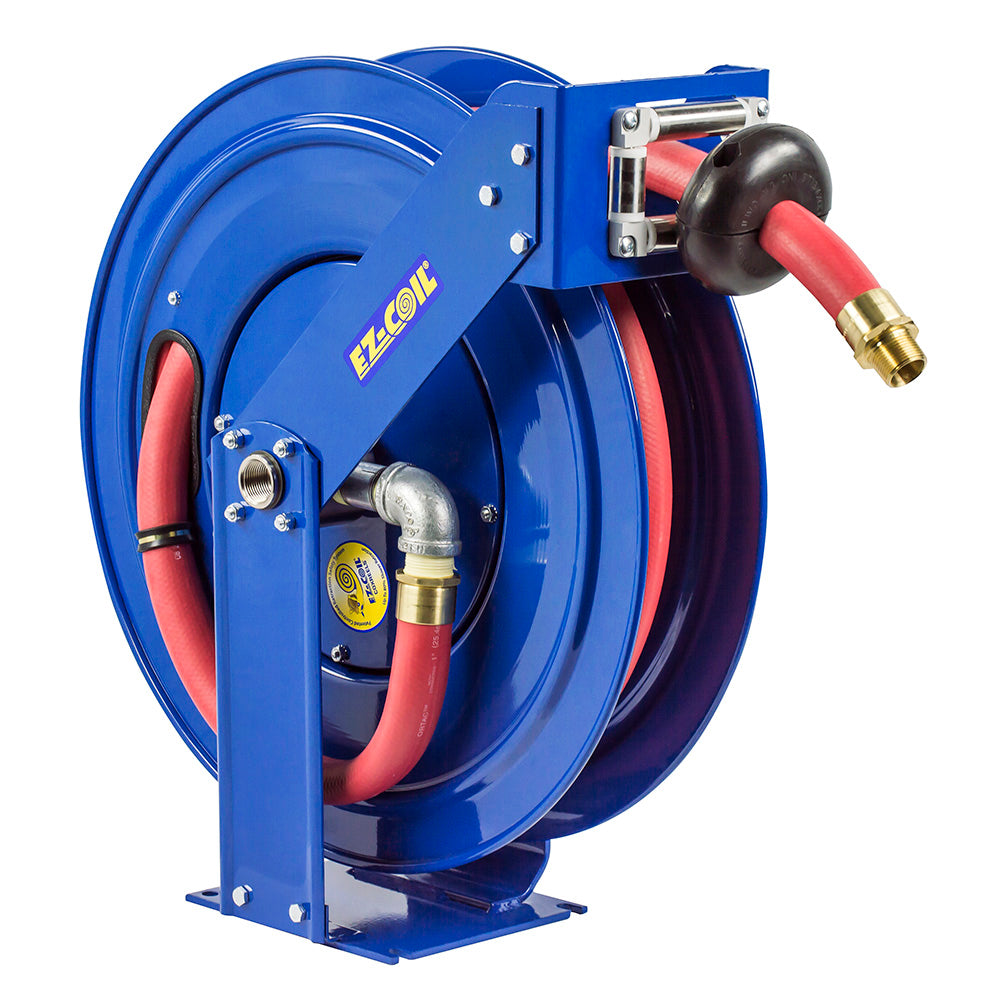

EZ-TSHFL-550 by Coxreels | EZ-T-Fuel Series | 300 PSI EZ-Coil Safety Spring Driven Hose Reel for Fuel | 3/4" Hose ID, 3/4" FNPT Inlet | Steel | 50ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
EZ-Coil® hose reel
Coxreels EZ-T-Fuel Series EZ-Coil® Hose Reels
Steel dual-pedestal EZ-Coil® spring driven hose reels for fuel delivery, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Fuel Delivery
2
What are the key specifications?
Construction & Finish
Steel, dual-pedestal
CPC™ powder coat
Swivel
Brass 90° full-flow with Nitrile seals
Inlet
3/4" FNPT
Max Temperature
190°F
Bearings
1" Permanently Lubricated Precision Bearings
Mounting Holes
Ø0.5"
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for fuel dispensing applications.
- EZ-Coil® Equipped — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ triple axle support system.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Hose | Reel W × H × L (in) |
|---|---|---|---|---|---|
| EZ-TSHF-535 | 3/4" | 35 ft | 300 | Nitrile Synthetic Rubber, RMA Class A | 9.375 × 25.5 × 24 |
| EZ-TSHF-550 | 3/4" | 50 ft | 300 | Nitrile Synthetic Rubber, RMA Class A | 9.375 × 25.5 × 24 |
| EZ-TSHFL-550 | 3/4" | 50 ft | 300 | Less hose | 7.875 × 25.5 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model except EZ-TSHFL-550 | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections — fit every model except EZ-TSHFL-550 | ||
| 5155-1.5 | 18" inlet hose | |
| 385 | 90° inlet elbow (brass) | |
| Hose end — fit every model except EZ-TSHFL-550 | ||
| 430 | Hose/cord stop | |
| 398-1 | Spiral hose/cord guard | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Additional Product Data:
Series:
Internal Diameter:
MAWP:
300
Material(s):
Seal Material(s):
