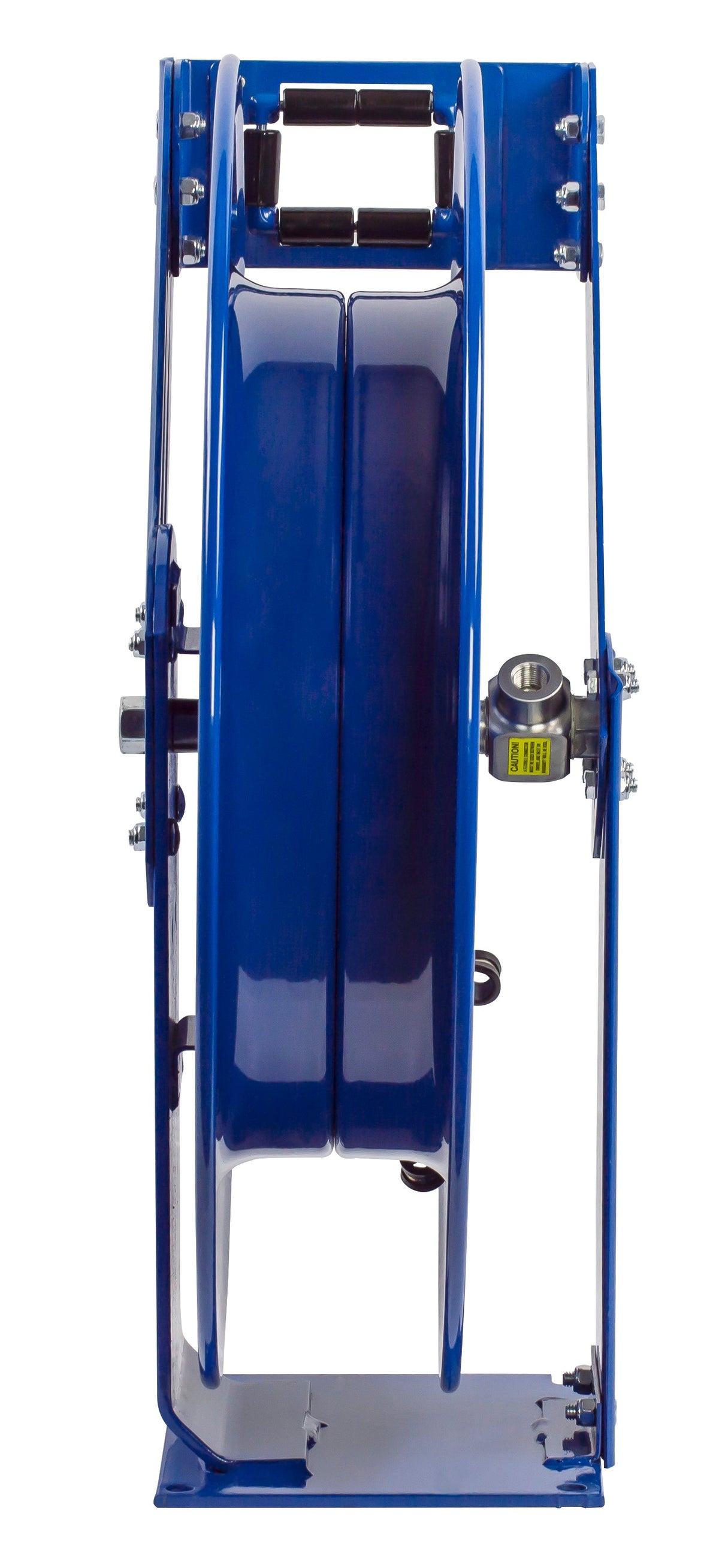

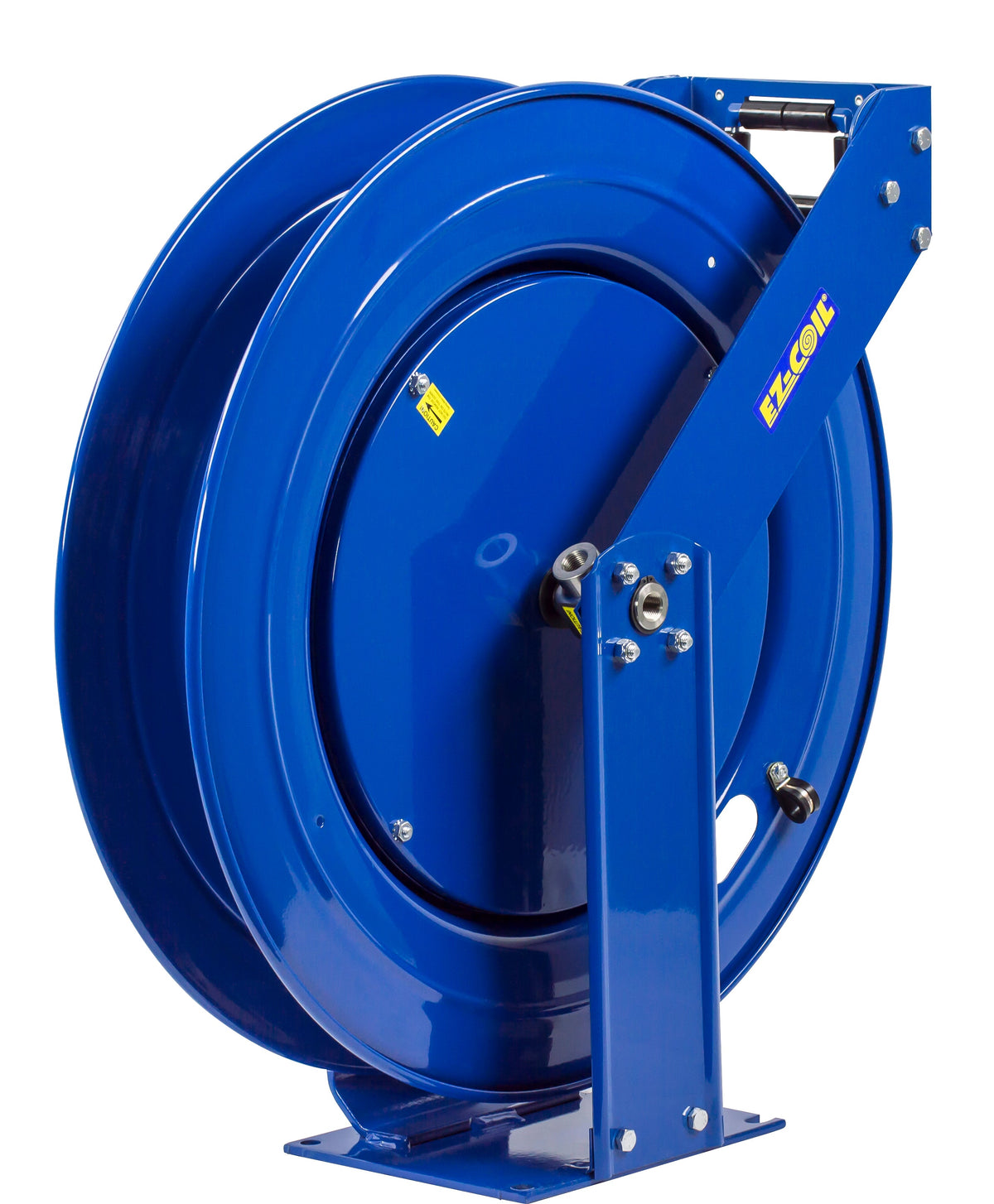

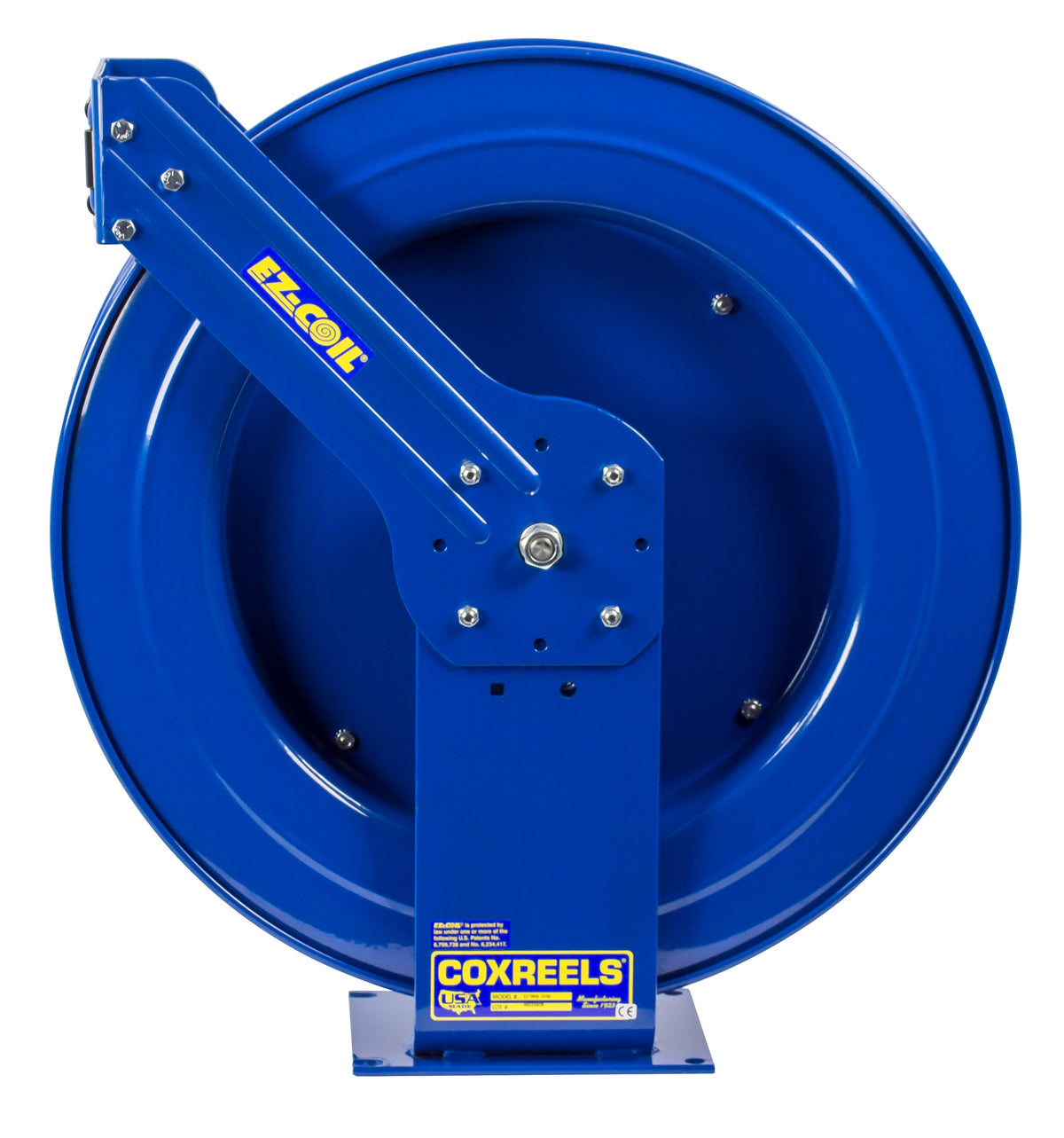

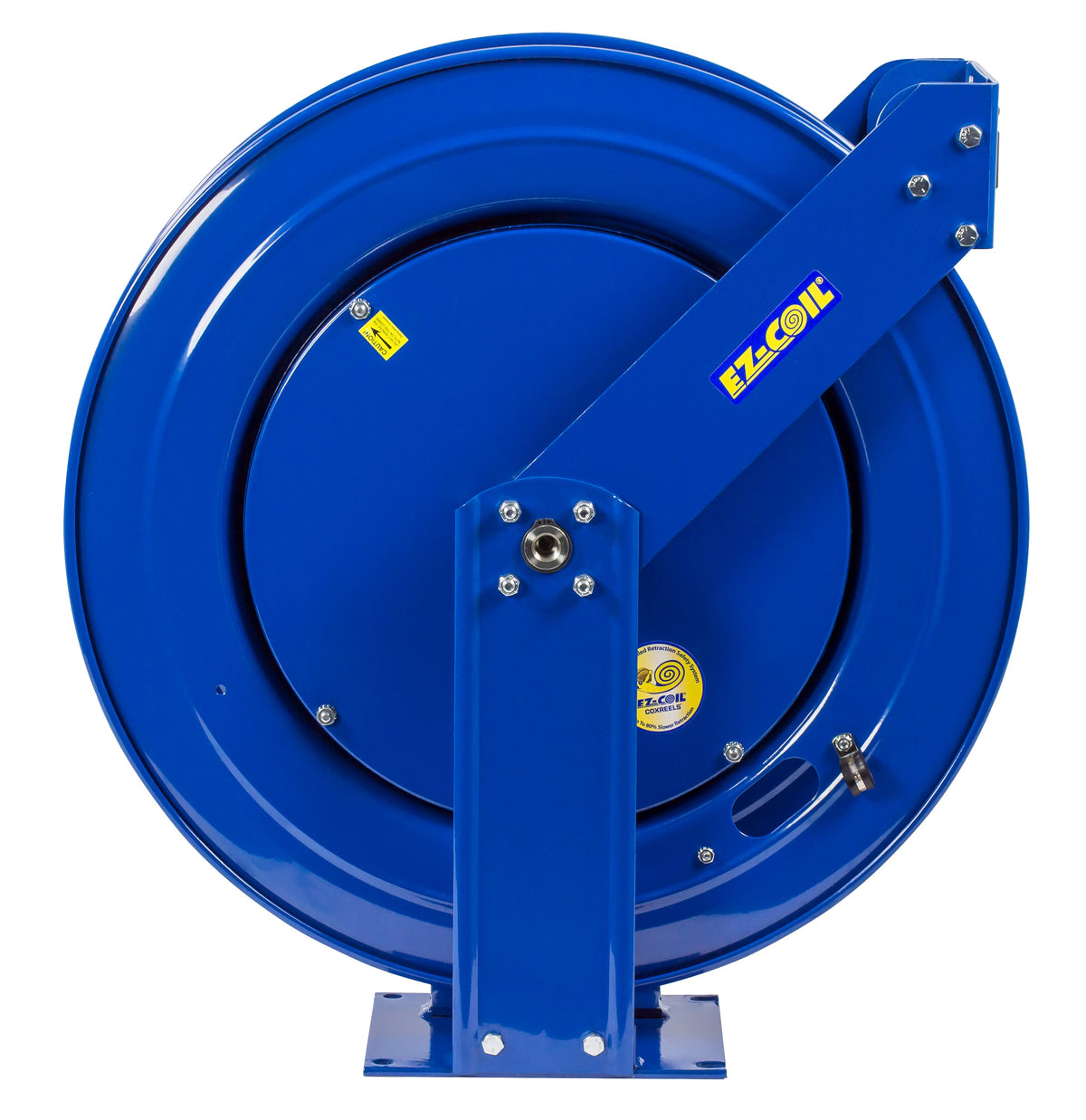

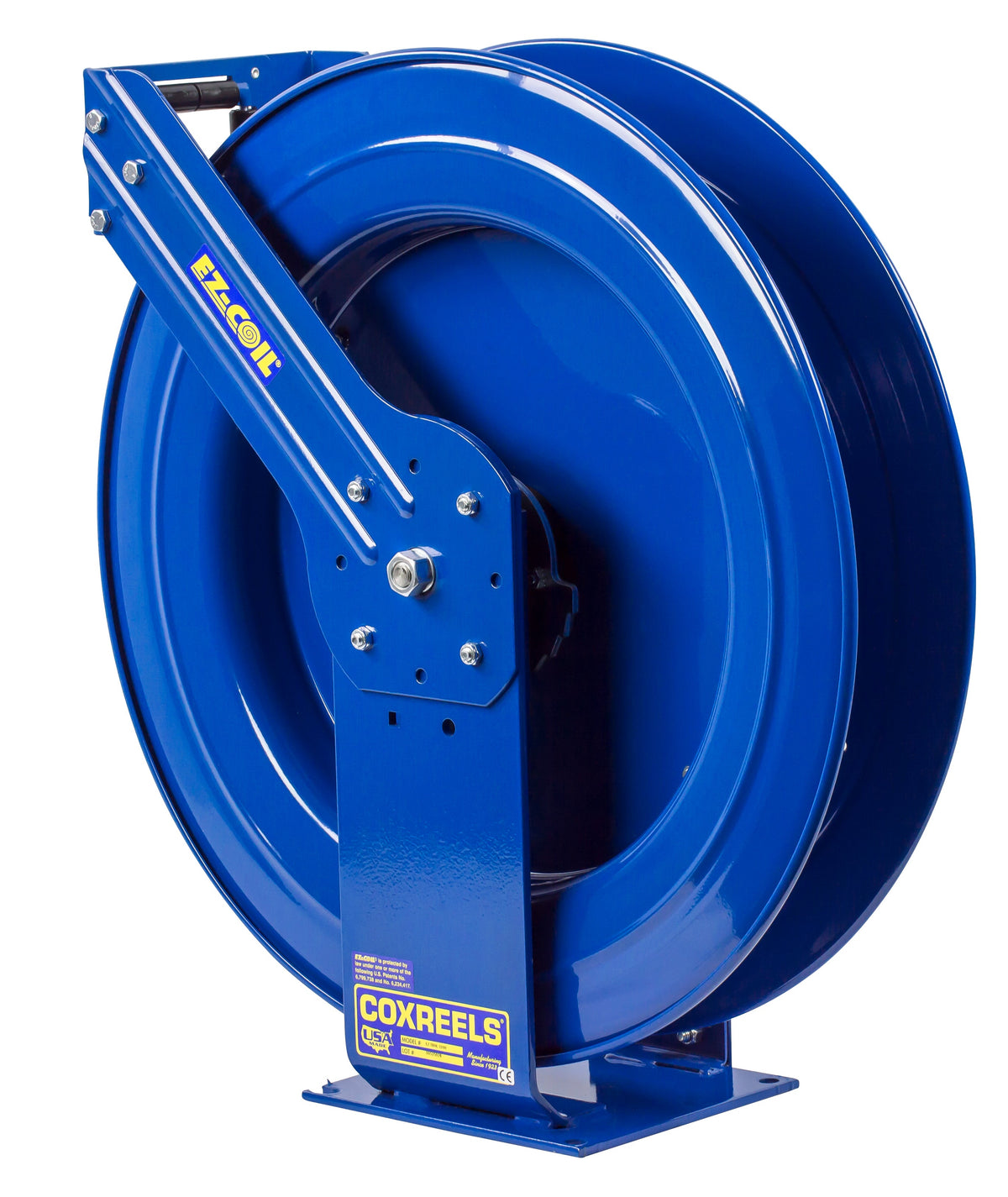

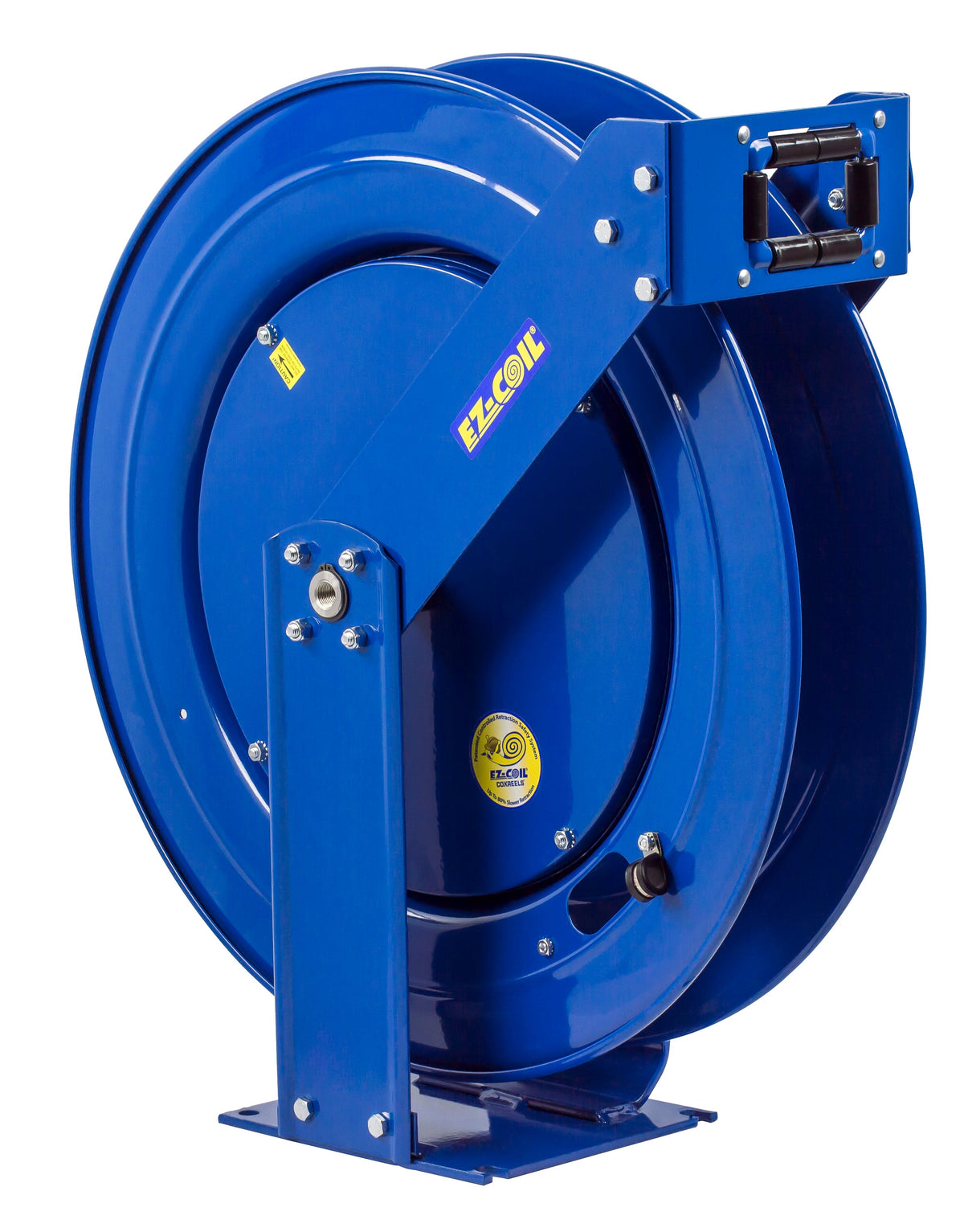

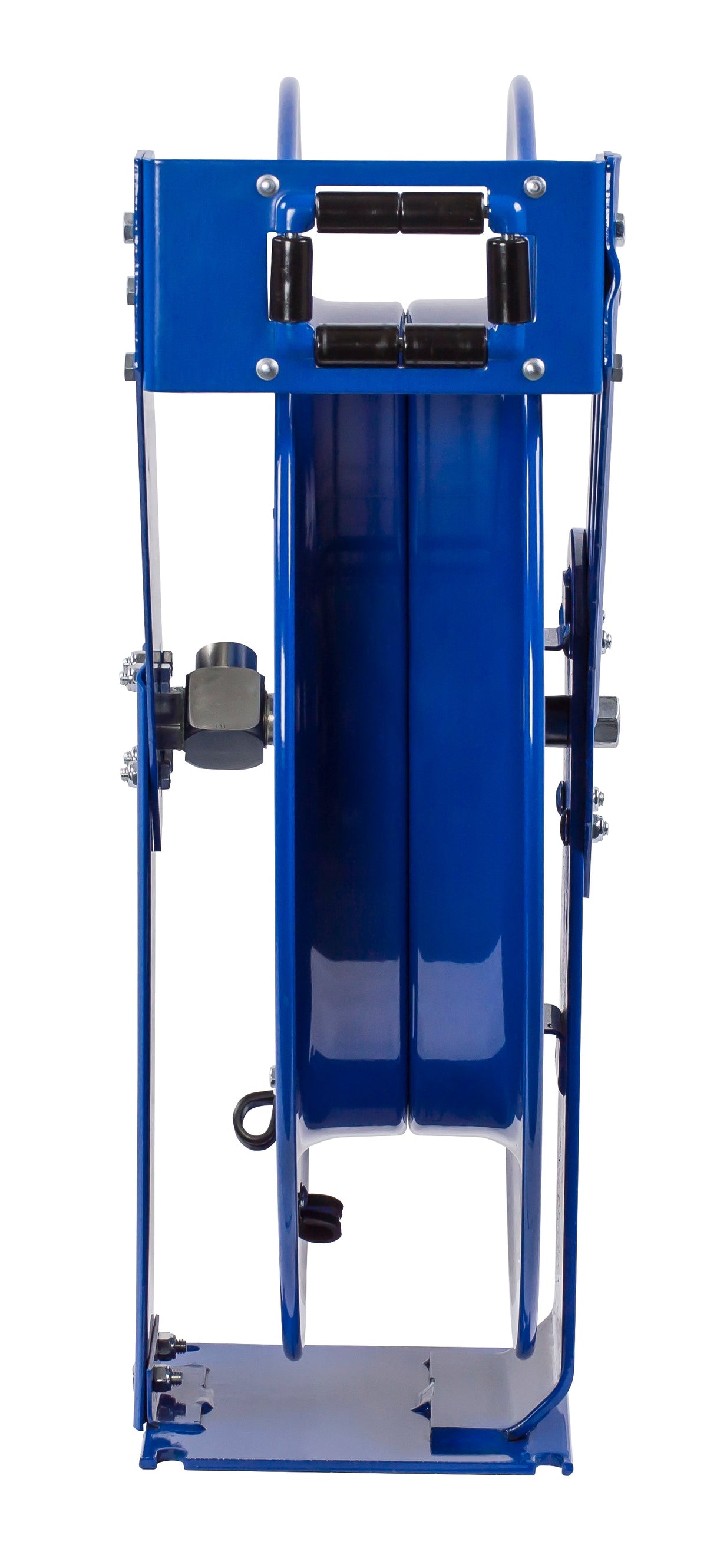

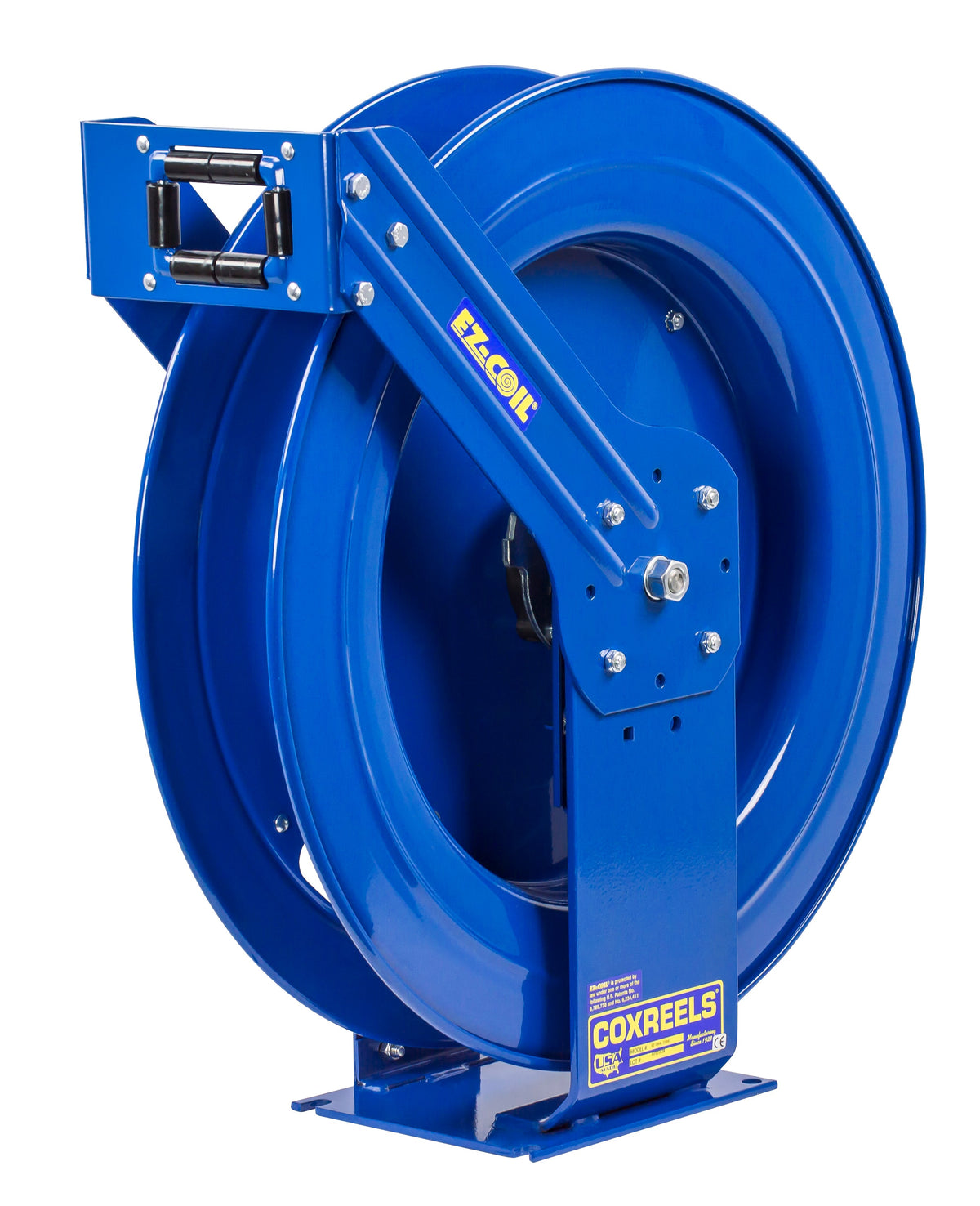

EZ-TBHL-3100 by Coxreels | T Pure Flow Series | 6,000 PSI EZ-Coil Safety Spring Driven Hose Reel for Breathing Air & Clean Fluids | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Coxreels T Pure Flow Series EZ-Coil® Hose Reels
Steel dual-pedestal EZ-Coil® spring driven hose reels for potable water, clean fluids and breathing air, rated to 6,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Potable Water
- Clean Fluids
- Breathing Air
2
What are the key specifications?
Steel, dual-pedestal
Stainless Steel 90° full-flow with Nitrile Non-Toxic Grease seals
3/8" FNPT
150°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
9.375 × 25.5 × 24 in
3
What are the main product features?
- Swivel — Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90˚ full-flow NPT swivel inlet.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- Safety Storage — Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI |
|---|---|---|---|
| Low Pressure | |||
| EZ-TBLL-3100 | 3/8" | 100 ft | 300 |
| High Pressure | |||
| EZ-TBHL-3100 | 3/8" | 100 ft | 6,000 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections — fit every model except EZ-TBHL-3100 | ||
| 5153-1.5 | 18" inlet hose | |
| 208 | 90° inlet elbow (brass) | |
| Hose end | ||
| 131-3 | Hose/cord stop | Every model |
| 10759-2 | Quick disconnect | Every model except EZ-TBHL-3100 |
| 237-1 | Spiral hose/cord guard | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BGX is -GGX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BGX | BSP swivel with Nitrile |
| -BZX | Less swivel |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| Other | |
| -BXC | Constant Tension |
| -BXB | Bend Restrictor |
7
Where can I find product documents?
T Pure Flow Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
