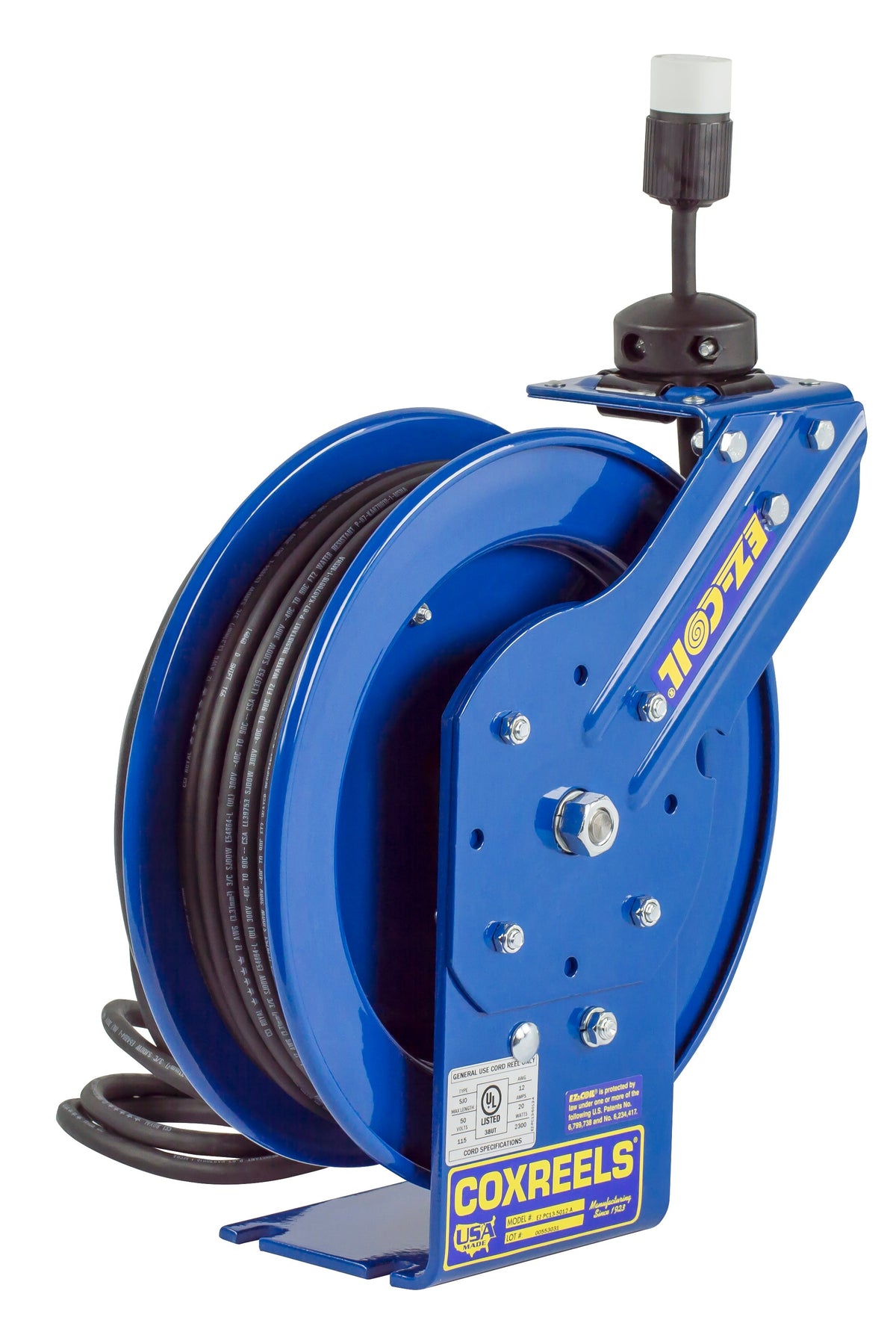

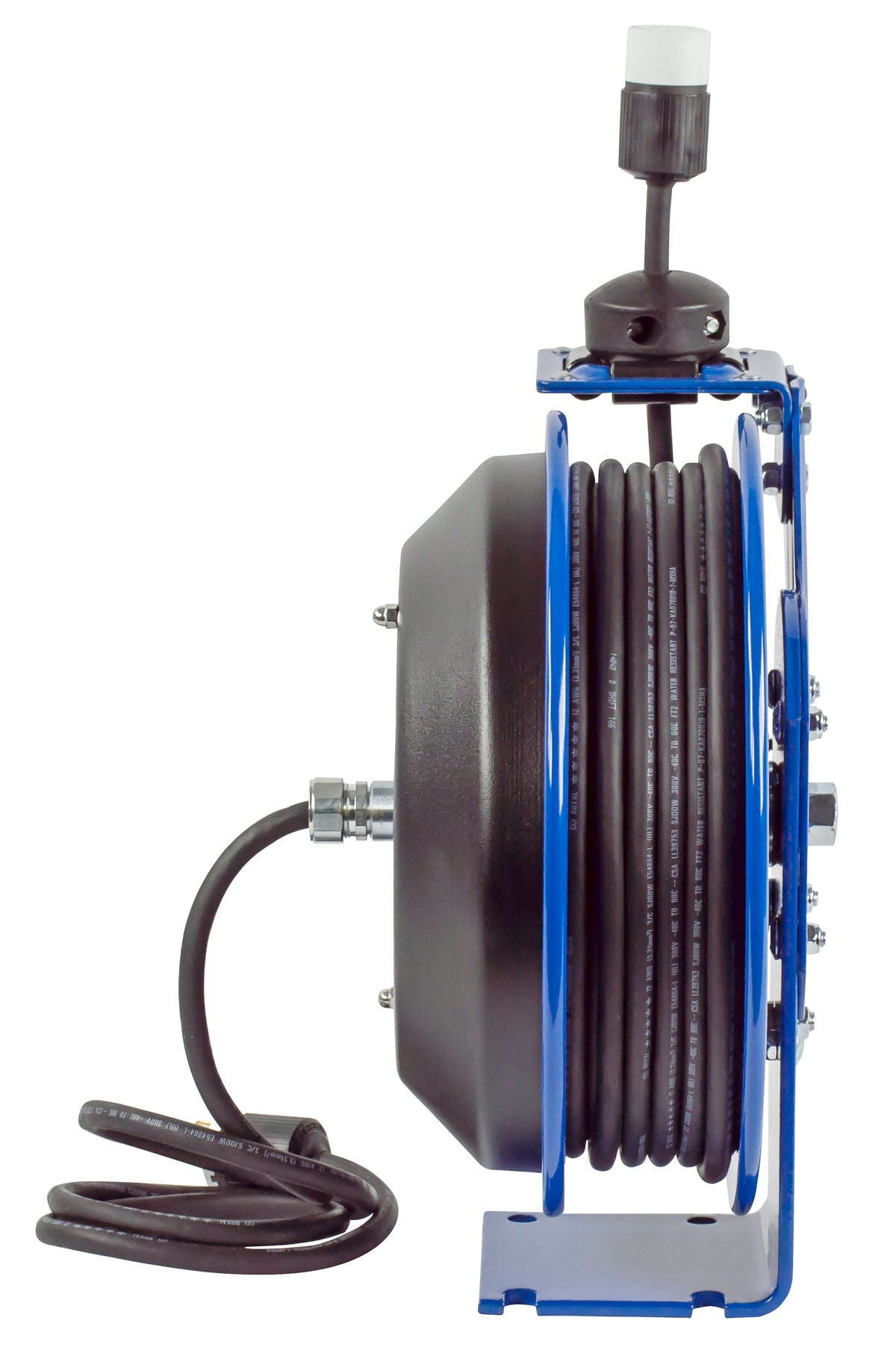

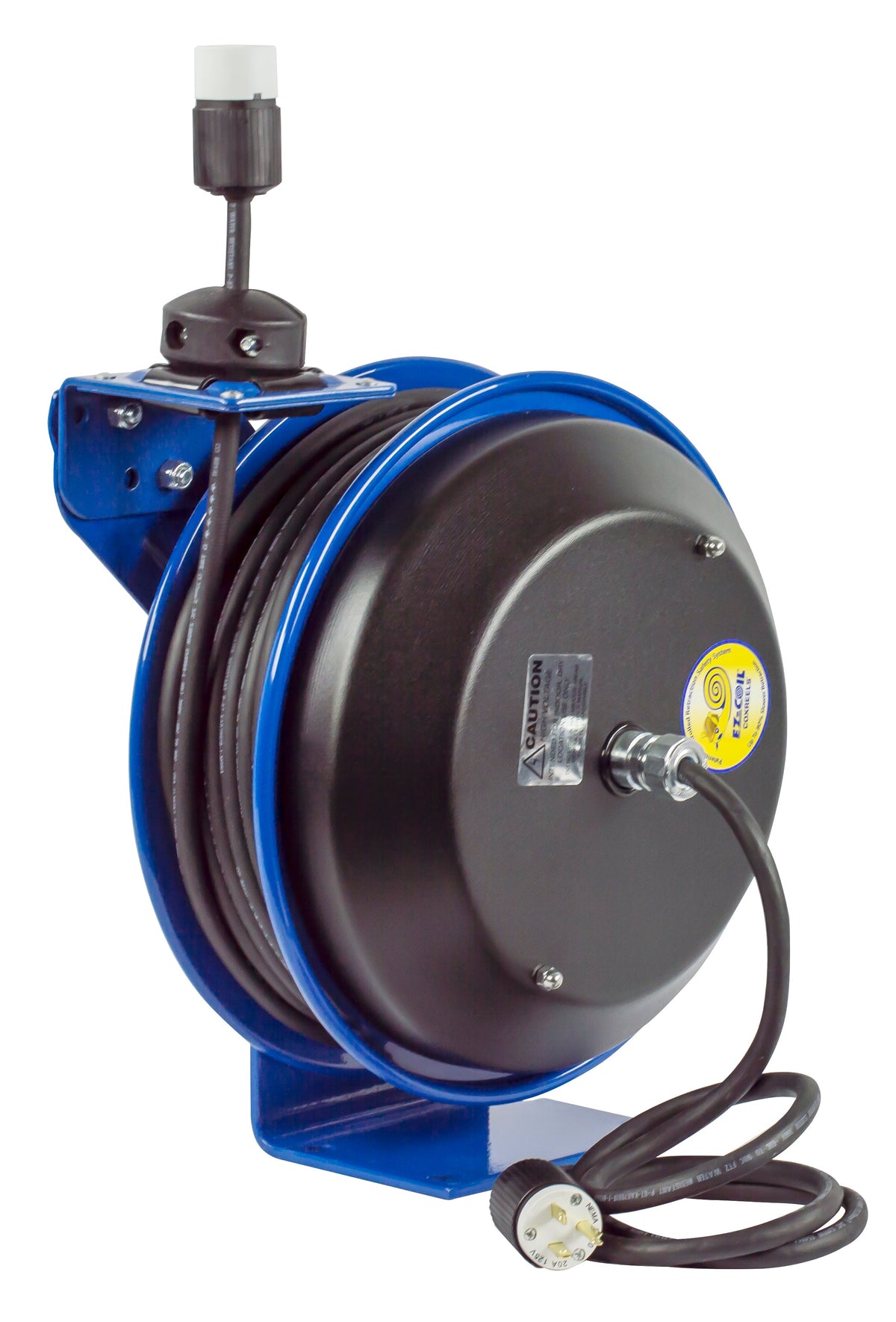

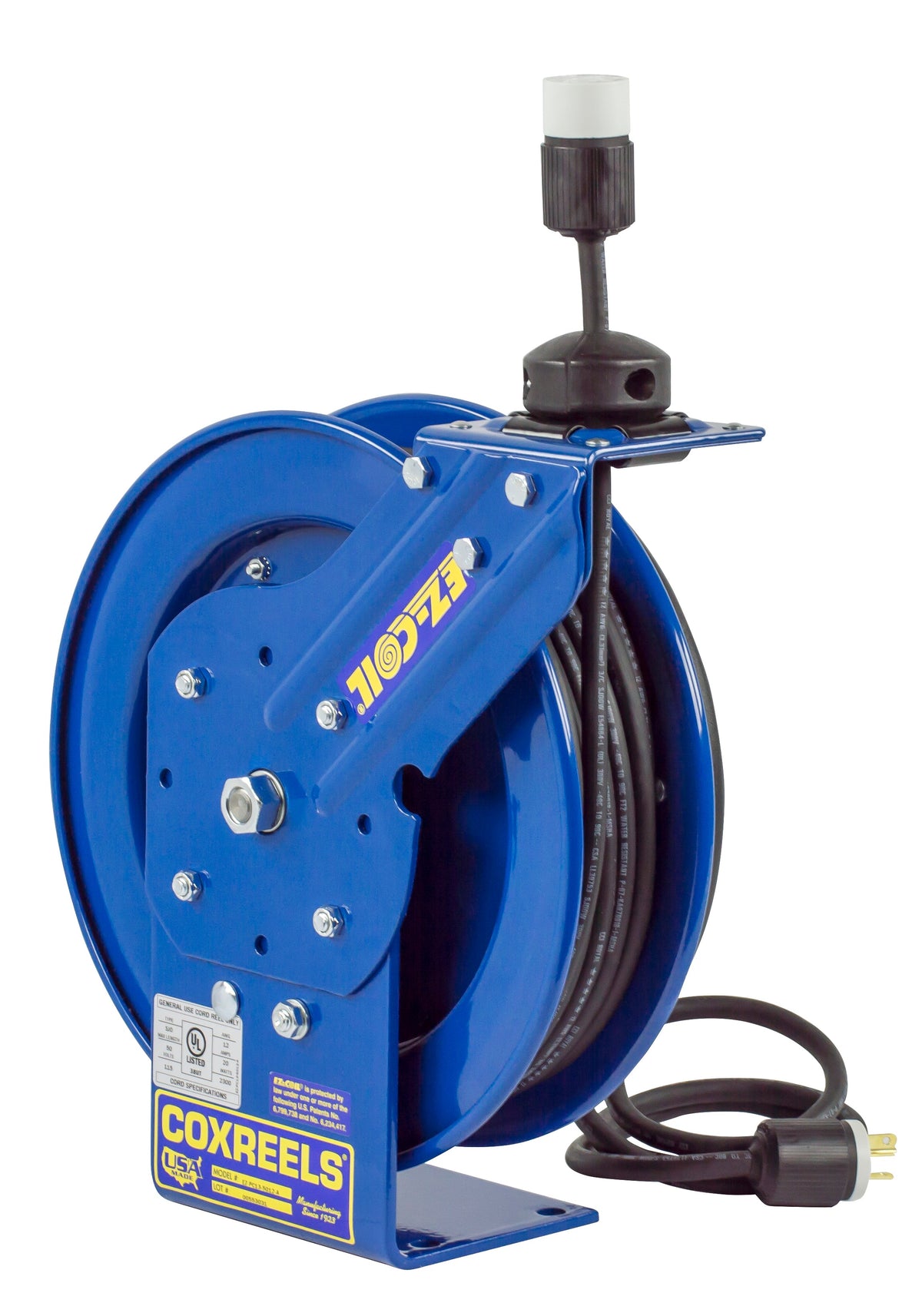

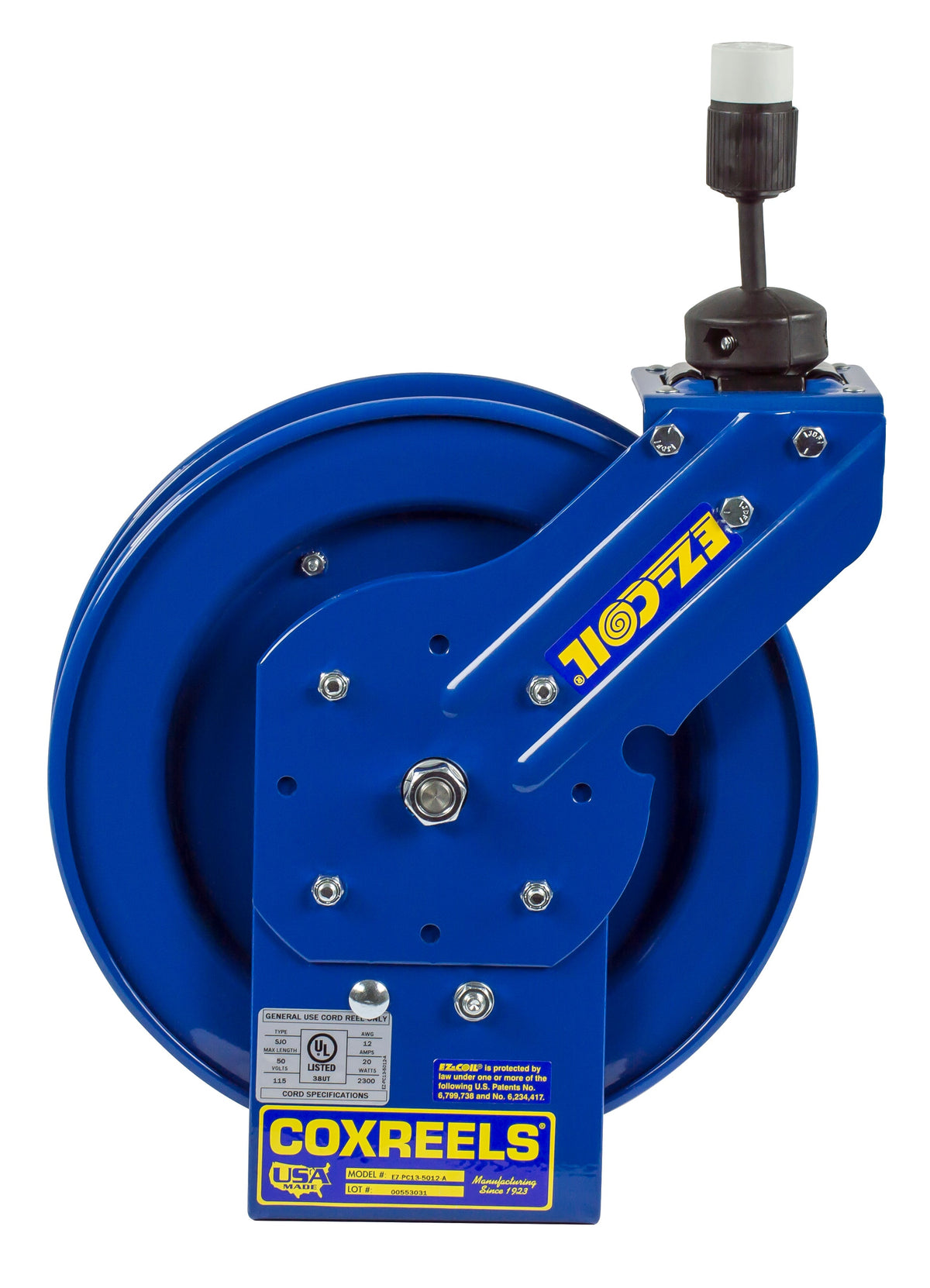

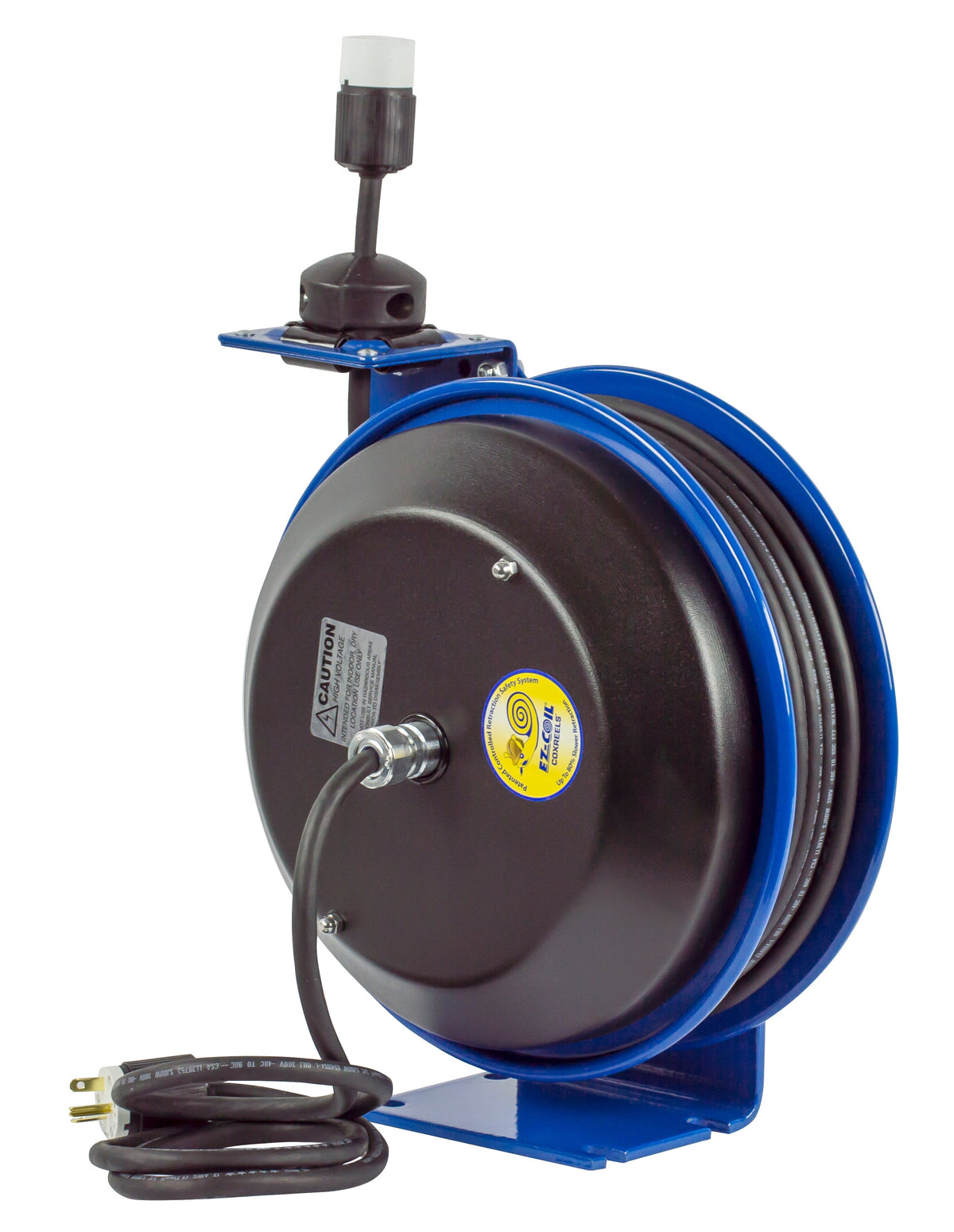

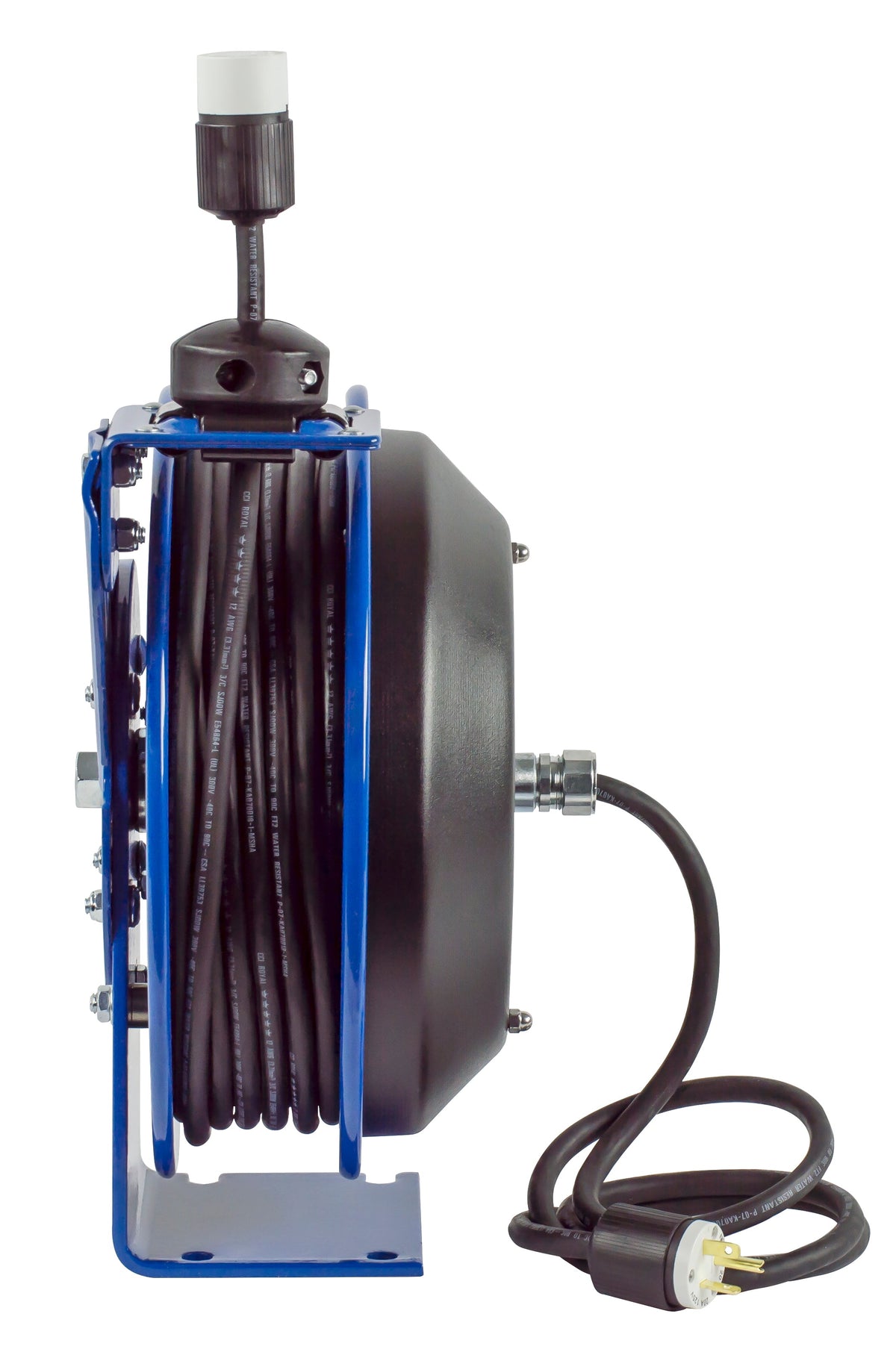

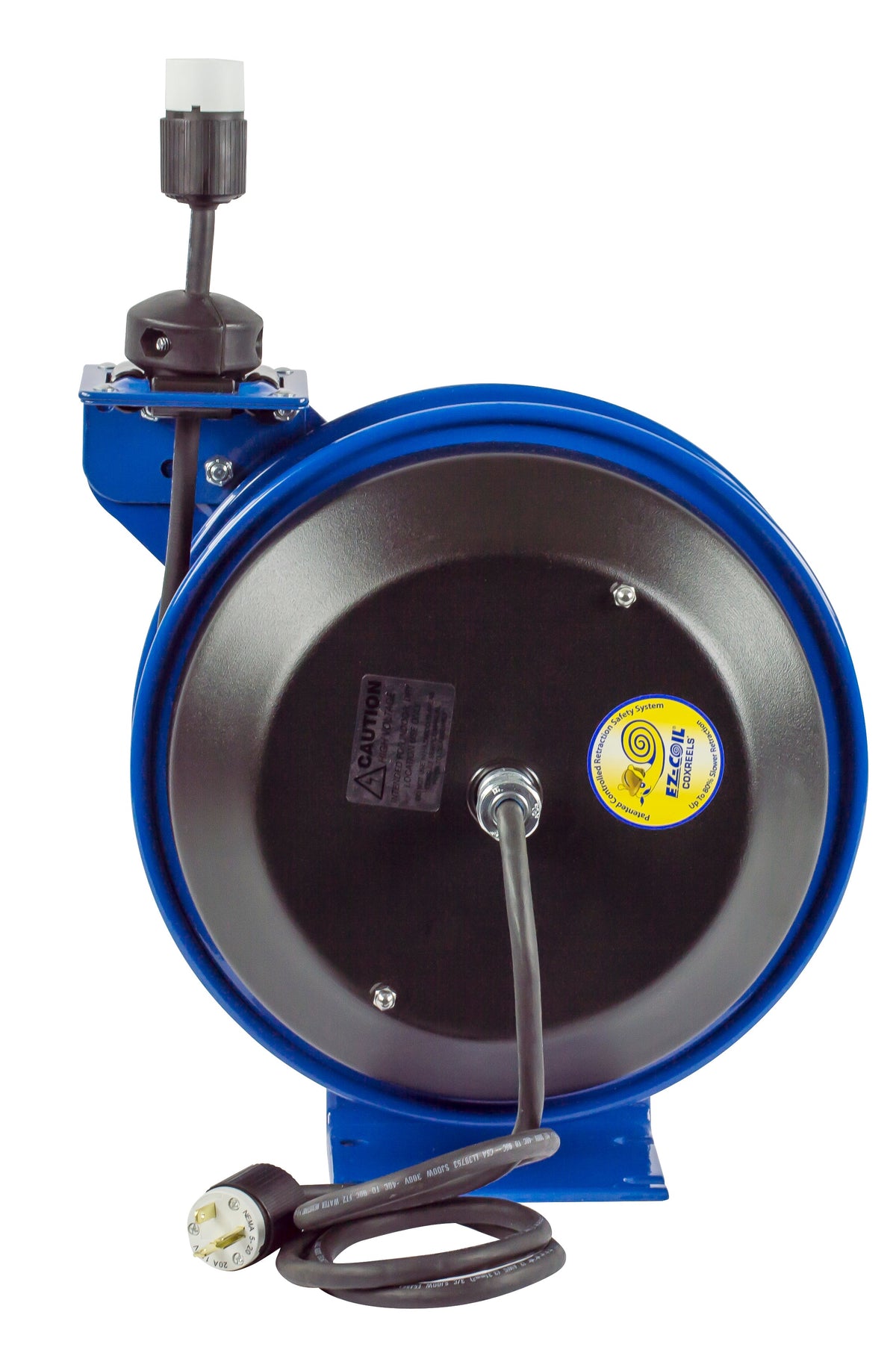

EZ-PC13-5012-A by Coxreels | EZ-PC Series | EZ-Coil Safety Spring Driven Power Cord Reel with Single Industrial Receptacle | 12/3 SJO Cord, 13A, 115V | Steel | 50ft Cord Included
Coxreels EZ-PC Series EZ-Coil® Cord Reels
Steel single-pedestal EZ-Coil® spring driven cord reels for electric cord. Made in the U.S.A.
1
What is this product used for?
- Electric Cord
2
What are the key specifications?
Steel, single-pedestal
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
3
What are the main product features?
- Component Cover — External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- EZ-Coil® Equipped — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Cord | Type | Length | Outlet | Amps | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| EZ-PC13-5012-A | 12/3 | SJO | 50 ft | Single Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5012-B | 12/3 | SJO | 50 ft | Quad Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5012-F | 12/3 | SJO | 50 ft | Duplex Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5012-X | 12/3 | SJO | 50 ft | — | 20 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5016-A | 16/3 | SJO | 50 ft | Single Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5016-E | 16/3 | SJO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5016-H | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5016-K | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13-5016-M | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| EZ-PC13L-5012 | 16/3 | SJO | 50 ft | — | 25 | 8.5 × 14.875 × 13.5 |
| EZ-PC13L-5016 | 16/3 | SJO | 50 ft | — | 25 | 8.5 × 14.875 × 13.5 |
| EZ-PC24-0012-A | 12/3 | SJO | 100 ft | Single Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| EZ-PC24-0012-B | 12/3 | SJO | 100 ft | Quad Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| EZ-PC24-0012-F | 12/3 | SJO | 100 ft | Duplex Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| EZ-PC24-0012-X | 12/3 | SJO | 100 ft | — | 20 | 10.25 × 25.5 × 24 |
| EZ-PC24-0016-A | 16/3 | SJO | 100 ft | Single Industrial Receptacle | 13 | 10.25 × 25.5 × 24 |
| EZ-PC24-0016-E | 16/3 | SJO | 100 ft | — | 13 | 10.25 × 25.5 × 24 |
| EZ-PC24L-0012 | 12/3 | SJO | 100 ft | — | 25 | 10.25 × 25.5 × 24 |
| EZ-PC24L-0016 | 16/3 | SJO | 100 ft | — | 25 | 10.25 × 25.5 × 24 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| -BGX | BSP swivel with Nitrile |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
EZ-PC Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing — EZ-PC13
Numbered parts breakdown with replacement part numbers for EZ-PC13 reels.
Exploded Parts Drawing — EZ-PC24
Numbered parts breakdown with replacement part numbers for EZ-PC24 and EZ-PC24L reels.
How is this product sold?
Each.
